D-Link

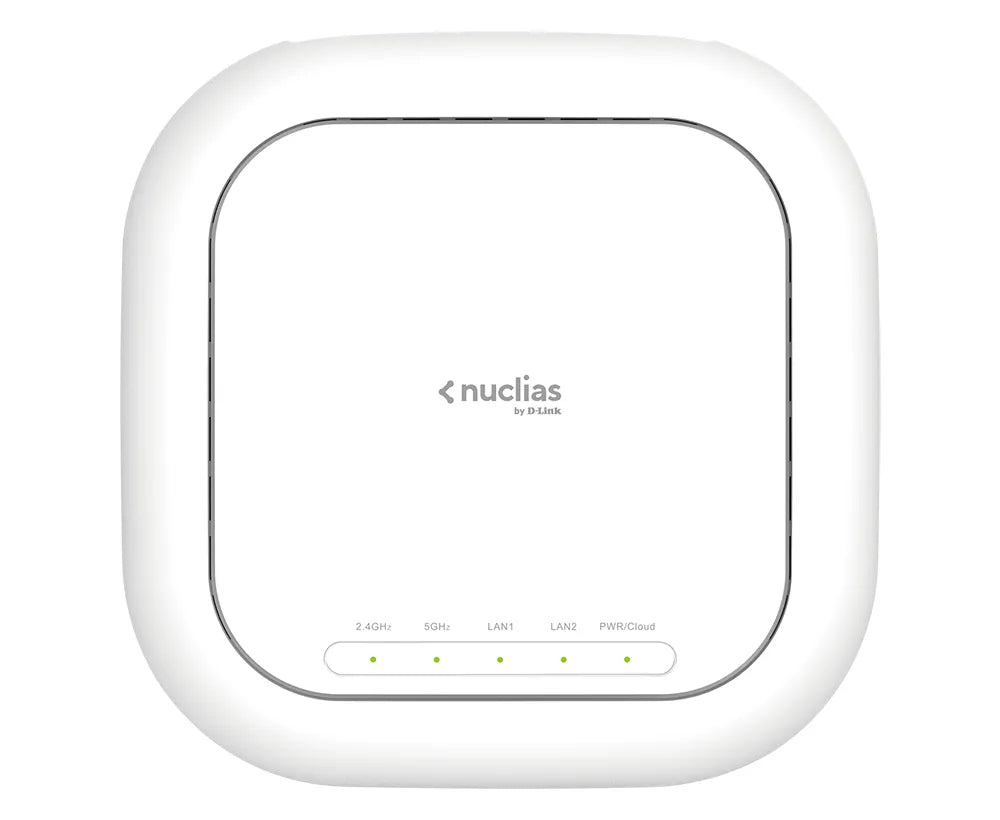

DBA-2520P - D-Link NUCLIAS BUSINESS CLOUD AC1900 WAVE2 ACCESS POINT
DBA-2520P - D-Link NUCLIAS BUSINESS CLOUD AC1900 WAVE2 ACCESS POINT
SKU:DBA-2520P
Regular price
$285.95 USD
Regular price
Sale price
$285.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Cloud Networking, Refreshed The DBA-2520P Access Point (AP) is part of the Nuclias Cloud solution €“ D-Link€™s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of IT infrastructure as simple and hassle-free as possible. Built for Heavy Workloads The DBA-2520P delivers high-speed wireless AC (Wave 2) connection reliably, with maximum wireless signal rates of up to 1.9Gbps, and 3 x 3 MIMO (three spatial streams). Performance is further optimized via the Nuclias Cloud platform which adjusts the DBA-2520P€™s channel selection, transmission power, and maximum number of client connections. Advanced Management & Security The Nuclias Cloud interface gives lets admins easily manage Layer-2 features, such as VLANs and Spanning Tree Protocol (STP). With SSID isolation, MAC address filtering, and end-to-end encryption, this is a versatile solution for those seeking easy configuration, without added complexities. Full PoE Support The DBA-2520P Access Point supports Power over Ethernet (IEEE 802.3at standard) for its Gigabit LAN port. Power over Ethernet greatly simplifies the installation of compatible devices such as VoIP phones and IP cameras in remote locations that lack easy access to a power outlet.
Specification:
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 2600 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Flow control support | Yes |
| On/off switch | Yes |
| Transmitting power | 26 dBmW |
| Reset button | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Certification | CE B, FCC B, UL, IC B |
| Maximum data transfer rate | 2600 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Security | |
| Cable lock slot | Yes |
| Number of SSID supported | 16 |
| Security algorithms | WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK |
| MAC address filtering | Yes |
| Certificates | |
| Certification | CE B, FCC B, UL, IC B |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Flow control support | Yes |
| Transmitting power | 26 dBmW |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 2600 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 800 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1733 Mbit/s |
| Protocols | |
| DHCP server | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| Power | |
| Power consumption (max) | 21.65 W |
| Output voltage | 12 V |
| Power supply | 19.2 W |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Design | |
| Placement | Ceiling, Table, Wall |
| On/off switch | Yes |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Certification | CE B, FCC B, UL, IC B |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 4 dBi |
| Antenna direction type | Omni-directional |
| Technical details | |
| Transmitting power | 26 dBmW |
| Reset button | Yes |
| Shipping (inner) case width | 12.3" (31.2 cm) |
| Shipping (inner) case net weight | 15.3 lbs (6.92 kg) |
| Shipping (inner) case length | 16.5" (41.9 cm) |
| Shipping (inner) case height | 12.9" (32.8 cm) |
| Products per shipping (inner) case | 5 pc(s) |
| Products per pallet (sea) | 150 pc(s) |
| Products per pallet (air) | 120 pc(s) |
| Pallet gross width | 47.2" (120 cm) |
| Pallet gross length | 43.3" (110 cm) |
| Pallet height (sea) | 69.9" (177.5 cm) |
| Pallet height (air) | 57" (144.7 cm) |
| Pallet gross weight (sea) | 559.3 lbs (253.7 kg) |
| Pallet gross weight (air) | 455 lbs (206.4 kg) |
| Master (outer) cases per pallet (sea) | 30 pc(s) |
| Master (outer) cases per pallet (air) | 24 pc(s) |
| Shipping (inner) case gross weight | 17.2 lbs (7.79 kg) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Indication | |
| LED indicators | Yes |
| Weight & dimensions | |
| Width | 8.84" (224.5 mm) |
| Depth | 8.81" (223.8 mm) |
| Weight | 28.6 oz (810 g) |
| Height | 1.97" (50 mm) |
| Package width | 11.6" (294 mm) |
| Package depth | 11.5" (291 mm) |
| Package height | 3.7" (94 mm) |
| Package weight | 3.06 lbs (1.39 kg) |
| Packaging data | |
| Package width | 11.6" (294 mm) |
| Package depth | 11.5" (291 mm) |
| Package height | 3.7" (94 mm) |
| Package weight | 3.06 lbs (1.39 kg) |
