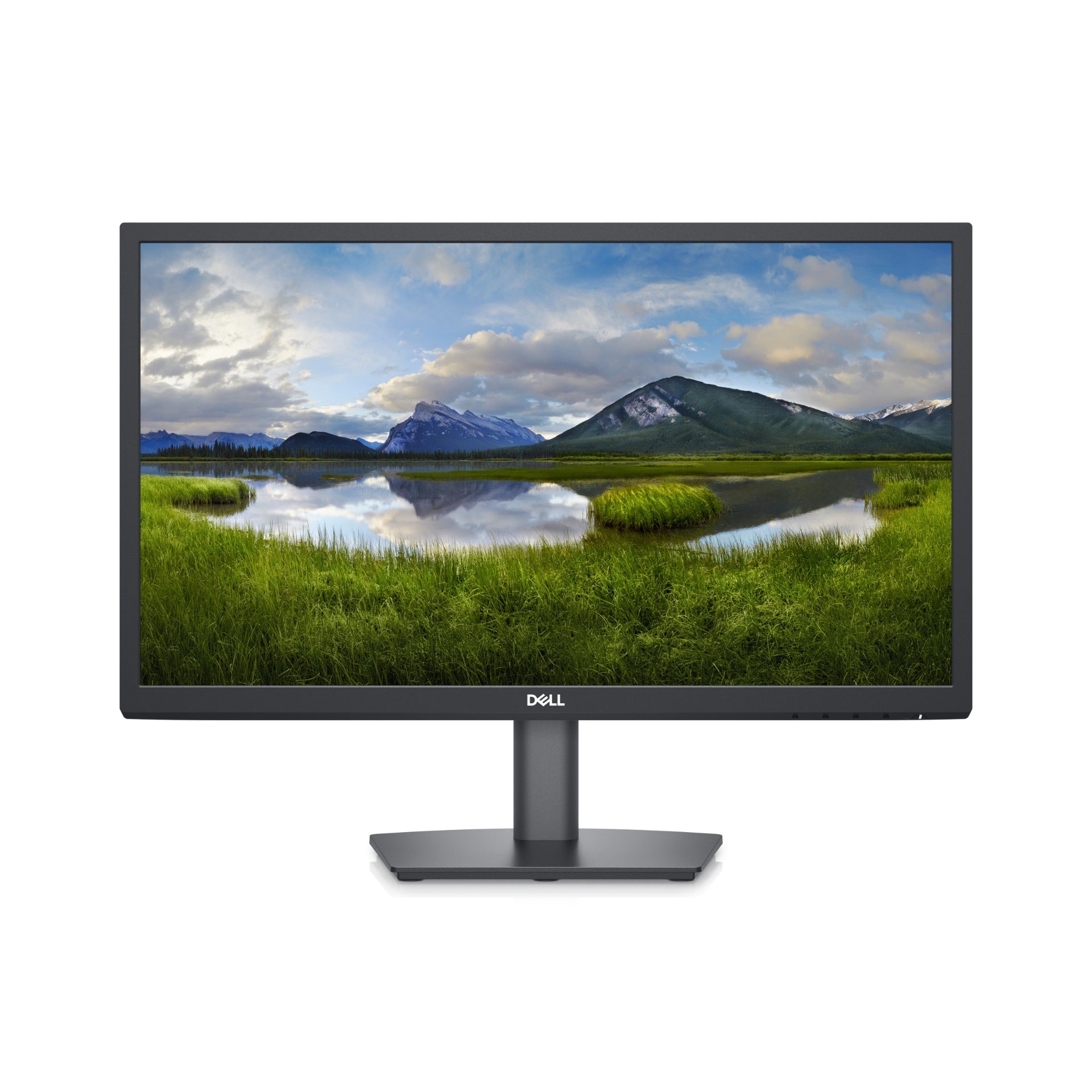

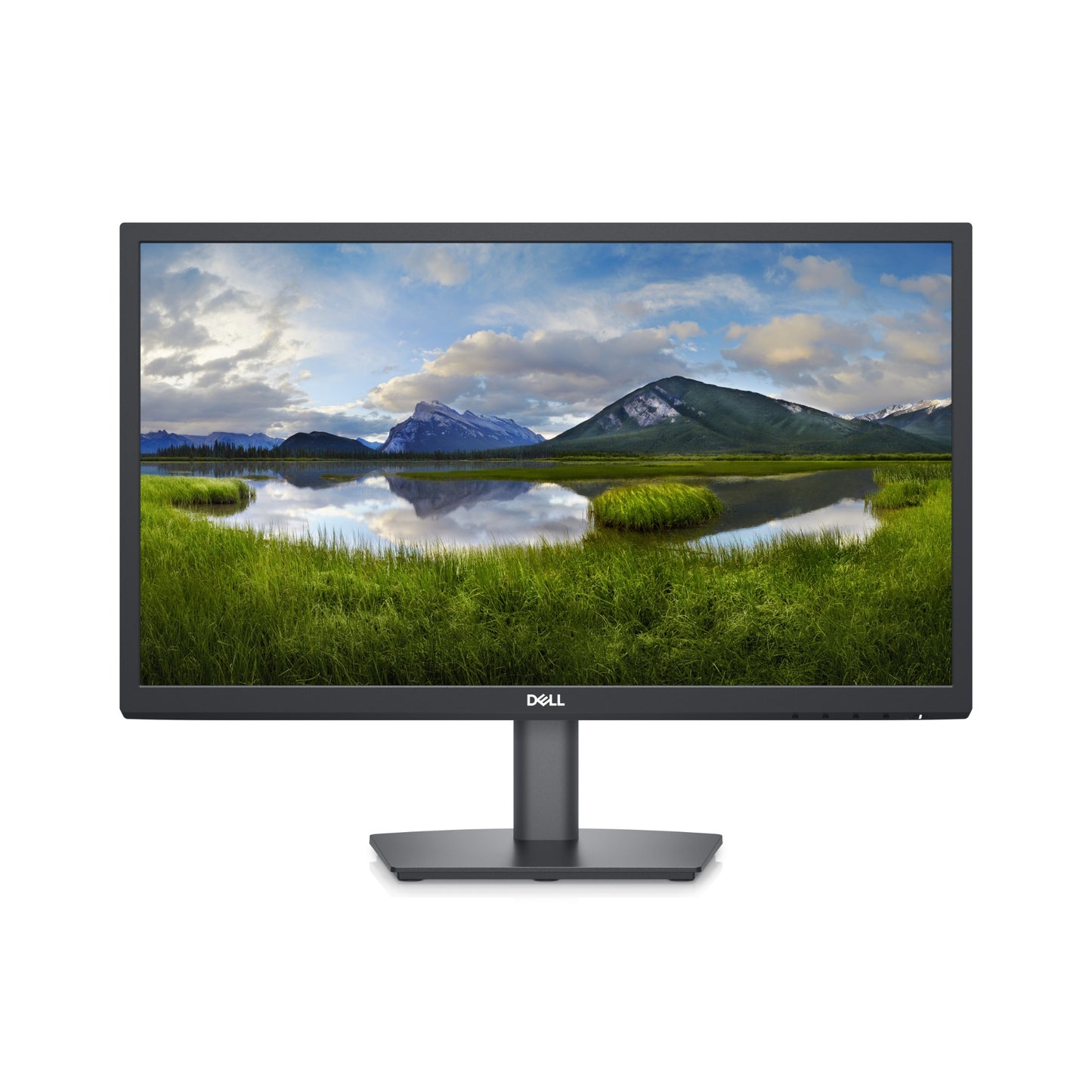

DELL-E2223HV - DELL 22IN MONITOR E2223HV

Get outstanding value with this 21.5-inch FHD monitor featuring a wide viewing angle, VGA connectivity and an eco-conscious design.



Specification:



Display
Display	LCD
Display brightness (typical)	250 cd/m²
Screen shape	Flat
Display number of colours	16.78 million colors
Native aspect ratio	16:9
Pixel density	96 ppi
Colour gamut	85%
Maximum refresh rate	60 Hz
Display surface	Matt
HD type	Full HD
Display technology	LCD
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.0104 x 0.0104" (0.265 x 0.265 mm)
Horizontal scan range	30 - 83 kHz
Vertical scan range	50 - 75 Hz
Viewable size, horizontal	20" (50.9 cm)
Viewable size, vertical	11.3" (28.6 cm)
Viewable size diagonal	23" (58.4 cm)
3D	No
Supported graphics resolutions	1920 x 1080 (HD 1080)
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Backlight type	LED
Display resolution	1920 x 1080 pixels
Response time	8 ms
Display diagonal	23"
Response time (fast)	5 ms
Touchscreen	No
Panel type	IPS
Audio
Built-in speaker(s)	No
Performance
Built-in speaker(s)	No
Built-in camera	No
AMD FreeSync	No
NVIDIA G-SYNC	No
Management features
On Screen Display (OSD)	Yes
Plug and Play	Yes
Multimedia
Built-in speaker(s)	No
Built-in camera	No
TV tuner integrated	No
Design
Market positioning	Business
Feet colour	Black
Certification	TCO
Product colour	Black
Camera
Built-in camera	No
Ports & interfaces
Built-in USB hub	No
Headphone out	No
DVI port	No
VGA (D-Sub) ports quantity	1
DisplayPorts quantity	1
Audio input	No
HDMI	No
AC (power) in	Yes
DisplayPort version	1.2
TV tuner
TV tuner integrated	No
Technical details
Height (without stand)	12.7" (32.2 cm)
Depth (without stand)	2.1" (5.34 cm)
Width (without stand)	21.5" (54.5 cm)
Feet colour	Black
User Guide on CD-ROM	Yes
Cable lock slot	Yes
On/off switch	Yes
HDMI	No
Product colour	Black
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Weight (with stand)	8.58 lbs (3.89 kg)
Touchscreen	No
Ergonomics
VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
Tilt angle range	-5 - 21°
On Screen Display (OSD)	Yes
Plug and Play	Yes
Height adjustment	No
Cable lock slot type	Kensington
Tilt adjustment	Yes
On/off switch	Yes
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	20 W
Power consumption (standby)	0.3 W
Power consumption (typical)	12.9 W
Power consumption (off)	0.2 W
Power consumption (PowerSave)	16 W
Input current	1 A
Energy efficiency scale	A to G
Energy efficiency class (SDR)	D
Energy consumption (SDR) per 1000 hours	13 kWh
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	5 - 90%
Operating altitude	0 - 196850.4" (0 - 5000 m)
Non-operating altitude	0 - 479960.6" (0 - 12191 m)
Packaging content
Stand included	Yes
Quick start guide	Yes
Cables included	AC, DisplayPort, VGA
User Guide on CD-ROM	Yes
Weight & dimensions
Height (without stand)	12.7" (32.2 cm)
Depth (without stand)	2.1" (5.34 cm)
Width (without stand)	21.5" (54.5 cm)
Width (with stand)	21.4" (544.8 mm)
Depth (with stand)	7.09" (180 mm)
Height (with stand)	16.3" (415 mm)
Bezel width (side)	0.701" (1.78 cm)
Bezel width (top)	0.701" (1.78 cm)
Bezel width (bottom)	0.701" (1.78 cm)
Weight (with stand)	8.58 lbs (3.89 kg)
Weight (without stand)	6.99 lbs (3.17 kg)
Package width	14.6" (372.1 mm)
Package depth	23.4" (595.1 mm)
Package height	5.16" (131.1 mm)
Package weight	12.1 lbs (5.47 kg)
Packaging data
User Guide on CD-ROM	Yes
Package width	14.6" (372.1 mm)
Package depth	23.4" (595.1 mm)
Package height	5.16" (131.1 mm)
Package weight	12.1 lbs (5.47 kg)
Stand included	Yes
Quick start guide	Yes
Cables included	AC, DisplayPort, VGA
Sustainability
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Features
Dell Display Manager (DDM) compatibility	Yes
Other features
Height (without stand)	12.7" (32.2 cm)
Depth (without stand)	2.1" (5.34 cm)
Width (without stand)	21.5" (54.5 cm)
Power consumption (max)	20 W
Quick start guide	Yes
HDMI	No
Energy efficiency scale	A to G
Display	LCD
On/off switch	Yes
TV tuner integrated	No
Touchscreen	No
Brand-specific features
Dell Display Manager (DDM) compatibility	Yes
Thin Client
Thin client installed	No
Certificates
Certification	TCO
