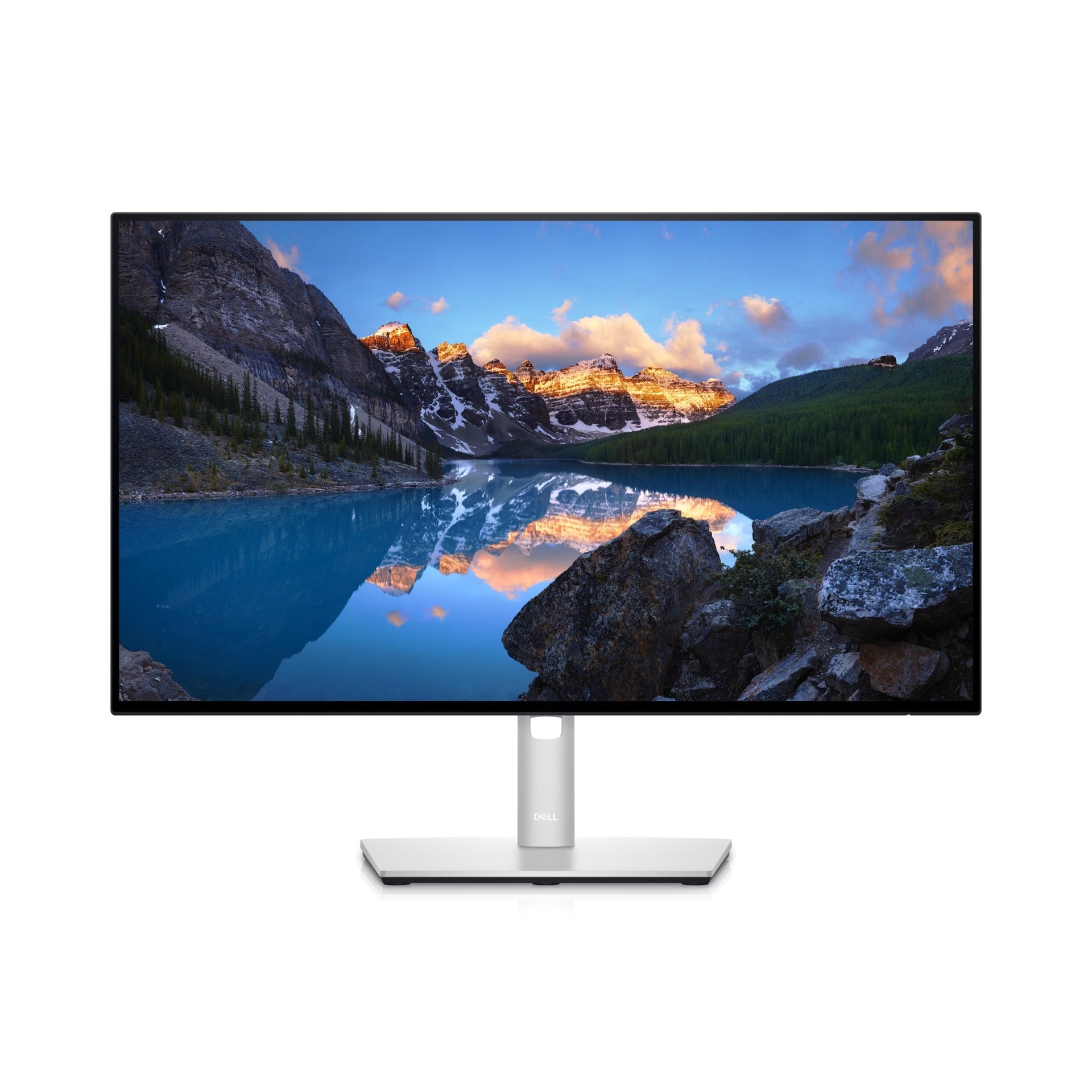

DELL-U2422HE - DELL ULTRASHARP 24IN USB-C HUB

Take your work to new heights with this 23.8-inch FHD monitor featuring brilliant color coverage, ComfortView Plus, USB-C and Ethernet connectivity.



Specification:



Audio
Built-in speaker(s)	No
Performance
Built-in speaker(s)	No
Built-in camera	No
AMD FreeSync	No
NVIDIA G-SYNC	No
Flicker-free technology	Yes
Daisy chain	Yes
Display
Display brightness (typical)	350 cd/m²
Screen shape	Flat
Display number of colours	16.78 million colors
Native aspect ratio	16:9
Pixel density	117.5 ppi
Maximum refresh rate	60 Hz
sRGB coverage (typical)	99%
HD type	Quad HD
Display technology	LCD
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.00850 x 0.00850" (0.216 x 0.216 mm)
Viewable size, horizontal	21.8" (55.3 cm)
Viewable size, vertical	12.2" (31.1 cm)
3D	No
Supported graphics resolutions	2560 x 1440
Backlight type	W-LED
Display resolution	2560 x 1440 pixels
Response time	8 ms
Display diagonal	25"
Response time (fast)	5 ms
Touchscreen	No
High Dynamic Range (HDR) supported	No
Panel type	IPS
RGB colour space	sRGB
DCI-P3 coverage	95%
Management features
Picture-in-Picture	Yes
Multimedia
Built-in speaker(s)	No
Built-in camera	No
TV tuner integrated	No
Design
Market positioning	Graphics design
Feet colour	Black
Product colour	Black
Front bezel colour	Black
Camera
Built-in camera	No
Ports & interfaces
Built-in USB hub	Yes
USB upstream port type	USB Type-C
USB Type-A downstream ports quantity	3
USB Type-C downstream ports quantity	2
Headphone out	No
DVI port	No
HDMI ports quantity	1
DisplayPorts quantity	2
Audio input	No
Audio output	Yes
HDMI	Yes
HDMI version	2.0
DisplayPort version	1.4
USB Type-C DisplayPort Alternate Mode	Yes
Wi-Fi	No
TV tuner
TV tuner integrated	No
Technical details
Height (without stand)	13.1" (33.2 cm)
Depth (without stand)	1.96" (4.99 cm)
Width (without stand)	22.4" (56.8 cm)
Feet colour	Black
Cable lock slot	Yes
On/off switch	Yes
HDMI	Yes
Product colour	Black
Front bezel colour	Black
Sustainability certificates	RoHS, ENERGY STAR
Power supply type	Internal
Weight (with stand)	14.1 lbs (6.4 kg)
Touchscreen	No
Network
Wi-Fi	No
Ergonomics
VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
Swivelling	Yes
Swivel angle range	-45 - 45°
Tilt angle range	-5 - 21°
Height adjustment	5.12" (13 cm)
Pivot	Yes
Pivot angle	-90 - 90°
Picture-in-Picture	Yes
Height adjustment	Yes
Tilt adjustment	Yes
On/off switch	Yes
Picture-by-Picture (PbP)	Yes
Power
Power supply type	Internal
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	200 W
Power consumption (standby)	0.2 W
Power consumption (typical)	22 W
Power consumption (off)	0.2 W
Input current	2.5 A
Energy efficiency scale	A to G
Energy efficiency class (SDR)	F
Energy efficiency class (HDR)	E
Energy consumption (SDR) per 1000 hours	22 kWh
Energy consumption (HDR) per 1000 hours	16 kWh
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	5 - 90%
Operating altitude	0 - 196850.4" (0 - 5000 m)
Non-operating altitude	0 - 480000" (0 - 12192 m)
Packaging content
Stand included	Yes
Cables included	AC, DisplayPort, USB Type-C, USB Type-C to USB Type-A
AC adapter included	Yes
Weight & dimensions
Height (without stand)	13.1" (33.2 cm)
Depth (without stand)	1.96" (4.99 cm)
Width (without stand)	22.4" (56.8 cm)
Width (with stand)	22.4" (567.7 mm)
Depth (with stand)	7.28" (185 mm)
Height (with stand)	15.1" (382.9 mm)
Weight (with stand)	14.1 lbs (6.4 kg)
Weight (without stand)	9.26 lbs (4.2 kg)
Package width	6.69" (169.9 mm)
Package depth	25.2" (640.1 mm)
Package height	16.2" (412 mm)
Package weight	19.4 lbs (8.8 kg)
Packaging data
Package width	6.69" (169.9 mm)
Package depth	25.2" (640.1 mm)
Package height	16.2" (412 mm)
Package weight	19.4 lbs (8.8 kg)
Stand included	Yes
AC adapter included	Yes
Cables included	AC, DisplayPort, USB Type-C, USB Type-C to USB Type-A
Sustainability
Sustainability certificates	RoHS, ENERGY STAR
Logistics data
Harmonized System (HS) code	85285210
Other features
Height (without stand)	13.1" (33.2 cm)
Depth (without stand)	1.96" (4.99 cm)
Width (without stand)	22.4" (56.8 cm)
Power consumption (max)	200 W
HDMI	Yes
Energy efficiency scale	A to G
USB Type-C DisplayPort Alternate Mode	Yes
Power supply type	Internal
AC adapter included	Yes
On/off switch	Yes
TV tuner integrated	No
Touchscreen	No
Picture-by-Picture (PbP)	Yes
Daisy chain	Yes
DCI-P3 coverage	95%
Front bezel colour	Black
