Description

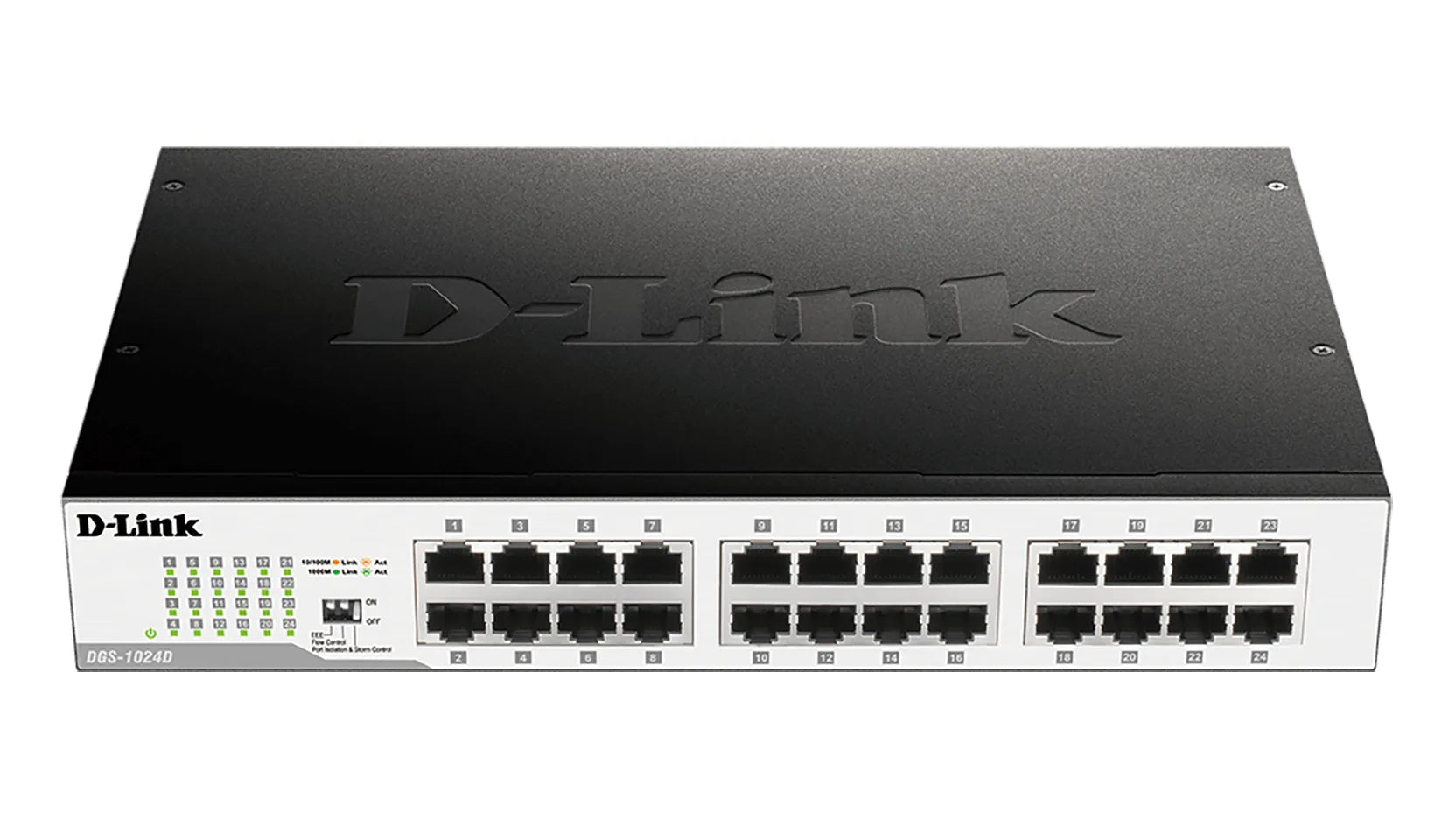

The D-Link DGS-1024D 24-Port Unmanaged Gigabit Switch series offer an economical way for SOHO and Small-to-Medium Businesses (SMB) to take advantage of Gigabit Ethernet speeds while reducing energy consumption and minimising noise output.
Gigabit Connectivity
The DGS-1024D switches bring the speed of Gigabit Ethernet to all ports for a truly high-speed network. If your network has a mix of legacy and modern connection interfaces, each port allows for standard Ethernet, Fast Ethernet, or Gigabit Ethernet connections. You have the latest technology available to every computer and device connected to your network.
Improved Network Efficiency
The DGS-1024D switches incorporate several advanced features to help simplify and improve network management and efficiency. Flow Control throttles connections to ensure reliability during heavy usage periods by reducing packet loss and wasteful data re-transmission. In addition, Storm Control and Port Isolation mitigate the effects of broadcast storms caused by rogue software and malware, which can propagate across the network and bring communication to a standstill.
Innovative Design
The DGS-1024D feature a durable, compact metal case alongside a fanless design allowing for improved heat dissipation while maintaining silent operation. The 24-Port Gigabit Unmanaged Switch series is small, lightweight, wall-mountable, and is ideal for any business with demanding requirements and a small budget.
Green Technology
The 24-Port Gigabit Unmanaged Switch series helps you conserve energy automatically through several methods. Link status detection automatically powers down ports that have no link, allowing the switches to save substantial amounts of power by cutting power usage for unused ports or any ports connected to computers that have been shut down.
Meanwhile, Energy-Efficient Ethernet (EEE) conserves energy by dynamically reducing power consumption when data activity is low. These environmentally friendly switches are also RoHS compliant, use recyclable packaging, and minimise the use of harmful substances. These green features combined, provide more energy savings and a longer product life, without sacrificing operational performance or functionality.
Gigabit Connectivity
The DGS-1024D switches bring the speed of Gigabit Ethernet to all ports for a truly high-speed network. If your network has a mix of legacy and modern connection interfaces, each port allows for standard Ethernet, Fast Ethernet, or Gigabit Ethernet connections. You have the latest technology available to every computer and device connected to your network.
Improved Network Efficiency
The DGS-1024D switches incorporate several advanced features to help simplify and improve network management and efficiency. Flow Control throttles connections to ensure reliability during heavy usage periods by reducing packet loss and wasteful data re-transmission. In addition, Storm Control and Port Isolation mitigate the effects of broadcast storms caused by rogue software and malware, which can propagate across the network and bring communication to a standstill.
Innovative Design
The DGS-1024D feature a durable, compact metal case alongside a fanless design allowing for improved heat dissipation while maintaining silent operation. The 24-Port Gigabit Unmanaged Switch series is small, lightweight, wall-mountable, and is ideal for any business with demanding requirements and a small budget.
Green Technology
The 24-Port Gigabit Unmanaged Switch series helps you conserve energy automatically through several methods. Link status detection automatically powers down ports that have no link, allowing the switches to save substantial amounts of power by cutting power usage for unused ports or any ports connected to computers that have been shut down.
Meanwhile, Energy-Efficient Ethernet (EEE) conserves energy by dynamically reducing power consumption when data activity is low. These environmentally friendly switches are also RoHS compliant, use recyclable packaging, and minimise the use of harmful substances. These green features combined, provide more energy savings and a longer product life, without sacrificing operational performance or functionality.
Specification:
| Technical details | |
|---|---|
| Product colour | Black, Gray |
| Mean time between failures (MTBF) | 205975 h |
| Rack mounting | Yes |
| Shipping (inner) case width | 8.07" (20.5 cm) |
| Shipping (inner) case net weight | 18.5 lbs (8.39 kg) |
| Shipping (inner) case length | 20.5" (52 cm) |
| Shipping (inner) case height | 16.1" (41 cm) |
| Products per shipping (inner) case | 2 pc(s) |
| Products per pallet (sea) | 80 pc(s) |
| Products per pallet (air) | 60 pc(s) |
| Pallet gross width | 47.2" (120 cm) |
| Pallet gross length | 43.3" (110 cm) |
| Pallet height (sea) | 69.9" (177.5 cm) |
| Pallet height (air) | 53.7" (136.5 cm) |
| Pallet gross weight (sea) | 815.3 lbs (369.8 kg) |
| Pallet gross weight (air) | 621.3 lbs (281.8 kg) |
| Master (outer) cases per pallet (sea) | 40 pc(s) |
| Master (outer) cases per pallet (air) | 30 pc(s) |
| Shipping (inner) case gross weight | 19.4 lbs (8.79 kg) |
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 1 |
| Combo SFP ports quantity | 2 |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Auto MDI/MDI-X | Yes |
| Data transmission | |
| Throughput | 38.69 Mpps |
| MAC address table | 8192 entries |
| Switching capacity | 52 Gbit/s |
| Store-and-forward | Yes |
| Certificates | |
| Safety | UL/CSA 60950-1, EN 60950-1, IEC 60950-1 |
| Certification | FCC Class A CE CCC RoHS VCCI BSMI RCM |
| Design | |
| Safety | UL/CSA 60950-1, EN 60950-1, IEC 60950-1 |
| Product colour | Black, Gray |
| LED indicators | Activity, Link, PoE, Power, Power fail, Speed |
| Certification | FCC Class A CE CCC RoHS VCCI BSMI RCM |
| Rack mounting | Yes |
| Number of fans | 2 fan(s) |
| Performance | |
| Buffer size | 512 KB |
| Mean time between failures (MTBF) | 205975 h |
| Harmonized System (HS) code | 85176990 |
| Indication | |
| LED indicators | Activity, Link, PoE, Power, Power fail, Speed |
| Power | |
| Power consumption (max) | 444.1 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 1515 BTU/h |
| Weight & dimensions | |
| Width | 17.3" (440 mm) |
| Depth | 9.86" (250.4 mm) |
| Height | 1.73" (44 mm) |
| Weight | 6.83 lbs (3.1 kg) |
| Packaging data | |
| Package width | 15.3" (388 mm) |
| Package depth | 19.9" (506 mm) |
| Package height | 3.54" (90 mm) |
| Package weight | 8.16 lbs (3.7 kg) |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
