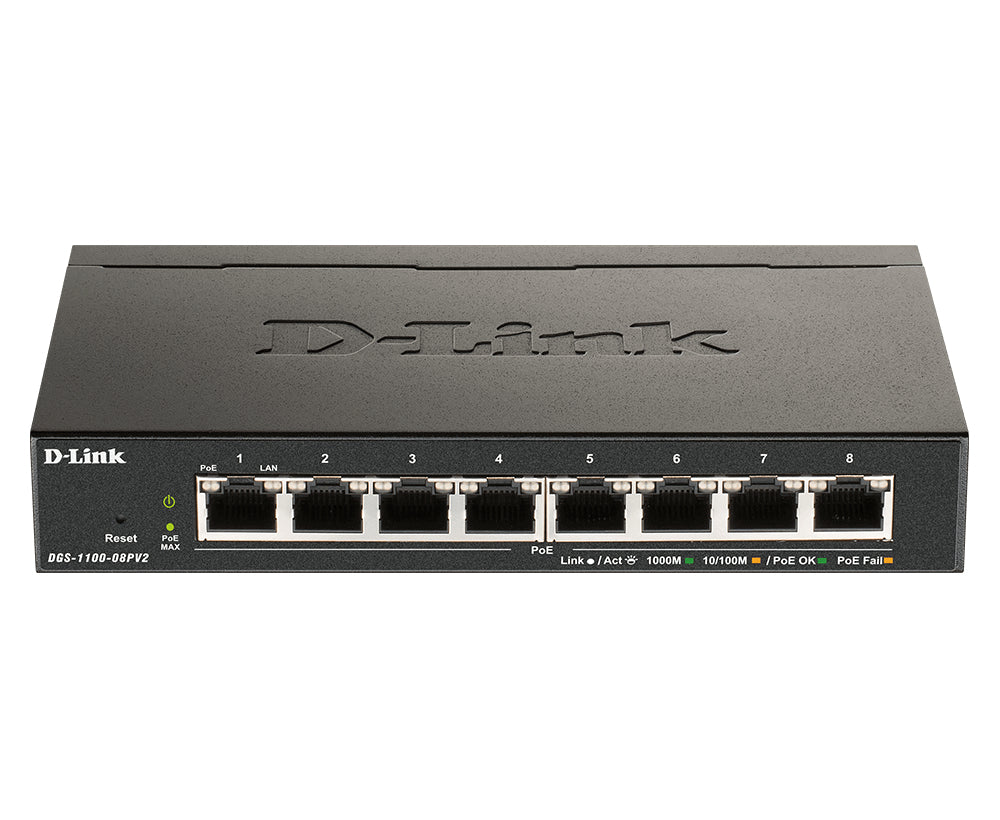

DGS-1100-08PV2 - D-Link DGS-1100 SERIES 8 PORT GIGABIT

Powerful and flexible networking solution for small, medium, and enterprise businesses. Simple. Easy. Smart WebUI Web UI Easy to use web interface to access management features. Static Routing VLANs Segment your network into VLANs. Surveillance mode Surveillance Mode Interface Get a snapshot of your security topology in an instant. Advanced Security Features The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation (desktop models utilize Static Trunk). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities. Simplify Network Management D-Link’s free Network Assistant (DNA) utility displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Full PoE Support The DGS-1100-08PV2 supports IEEE 802.3af/at Power over Ethernet on all eight copper access ports. Power over Ethernet greatly simplifies the installation of PoE-enabled devices such as VoIP phones and IP cameras in remote locations with no immediate access to a power outlet. Each individual port has capacity to support up to 30W of PoE power, while the switch has an overall budget of 64W. Easy Troubleshooting The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors. Green Technology D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. The desktop models in the series utilize a fanless design, for silent and energy-efficient operation. All models are also IEEE 802.3az-compliant and feature Link Status detection.



Specification:



Management features
Reset button	Yes
Switch type	Managed
Switch layer	L2
Ports & interfaces
Copper ethernet cabling technology	1000BASE-T
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Performance
Packet buffer memory	0.187 MB
Harmonized System (HS) code	85176990
Fanless	Yes
Technical details
Product colour	Black
Rack mounting	No
Network
Copper ethernet cabling technology	1000BASE-T
Auto MDI/MDI-X	Yes
Data transmission
Packet buffer memory	0.187 MB
Switching capacity	16 Gbit/s
Forwarding rate	11.9 Mpps
Memory
Packet buffer memory	0.187 MB
Design
Reset button	Yes
Product colour	Black
Rack mounting	No
Power
Power consumption (max)	4.94 W
AC input voltage	100 - 240 V
Input current	1 A
DC input voltage	5 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Operating altitude	0 - 78740.2" (0 - 2000 m)
Weight & dimensions
Width	5.71" (145 mm)
Depth	1.1" (28 mm)
Height	3.23" (82 mm)
Weight	12 oz (340 g)
