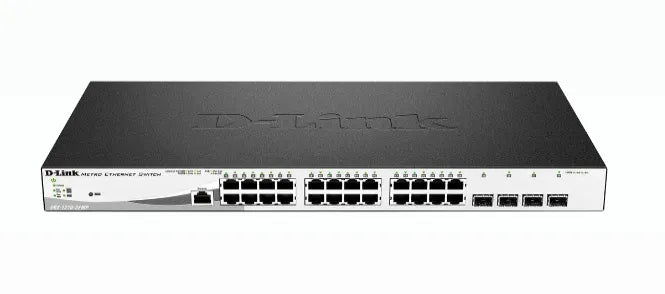

DGS-1210-28MP - D-Link 24-PORT GIGABIT SMART MANAGED POE SWITCH WITH 4 GIGABIT RJ45/SFP COMBO PORTS, 37

The DGS-1210 Series Gigabit Smart Managed Switches is the latest generation of D-Link Smart Managed Switches featuring D-Link Green 3.0 technology. The series offers a high level of energy saving and efficiency, as it also complies with the IEEE 802.3az Energy Efficient Ethernet standard. Support for IPv6 management and configurations ensures your network remains protected after the upgrade from IPv4 to IPv6. By offering multiple management options, the Smart Managed Switches allows quick deployment, infrastructure expansion, and seamless function upgrades. Built for small and medium-sized businesses, the DGS-1210 Series Smart Managed Switches provide functionality, security, and manageability for a fraction of the standard cost of ownership. The DGS-1210 Series Gigabit Smart Managed Switches includes a range of affordable PoE-enable switches for businesses looking to power VoIP phones, wireless access points or network cameras. The DGS-1210-08P is a 8-port Smart Managed PoE Switch that provides 8 PoE-enabled ports that can supply power of up to 15.4 W each. Whereas the DGS-1210-24P is a 24-port Smart Managed PoE Switch that provides 12 PoE-enabled ports that can support up to 30 W of power output following IEEE 802.3at standard. The design allows more flexibility in power allocation for a variety of powered devices with affordable installation costs. Easy Management The D-Link DGS-1210 Series is designed for easy management. All configurations can be made through a Web interface regardless of the host PC€™s operating system. Furthermore, the web UI contains ten language options to make operations more straightforward. During the first installation, the D-Link Network Assistant will automatically discover all D-Link Smart Managed Switches in the network, allowing administrators to assign IP addresses and the subnet mask quickly. It also allows simultaneous firmware upgrades to multiple switches, saving a great deal of time. The D-Link Network Assistant1€™s important management commands, such as downloading firmware or a configuration file, offer a sophisticated method of batch operations for multiple switches. Energy Saving DGS-1210 Series are capable of conserving power without sacrificing operational performance or functionality by using D-Link Green 3.0 technology. Using the Energy Efficient Ethernet standard, the network will automatically decrease the power usage when traffic is low with no setup required. For environments not fully supporting the standard, DGS-1210 switches offer advanced power-saving settings including port shutoff and standby, LED shutoff, and system hibernation based on custom scheduling profiles. The profiles can also be applied to the PoE switch so that there is no unnecessary power consumption during off hours. The DGS-1210 Series switches can also detect the length of connected cables to automatically reduce power usage on shorter cable connections. Auto Surveillance VLAN and Voice VLAN The process of setting up IP surveillance and VoIP on a network is automated and cannot be easier. Auto Surveillance VLAN (ASV) consolidates data and surveillance video transmission through the network, sparing businesses the expense of maintaining dedicated facilities. ASV also protects the quality of real-time video by grouping IP surveillance devices on a single high priority VLAN. This ensures that surveillance video streams will not be affected when ordinary data traffic is at their highest levels. Similarly, the Auto Voice VLAN guarantees clear audio quality and efficient transmission for all voice communication. Exclusive Layer 2 Features Equipped with a complete line-up of L2 features, the DGS-1210 Series switches include IGMP Snooping, Port Mirroring, Spanning Tree, and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. At 2000 Mbps Full Duplex, the Gigabit ports provide high-speed data pipes to servers with minimum data transfer loss. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostic feature is designed primarily for administrators and customer service representatives, and can rapidly discover the type of error and determine the cable quality. Secure your Network D-Link€™s innovative Safeguard Engine protects the switches against traffic flooding caused by virus attacks. The switches also support 802.1X port-based authentication, allowing the network clients to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and protects the network by screening traffic from illegal MAC or IP addresses. ARP Spoofing Prevention prevents malicious intruders from sending massive fake ARP messages through a manipulated source. This protects important data from being stolen by Man-in-the-Middle attacks, and prevents wasting CPU cycles on these packets. For added security, the DHCP Server Screening feature blocks rogue DHCP server packets from user ports to prevent unauthorized IP assignment.



Specification:



Network
IGMP snooping	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Number of VLANs	4094
Link aggregation	Yes
Flow control support	Yes
Virtual LAN features
Number of VLANs	4094
Data transmission
Number of VLANs	4094
MAC address table	16000 entries
Switching capacity	56 Gbit/s
Maximum data transfer rate	1 Gbit/s
Technical details
Form factor	1U
Rack mounting	Yes
Shipping (inner) case width	11.6" (29.5 cm)
Shipping (inner) case net weight	32.6 lbs (14.8 kg)
Shipping (inner) case length	21.2" (53.9 cm)
Shipping (inner) case height	15.5" (39.3 cm)
Products per shipping (inner) case	3 pc(s)
Products per pallet (sea)	120 pc(s)
Products per pallet (air)	72 pc(s)
Pallet gross width	47.2" (120 cm)
Pallet gross length	43.3" (110 cm)
Pallet height (sea)	82.7" (2.1 m)
Pallet height (air)	51.7" (131.4 cm)
Pallet gross weight (sea)	1439.4 lbs (652.9 kg)
Pallet gross weight (air)	885.6 lbs (401.7 kg)
Master (outer) cases per pallet (sea)	40 pc(s)
Master (outer) cases per pallet (air)	24 pc(s)
Shipping (inner) case gross weight	34.6 lbs (15.7 kg)
Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
Switch layer	L2
Ports & interfaces
SFP module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	28
Gigabit Ethernet (copper) ports quantity	24
SFP/SFP+ slots quantity	4
Security
SSH/SSL support	Yes
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP server, DHCP client
Certificates
Certification	FCC Class A CE Class A ICES-003 VCCI Class A C-Tick BSMI
Design
Form factor	1U
Certification	FCC Class A CE Class A ICES-003 VCCI Class A C-Tick BSMI
Rack mounting	Yes
Number of fans	3 fan(s)
Performance
Harmonized System (HS) code	85176990
Power
Power consumption (typical)	238.4 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	-5 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Weight & dimensions
Width	17.3" (440 mm)
Depth	9.84" (250 mm)
Height	1.73" (44 mm)
Weight	8.16 lbs (3.7 kg)
Packaging data
Package width	14.4" (365 mm)
Package depth	20.5" (521 mm)
Package height	3.62" (92 mm)
Package weight	10.9 lbs (4.93 kg)
Logistics data
Harmonized System (HS) code	85176990
