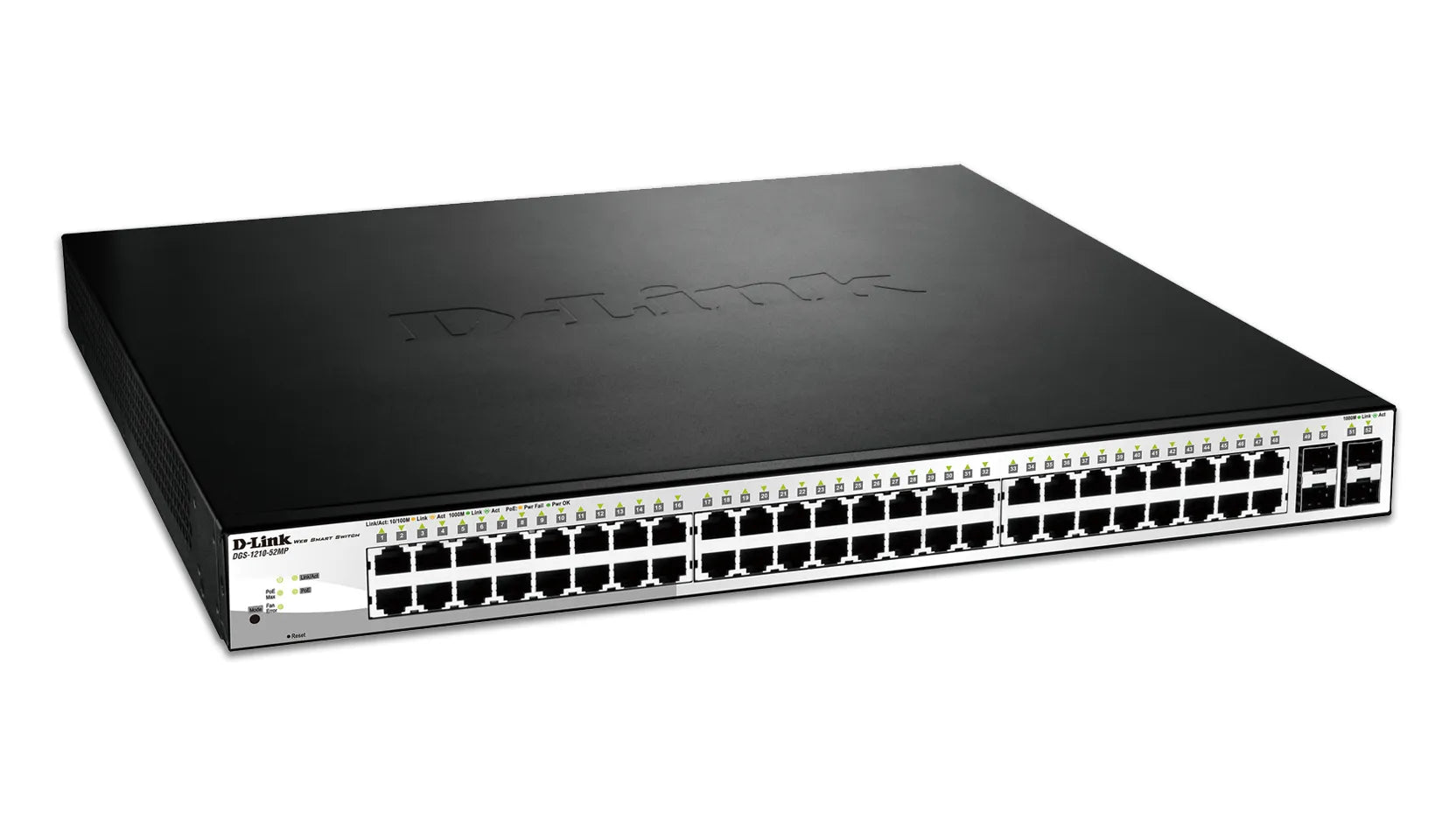

DGS-1210-52MP - D-Link WEBSMART GIGABIT SWITCH. 52-PORT POE SWITCH INCLUDING 4 SFP PORTS. LIMITED WA

Overview The DGS-1210 Series is the latest generation of D-Link Gigabit Web Smart Switches featuring D-Link Green 3.0 technology. The switches comply with the IEEE 802.3az Energy Efficient Ethernet standard. Support for IPv6 management and configuration features ensures your network remains protected after an upgrade from IPv4 to IPv6. By offering multiple management options, these switches allow quick deployment, infrastructure expansion, and seamless upgrades. Targeting small and medium sized businesses, the DGS-1210 Web Smart switches provide functionality, security, and manageability for a fraction of the standard cost of ownership. The DGS-1210 Series switches support 8, 16, 24, or 48 10/100/1000BASE-T ports. In addition, each switch supports 2 or 4 Gigabit SFP ports for optical connections using multimode or singlemode SFP transceivers. PoE Support Several models in the DGS-1210 series family support Power-over-Ethernet capabilities, simplifying deployments with IP cameras, VoIP phones, wireless access points, and other powered devices. These models include the DGS-1210-10P, DGS-1210-28P and DGS-1210-52MP. Using the switch€™s management interface, an administrator can control various PoE functions, such as remotely rebooting cameras or access points, from anywhere on the network, including over the Internet. The switches also support time-based PoE €“ an option that allows administrators to set a time window that determines when each port€™s PoE power is turned on and off. Energy Saving The DGS-1210 Series Switches are capable of conserving power without sacrificing operational performance or functionality by using D-Link Green 3.0 technology. Using the Energy Efficient Ethernet standard, the network will automatically decrease the power usage when traffic is low. For environments not fully supporting the standard, these switches offer advanced powersaving settings including port shutoff and standby, LED shutoff, and system hibernation based on custom time profiles. The time profiles can also be applied to the PoE switches so that unnecessary power consumption can be saved during off hours. The switches can also detect the length of connected cables to automatically reduce power usage on shorter cable connections. Easy Management The D-Link Web Smart Switch series is designed for easy management. All configuration can be performed through an intuitive browser-based Graphical User Interface regardless of the host PC€™s operating system. The DGS-1210 Series switches also support a D-Link Network Assistant Utility that enables administrators to remotely control their network down to the port level. This utility allows customers to easily discover multiple D-Link Web Smart Switches within the same L2 network segment. With this utility, users do not need to change the IP address of their PC. It also simplifies the initial setup by taking switches, within the same L2 network segment, that are connected to the user€™s PC, and displaying them on screen for instant access. This allows extensive switch configuration and basic setup of discovered devices, including password changes and firmware upgrades. In addition, the DGS-1210 Series supports D-View 6.0 and Compact Command Line Interface (CLI) through Telnet. D-View 6.0 is a network management system that allows for the central management of critical network characteristics such as availability, reliability, resilience, and security. Auto Surveillance VLAN and Voice VLAN The D-Link Web Smart series automates the process of setting up IP surveillance and VoIP devices on a network. Auto Surveillance VLAN consolidates data and surveillance video transmission through the network, sparing businesses the expense of maintaining dedicated facilities. ASV also protects the quality of realtime video by grouping IP surveillance devices on a single high priority VLAN. This ensures that surveillance video streams will not be affected when ordinary data traffic is at a high level. Similarly, the Auto Voice VLAN guarantees clear quality and efficient transmission for all voice communication. Extensive Layer 2 Features Equipped with a complete lineup of L2 features, these switches include IGMP Snooping, Port Mirroring, Spanning Tree, and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. At 2000 Mbps Full Duplex, the Gigabit ports provide high-speed data pipes to servers with minimum data transfer loss. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostic feature designed primarily for administrators and customer service representatives, can rapidly discover the type of error and determine the cable quality. Secure your Network D-Link€™s innovative Safeguard Engine protects the switches against traffic flooding caused by virus attacks. The switches also support 802.1X port-based authentication, allowing the network clients to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and protects the network by screening traffic from illegal MAC or IP addresses. ARP Spoofing Prevention prevents malicious intruders from sending massive fake ARP messages through a manipulated source. This protects important data from being stolen by Man-in-the-Middle attacks, and prevents wasting CPU cycles on these packets. For added security, the DHCP Server Screening feature blocks rogue DHCP server packets from user ports to prevent unauthorized IP assignment. Limited Lifetime Warranty D-Link offers a Limited Lifetime Warranty on the DGS-1210 Series WebSmart switches to further its commitment to product quality and long-term customer confidence.



Specification:



Management features
Multicast support	Yes
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch layer	L3
Network
IGMP snooping	Yes
Cable types supported	Cat5, Cat5e
MAC address auto-learning supported	Yes
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
Auto-negotiation	Yes
Virtual LAN features
VLAN support	Yes
Performance
Packet buffer memory	1.5 MB
Stackable	Yes
Auto-negotiation	Yes
Physical stacking (units)	6
Virtual stacking (units)	32
Noise level	43.8 dB
Harmonized System (HS) code	85176990
Power
Power connector	DC-in jack
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20.3 W
Technical details
Physical stacking (units)	6
Virtual stacking (units)	32
Product colour	Black
Stackable	Yes
Noise level	43.8 dB
Rack mounting	Yes
Shipping (inner) case width	14.3" (36.4 cm)
Shipping (inner) case net weight	17.7 lbs (8.04 kg)
Shipping (inner) case length	22.2" (56.3 cm)
Shipping (inner) case height	14.9" (37.9 cm)
Products per shipping (inner) case	5 pc(s)
Products per pallet (sea)	150 pc(s)
Products per pallet (air)	150 pc(s)
Pallet gross width	47.2" (120 cm)
Pallet gross length	43.3" (110 cm)
Pallet height (sea)	79.9" (2.03 m)
Pallet height (air)	79.9" (2.03 m)
Pallet gross weight (sea)	1009.1 lbs (457.7 kg)
Pallet gross weight (air)	1009.1 lbs (457.7 kg)
Master (outer) cases per pallet (sea)	30 pc(s)
Master (outer) cases per pallet (air)	30 pc(s)
Shipping (inner) case gross weight	32.2 lbs (14.6 kg)
Ports & interfaces
SFP module slots quantity	2
SFP+ module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack
Data transmission
Number of static routes	512
Packet buffer memory	1.5 MB
MAC address table	16000 entries
Switching capacity	76 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Forwarding rate	56.54 Mpps
Security
Static port security	Yes
SSH/SSL support	Yes
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP server, DHCP client
Multicast features
Multicast support	Yes
Protocols
Management protocols	Telnet, SNMP, SNTP, ICMPv6, IPv4/v6, RMON v1, LLDP, LLDP-MED, NTP, Telnet
Certificates
Safety	cUL, CB
Certification	CE, FCC, C-Tick, VCCI, BSMI, CCC
Memory
Packet buffer memory	1.5 MB
Design
Safety	cUL, CB
Product colour	Black
Stackable	Yes
LED indicators	Activity, Link, Power
Certification	CE, FCC, C-Tick, VCCI, BSMI, CCC
Rack mounting	Yes
Number of fans	1 fan(s)
Indication
LED indicators	Activity, Link, Power
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	-5 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Heat dissipation	41.602 BTU/h
Weight & dimensions
Width	11" (280 mm)
Depth	7.09" (180 mm)
Height	1.73" (44 mm)
Weight	2.73 lbs (1.24 kg)
Packaging data
Package width	13.6" (346 mm)
Package depth	13.6" (346 mm)
Package height	4.09" (104 mm)
Package weight	5.97 lbs (2.71 kg)
Logistics data
Harmonized System (HS) code	85176990
