Description

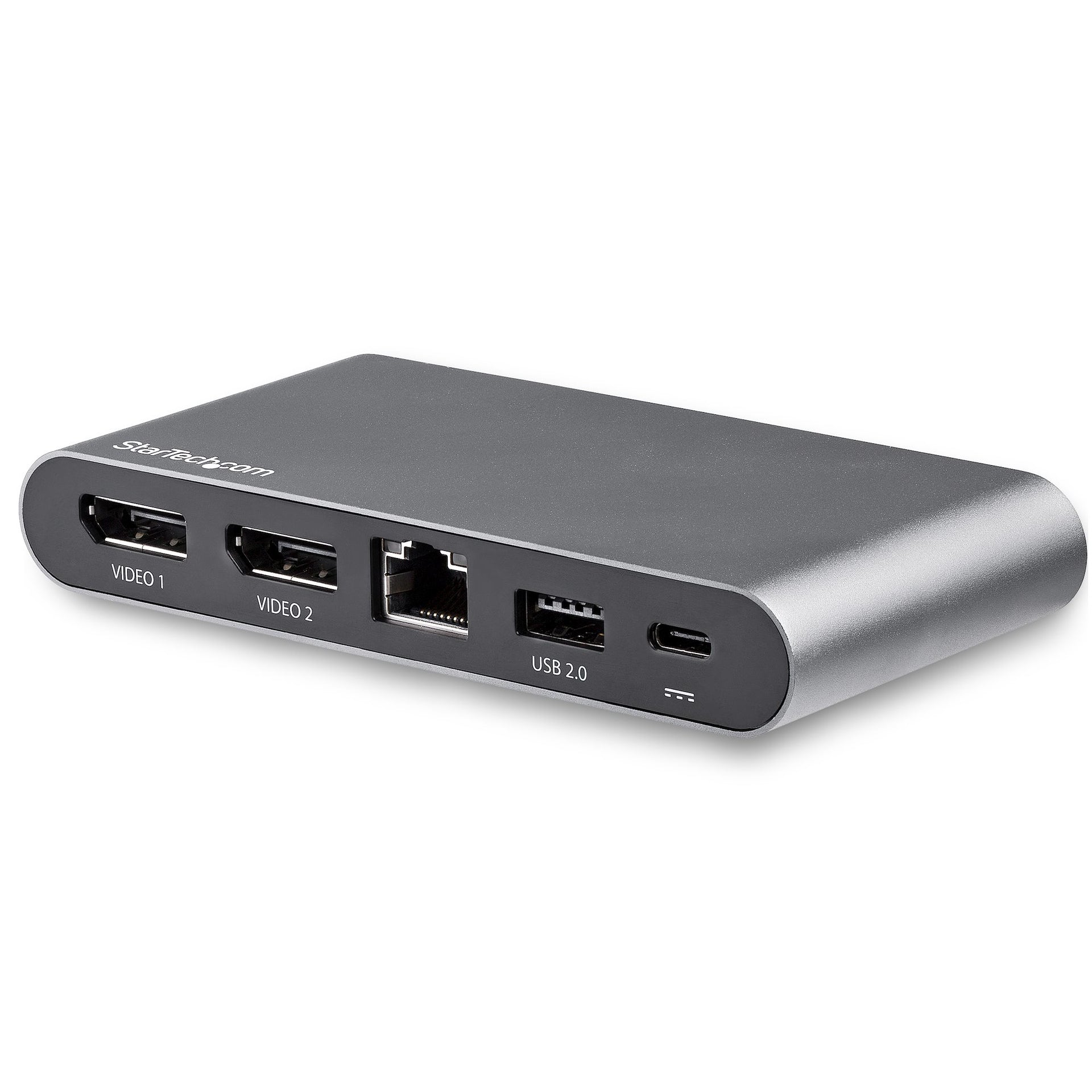

USB C Multiport Adapter | 4K 30Hz | 100W PD 3.0 | 2 USB A Ports | GbE | DP Alt-Mode SwitchTransform your Windows laptop into a dual monitor workstation using this USB-C docking station. It offers support for dual DisplayPort monitors, 2 USB-A peripherals, a LAN port for GbE network access and an extended 1-meter host cable.DisplayPort™ Alternate Mode to Choose Your Video Display OutputAchieve dual 1080p up to a single 4K 60Hz display using the DisplayPort™ Alternate Mode (DP Alt-Mode) configuration switch.Switch LeftSwitch Right2 Lane DP Alt- Mode4 Lane DP Alt ModeUSB 3.0(5Gbps)USB 2.0(480 Mbps)Dual 1080p MonitorsorSingle 4K 30Hz MonitorDual 4K 30Hz MonitorsorSingle 4K 60Hz MonitorReliable 100W Power Delivery PassthroughThe USB-C multiport adapter uses your USB-C laptop’s power adapter and can provide up to 100W Power Delivery (3.0) pass through with up to 85W for your host device for charging. The remaining wattage will power the docking station along with any attached USB-A peripherals such as smartphones and tablets.Multi-Stream Transport for Driverless DisplaysThe multi-stream transport technology (MST) in this dock powers two DisplayPort monitors with no driver installation required so you are up and running faster.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:•Advanced Windows Layout Utility : To setup and save custom windows layouts.•Mac Address Pass-Through Utility : To improve network security.•USB Event Monitoring Utility : To track and log connected USB devices•Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-ToolsComprehensive Product Testing & Expert Technical SupportStarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have a broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.This docking station is backed by a StarTech.com 3-Year warranty and free lifetime technical support.The StarTech.com Advantage
Specification:
Ports & interfaces | |
---|---|
Combo headphone/mic port | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
Headphone connectivity | 3.5 mm |
Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
Ethernet LAN (RJ-45) ports | 1 |
HDMI ports quantity | 2 |
DisplayPorts quantity | 2 |
Headphone outputs | 1 |
Connectivity technology | Wired |
USB Power Delivery | Yes |
USB Power Delivery up to | 100 W |
Network | |
Full duplex | Yes |
Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
Ethernet LAN | Yes |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ethernet LAN (RJ-45) ports | 1 |
10G support | No |
Performance | |
UASP support | Yes |
Maximum digital resolution | 5120 x 2880 pixels |
Full duplex | Yes |
On/off switch | Yes |
Product colour | Black, Gray |
Card reader integrated | No |
Cable lock slot | Yes |
Data transfer rate | 5 Gbit/s |
Certification | CE, FCC, REACH |
Cable lock slot type | Kensington |
Housing material | Plastic |
Technical details | |
Product colour | Black, Gray |
Cable lock slot | Yes |
Data transfer rate | 5 Gbit/s |
Sustainability certificates | RoHS |
Products per master (outer) case | 6 pc(s) |
Master (outer) case width | 11" (280 mm) |
Master (outer) case length | 13.2" (335 mm) |
Master (outer) case height | 11.9" (302 mm) |
Products per shipping (inner) case | 6 pc(s) |
Storage | |
Card reader integrated | No |
Power | |
Input current | 2.5 A |
Power plug type | Type N |
Compatible power plug types | AU, JP, US |
AC input voltage | 100 - 240 V |
Power supply type | External |
Power consumption (typical) | 170 W |
Output voltage | 20 V |
Output current | 8.5 A |
Software | |
Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura |
Mac compatibility | Yes |
Other operating systems supported | ChromeOS |
Operational conditions | |
Operating temperature (T-T) | 0 - 50 °C |
Storage temperature (T-T) | -20 - 70 °C |
Operating relative humidity (H-H) | 0 - 95% |
Sustainability | |
Sustainability certificates | RoHS |
Weight & dimensions | |
Weight | 9.88 oz (280 g) |
Width | 3.15" (80 mm) |
Depth | 8.66" (220 mm) |
Height | 1.18" (30 mm) |
Package weight | 2.87 lbs (1.3 kg) |
Package width | 6.1" (155 mm) |
Package depth | 10.6" (270 mm) |
Package height | 3.54" (90 mm) |
Design | |
Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura |
Product colour | Black, Gray |
Cable lock slot | Yes |
Certification | CE, FCC, REACH |
Cable lock slot type | Kensington |
Packaging data | |
Package weight | 2.87 lbs (1.3 kg) |
Package width | 6.1" (155 mm) |
Package depth | 10.6" (270 mm) |
Package height | 3.54" (90 mm) |
Packaging content | |
Quick start guide | Yes |
Cables included | USB Type-C |
AC adapter included | Yes |
Certificates | |
Certification | CE, FCC, REACH |
Logistics data | |
Products per master (outer) case | 6 pc(s) |
Master (outer) case width | 11" (280 mm) |
Master (outer) case length | 13.2" (335 mm) |
Master (outer) case height | 11.9" (302 mm) |
Products per shipping (inner) case | 6 pc(s) |
Other features | |
Power supply type | External |
Chipset | DisplayLink - DL6950, Genesys Logic - GL3523, Fresco Logic - FL7102, Fresco Logic - FL7201, VIA Labs - VL160, RealTek - RTL8153, Texas Instruments - TS3A225E |
