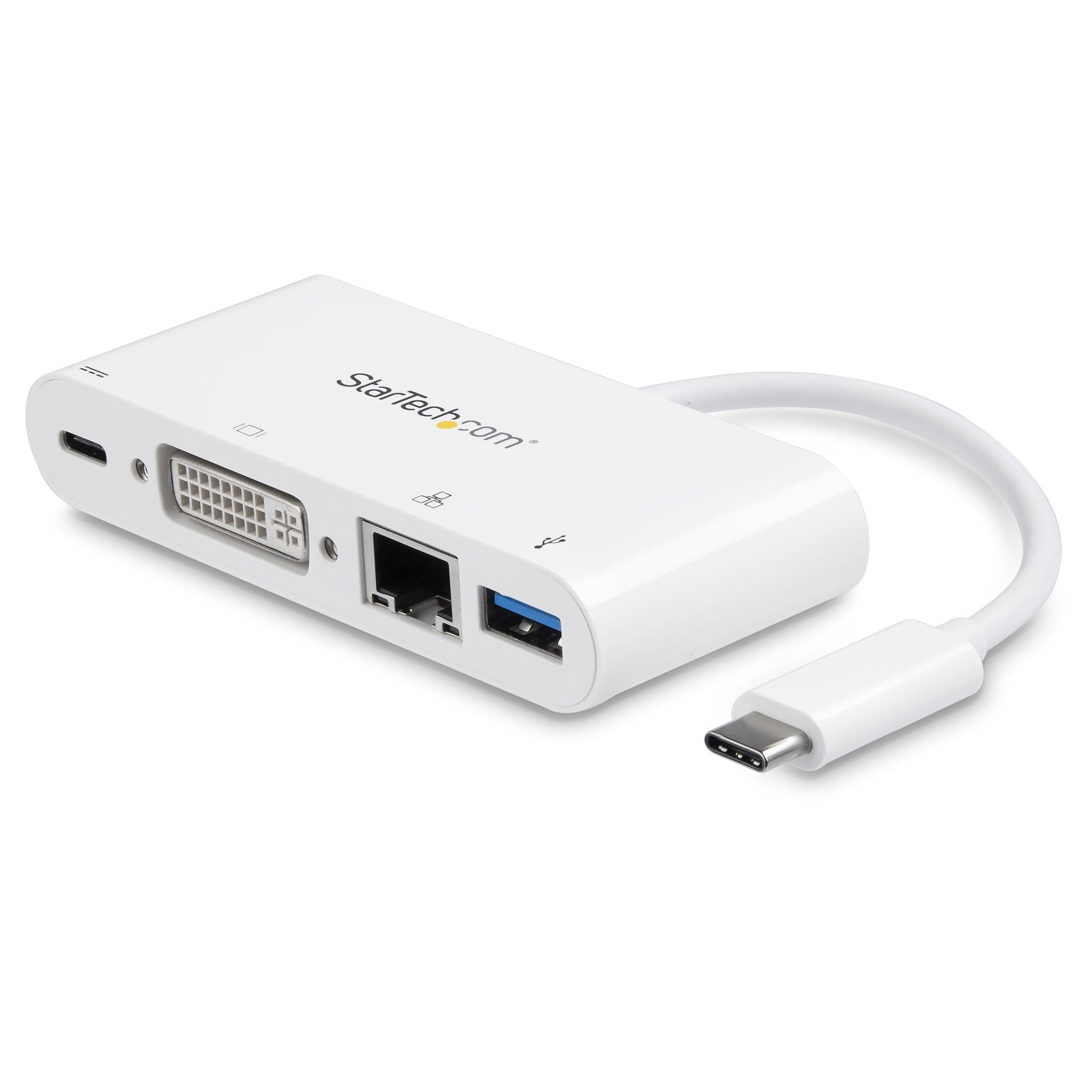

DKT30CDVPD - StarTech.com USB-C MULTIPORT ADAPTER W/ DVI-DIGITAL VIDEO 1920X1200 / 1080P (SINGLE LINK)/GBE

Portable Docking Station | Windows & Mac | USB-A & GbE | Thunderbolt3 Compatible

This USB-C multiport adapter equips your USB-C Windows or MacBook laptop with essential connections, including a DVI output, a Gigabit Ethernet port and a USB 3.0 (Type-A) port. Plus, you can power both the adapter and your laptop simultaneously, with 60 W USB Power Delivery 2.0 and a USB-C power adapter.

All the Connections You Need

The versatile adapter combines the performance of three single-function adapters into one powerful solution.

USB-C to DVI adapter

USB-C Ethernet adapter

USB-C to USB -A adapter

Add a second display through the DVI port. Get fast, reliable network access through the Gigabit Ethernet RJ45 port and connect a USB 3.0 peripheral device, such as a mouse or USB flash drive, all with one, simple-to-use device.

Charge and Power Your Laptop While You Work

The multiport adapter’s USB-C port supports 60 W USB Power Delivery 2.0, so you can power and charge your laptop while you work.

Bring Productivity Wherever You Go

The USB Type-C multiport adapter is highly portable and features an integrated USB-C cable and USB-powered performance, so there’s no need to carry a separate power adapter with you.

The StarTech.com Advantage for Docking Stations

Maximum compatibility - StarTech.com has a docking station to fit every operating system, laptop brand, and connectivity need

Get more done faster - More ports and more displays maximize end user connectivity and productivity

Quick installation - eliminate deployment headaches that waste time and frustrate end users

IT Grade quality - trusted by IT pros around the world for our rigorous in-house product testing, robust compliance, and lifetime multilingual technical support

The DKT30CDVPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Note: To ensure full adapter functionality, your laptop’s USB-C port must support USB Power Delivery and DP Alt Mode.

The StarTech.com Advantage

- 4-IN-1 USB-C MULITPORT ADAPTER: This USB C mini dock has DVI-D video output, Gigabit Ethernet port, 1x 5Gbps USB-A 3.0 port & 60W Power Delivery pass through charging, to work from home or in office
- DVI DIGITAL VIDEO OUTPUT: The DVI Digital video output on this USB Type-C multiport adapter provides a sharper digital display image and supports resolutions up to 1920x1200 / 1080p (Single Link)
- POWERED BY LAPTOP OR EXTERNAL ADAPTER: The dock can be USB bus powered or with a USB-C power adapter; Charge the laptop via PD Passthrough w/ your USB-C power adapter (7W for dock, 53W for charging)



Specification:



Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB connector type	USB Type-A, USB Type-C
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
Microphone in	No
Connectivity technology	Wired
USB Power Delivery	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
Network
Full duplex	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
UASP support	Yes
Maximum digital resolution	4096 x 2160 pixels
Full duplex	Yes
Auto MDI/MDI-X	Yes
Product colour	Black
Card reader integrated	No
Data transfer rate	5 Gbit/s
Certification	CE, FCC, REACH
HD type	4K Ultra HD
Housing material	Plastic
Technical details
Product colour	Black
Data transfer rate	5 Gbit/s
Sustainability certificates	RoHS
Harmonized System (HS) code	84733020
Products per master (outer) case	60 pc(s)
Master (outer) case width	13" (330 mm)
Master (outer) case length	20.9" (530 mm)
Master (outer) case height	12.2" (310 mm)
Storage
Card reader integrated	No
Power
Power source type	USB
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura
Other operating systems supported	ChromeOS
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Sustainability
Sustainability certificates	RoHS
Weight & dimensions
Weight	4.48 oz (127 g)
Width	1.5" (38 mm)
Depth	6.57" (167 mm)
Height	0.295" (7.5 mm)
Package weight	4.76 oz (135 g)
Package width	5.59" (142 mm)
Package depth	6.69" (170 mm)
Package height	1.18" (30 mm)
Design
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura
Product colour	Black
Certification	CE, FCC, REACH
Packaging data
Package weight	4.76 oz (135 g)
Package width	5.59" (142 mm)
Package depth	6.69" (170 mm)
Package height	1.18" (30 mm)
Packaging content
Manual	Yes
Certificates
Certification	CE, FCC, REACH
Logistics data
Products per master (outer) case	60 pc(s)
Master (outer) case width	13" (330 mm)
Master (outer) case length	20.9" (530 mm)
Master (outer) case height	12.2" (310 mm)
Other features
Chipset	VIA/VLI - VL102, VIA/VLI - VL817, Parade Technologies - PS176, RealTek - RTL8153
