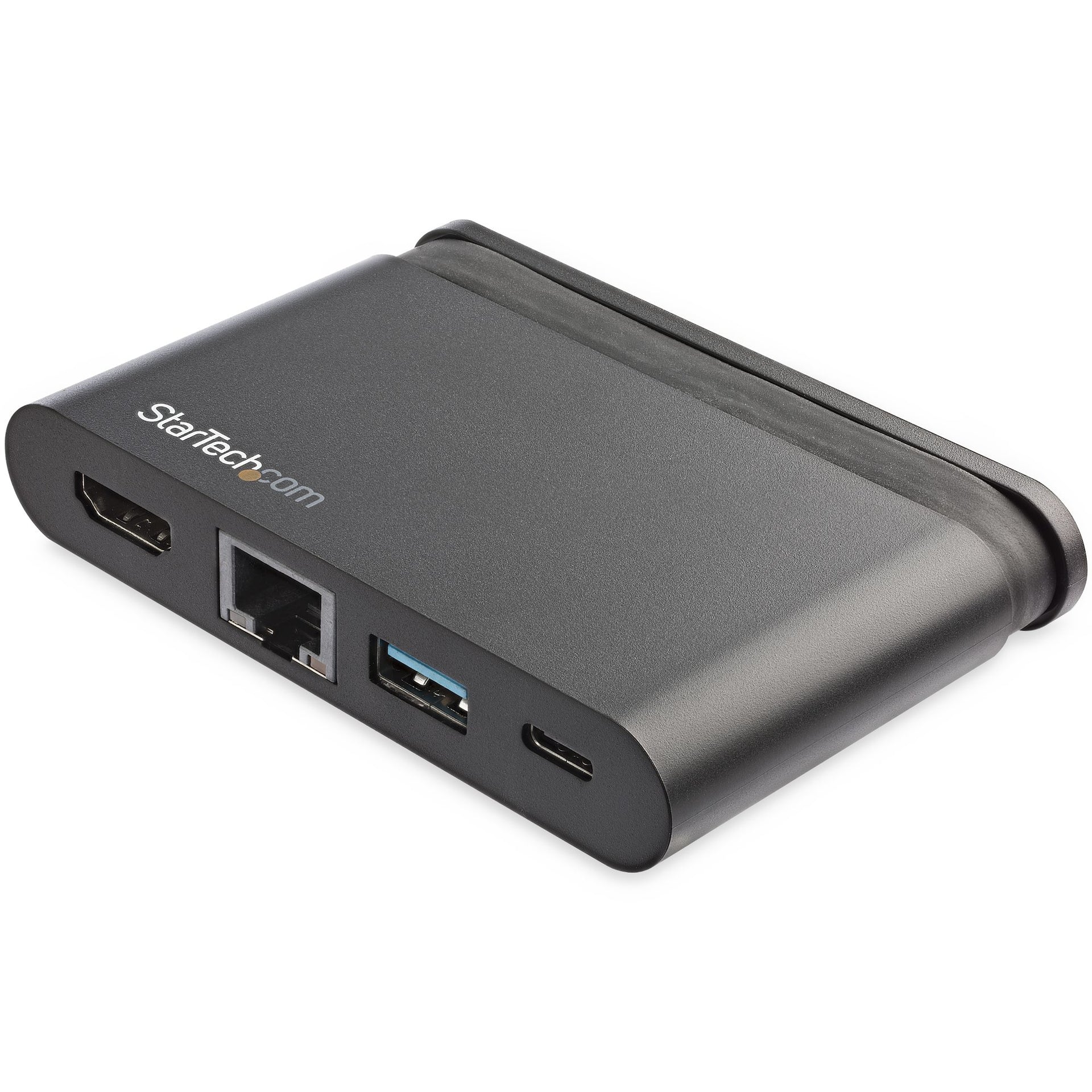

DKT30CHCPD - StarTech.com USB C MULTIPORT ADAPTER TO 4K HDMI VIDEO, GBE, USB-A (5GBPS/BC 1.2 1.5A FAST CHA

Portable Docking Station | Mac & Windows | 4K | GbE | Wrap-Around Cable

Here’s an all-in-one USB-C adapter for your MacBook Pro, Dell XPS or other USB-C laptop, with all the ports you need for maximum productivity. The USB-C multiport adapter with HDMI turns your laptop into a portable workstation, adding 4K video, Gigabit Ethernet, and two USB 3.0 ports, plus laptop charging with Power Delivery 3.0.

Connect a UHD 4K HDMI Monitor 

Use the USB-C adapter as a portable docking station, connecting your laptop to a 4K HDMI monitor (4096 x 2160p) to create a workstation or make presentations. It also connects to an ultrawide monitor. 

Connect Your Devices 

The USB-C adapter gives you one USB-C port to connect a USB-C device, and one USB-A port to attach a mouse, keyboard or other peripheral. Fast-charge your mobile device using the USB-A port.

Laptop Charging with PD 3.0

With support for 100W Power Delivery 3.0, the USB Type-C multiport adapter provides up to 92W laptop charging, and powers your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you unplug to switch power sources (USB-C power adapter to bus power). 

Wrap-Around Cable

The USB Type-C multiport adapter has a built-in wrap-around cable for easy connection and portability.

Reliable Network Connectivity 

The Gigabit Ethernet port ensures reliable wired network access. 

DKT30CHCPD is backed by a StarTech.com 3-year warranty and free lifetime technical support. 

Note: To ensure full adapter functionality, your laptop’s USB-C port must support USB Power Delivery and DP Alt Mode. 

The StarTech.com Advantage

- PORTABLE DOCKING STATION: 4K 30Hz HDMI UHD video (4096x2160p/3840x2160p), Gigabit Ethernet, 1x USB-A (5Gbps, Fast Charging), 1x USB-C (5Gbps) w/ 100W PD 3.0 Passthrough; supports ultrawide monitors
- DESIGNED FOR PORTABILITY: Compact USB-C multiport adapter has a 6" (15cm) wrap around cable to prevent tangling in your bag; for on-the-go users, work from home, office workstations & boardrooms
- WIDE DEVICE COMPATIBILITY: Travel dock for USB-C laptops, ultrabooks, chromebooks, tablets & phones like MacBook Pro/Air, HP EliteBook, Dell XPS/Latitude, Lenovo ThinkPad X1 & Surface Laptop 3/Book 3



Specification:



Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
Microphone in	No
Connectivity technology	Wired
Network
Full duplex	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Wake-on-LAN ready	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Performance
UASP support	Yes
Maximum digital resolution	4096 x 2160 pixels
Full duplex	Yes
Auto MDI/MDI-X	Yes
Product colour	Black
Card reader integrated	No
Data transfer rate	5 Gbit/s
Certification	CE, FCC, TAA, REACH
Housing material	Plastic
Technical details
Product colour	Black
Data transfer rate	5 Gbit/s
Cable length	13.4" (0.34 m)
Sustainability certificates	RoHS
Harmonized System (HS) code	84733020
Products per master (outer) case	20 pc(s)
Master (outer) case width	10" (255 mm)
Master (outer) case length	16.5" (420 mm)
Master (outer) case height	12.8" (324 mm)
Storage
Card reader integrated	No
Power
Power source type	USB
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Mac compatibility	Yes
Other operating systems supported	ChromeOS
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	5 - 90%
Sustainability
Sustainability certificates	RoHS
Weight & dimensions
Weight	1.83 oz (52 g)
Width	2.44" (62 mm)
Depth	2.56" (65 mm)
Height	0.591" (15 mm)
Package weight	7.05 oz (200 g)
Package width	5.71" (145 mm)
Package depth	8.27" (210 mm)
Package height	1.57" (40 mm)
Design
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Product colour	Black
Certification	CE, FCC, TAA, REACH
Packaging data
Package weight	7.05 oz (200 g)
Package width	5.71" (145 mm)
Package depth	8.27" (210 mm)
Package height	1.57" (40 mm)
Packaging content
Quick start guide	Yes
Certificates
Certification	CE, FCC, TAA, REACH
Logistics data
Products per master (outer) case	20 pc(s)
Master (outer) case width	10" (255 mm)
Master (outer) case length	16.5" (420 mm)
Master (outer) case height	12.8" (324 mm)
Other features
Chipset	Genesys Logic - GL3523, Realtek - RTL8153, Parade - PS176
Cable length	13.4" (0.34 m)
