Portable Docking Station | Windows & Mac | 4K | GbE | TAA Compliant

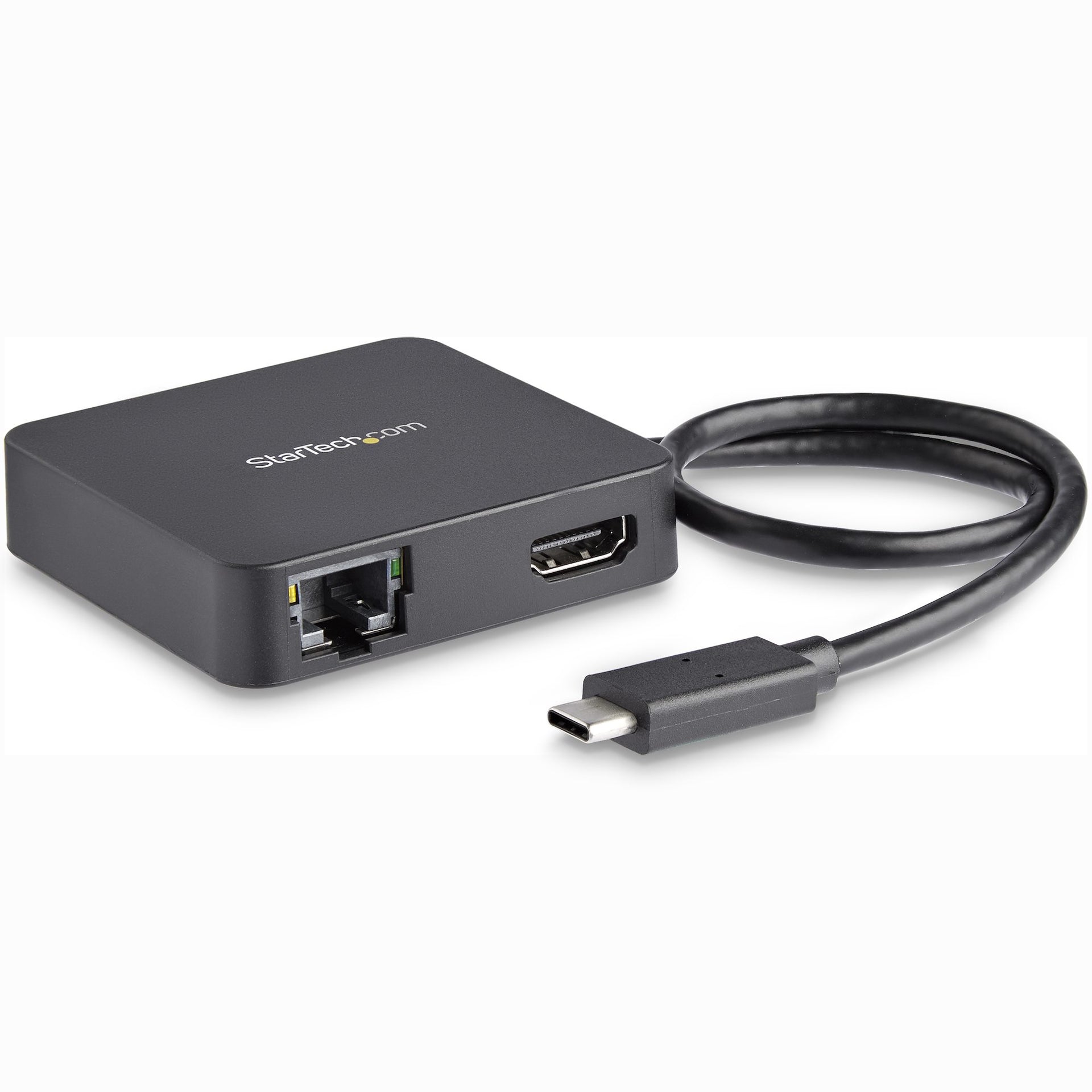

This USB-C Multiport Adapter with HDMI combines the capability of three single-function adapters, a USB-C video adapter, USB-C to USB 3.0 adapter, and Gigabit Ethernet adapter, into a portable docking station for your laptop. You can connect a 4K HDMI display and two USB 3.0 devices (1x USB-A, 1x USB-C), and get high-speed network access, all through a single cable.
The USB Type-C adapter is compatible with Thunderbolt 3 ports.
Add a 4K UHD Monitor
With HDMI output, this USB-C multiport adapter makes it easy to expand your virtual workspace onto an external 4K HDMI monitor. The adapter supports resolutions up to 4096 x 2160p (24Hz)Â or 3840 x 2160p (30Hz), as well as audio.
Reliable Network Access
The USB-C multiport adapter ensures a reliable wired network connection with a Gigabit Ethernet port, which is ideal for areas with limited Wi-Fi access such as in classrooms, office buildings and hotels.
Connect Your USB Devices Easily
With two USB 3.0 ports (1x USB-A, 1x USB-C) you get access to traditional USB Type-A devices, as well as newer USB-C devices you add in the future.Â
Bring Productivity with You Wherever You Go
With its compact design and bus-powered performance, the portable multiport adapter is easy to take with you anywhere you take your laptop. The adapter features a pre-attached USB-C cable, so you have one less cable to carry when you’re on the move.
The StarTech.com Advantage for Docking Stations
Maximum compatibility -Â StarTech.com has a docking station to fit every operating system, laptop brand, and connectivity need
Get more done faster - More ports and more displays maximize end user connectivity and productivity
Quick installation - eliminate deployment headaches that waste time and frustrate end users
IT Grade quality - trusted by IT pros around the world for our rigorous in-house product testing, robust compliance, and lifetime multilingual technical support
The DKT30CHD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note:Â Your USB-C equipped host laptop must support video (DP Alt Mode) to work with this adapter. The adapter does not support USB Power Delivery.
The StarTech.com Advantage
- DOCKING STATION WITH ESSENTIAL PORTS: 4-in-1 USB C multiport adapter with 4K 30Hz HDMI video output, Gigabit Ethernet port, USB 3.0 Hub 5Gbps (1x USB-A and 1x USB-C ports); USB bus-powered
- EXTRA LONG CABLE: Mini dock has an attached 13 in (34cm) cable to provide extended reach to reduce connector strain on 2-in-1 devices like Surface Pro 7, iPad Pro, HP Elite or laptops on riser stands
- DESIGNED FOR PORTABILITY: USB-C port expander w/ ultra compact square design for presentations in meeting rooms connected to a TV/display/monitor, working from home or on the go
This USB-C Multiport Adapter with HDMI combines the capability of three single-function adapters, a USB-C video adapter, USB-C to USB 3.0 adapter, and Gigabit Ethernet adapter, into a portable docking station for your laptop. You can connect a 4K HDMI display and two USB 3.0 devices (1x USB-A, 1x USB-C), and get high-speed network access, all through a single cable.
The USB Type-C adapter is compatible with Thunderbolt 3 ports.
Add a 4K UHD Monitor
With HDMI output, this USB-C multiport adapter makes it easy to expand your virtual workspace onto an external 4K HDMI monitor. The adapter supports resolutions up to 4096 x 2160p (24Hz)Â or 3840 x 2160p (30Hz), as well as audio.
Reliable Network Access
The USB-C multiport adapter ensures a reliable wired network connection with a Gigabit Ethernet port, which is ideal for areas with limited Wi-Fi access such as in classrooms, office buildings and hotels.
Connect Your USB Devices Easily
With two USB 3.0 ports (1x USB-A, 1x USB-C) you get access to traditional USB Type-A devices, as well as newer USB-C devices you add in the future.Â
Bring Productivity with You Wherever You Go
With its compact design and bus-powered performance, the portable multiport adapter is easy to take with you anywhere you take your laptop. The adapter features a pre-attached USB-C cable, so you have one less cable to carry when you’re on the move.
The StarTech.com Advantage for Docking Stations
Maximum compatibility -Â StarTech.com has a docking station to fit every operating system, laptop brand, and connectivity need
Get more done faster - More ports and more displays maximize end user connectivity and productivity
Quick installation - eliminate deployment headaches that waste time and frustrate end users
IT Grade quality - trusted by IT pros around the world for our rigorous in-house product testing, robust compliance, and lifetime multilingual technical support
The DKT30CHD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note:Â Your USB-C equipped host laptop must support video (DP Alt Mode) to work with this adapter. The adapter does not support USB Power Delivery.
The StarTech.com Advantage
- DOCKING STATION WITH ESSENTIAL PORTS: 4-in-1 USB C multiport adapter with 4K 30Hz HDMI video output, Gigabit Ethernet port, USB 3.0 Hub 5Gbps (1x USB-A and 1x USB-C ports); USB bus-powered
- EXTRA LONG CABLE: Mini dock has an attached 13 in (34cm) cable to provide extended reach to reduce connector strain on 2-in-1 devices like Surface Pro 7, iPad Pro, HP Elite or laptops on riser stands
- DESIGNED FOR PORTABILITY: USB-C port expander w/ ultra compact square design for presentations in meeting rooms connected to a TV/display/monitor, working from home or on the go
Specification:
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB connector type | USB Type-C |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Microphone in | No |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 60 W |
| Network | |
| Auto MDI/MDI-X | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Wake-on-LAN ready | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| UASP support | Yes |
| Maximum digital resolution | 4096 x 2160 pixels |
| Auto MDI/MDI-X | Yes |
| Product colour | Black |
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |
| Certification | CE, FCC, TAA, REACH |
| Housing material | Plastic |
| Technical details | |
| Product colour | Black |
| Data transfer rate | 5 Gbit/s |
| Cable length | 13.7" (0.348 m) |
| Sustainability certificates | RoHS |
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 12.5" (317 mm) |
| Master (outer) case length | 16.5" (420 mm) |
| Master (outer) case height | 17.1" (435 mm) |
| Storage | |
| Card reader integrated | No |
| Power | |
| Power source type | DC, USB |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura |
| Mac compatibility | Yes |
| Other operating systems supported | ChromeOS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 65 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Weight | 2.26 oz (64 g) |
| Width | 2.01" (51 mm) |
| Depth | 3.78" (96 mm) |
| Height | 0.709" (18 mm) |
| Package weight | 6.98 oz (198 g) |
| Package width | 5.75" (146 mm) |
| Package depth | 8.35" (212 mm) |
| Package height | 1.61" (41 mm) |
| Design | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura |
| Product colour | Black |
| Certification | CE, FCC, TAA, REACH |
| Packaging data | |
| Package weight | 6.98 oz (198 g) |
| Package width | 5.75" (146 mm) |
| Package depth | 8.35" (212 mm) |
| Package height | 1.61" (41 mm) |
| Packaging content | |
| Quick start guide | Yes |
| Certificates | |
| Certification | CE, FCC, TAA, REACH |
| Logistics data | |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 12.5" (317 mm) |
| Master (outer) case length | 16.5" (420 mm) |
| Master (outer) case height | 17.1" (435 mm) |
| Other features | |
| Chipset | VIA/VLI - VL813, VIA/VLI - VL100, Chrontel - CH7525A, ASIX - AX88179 |
| Cable length | 13.7" (0.348 m) |
