Description

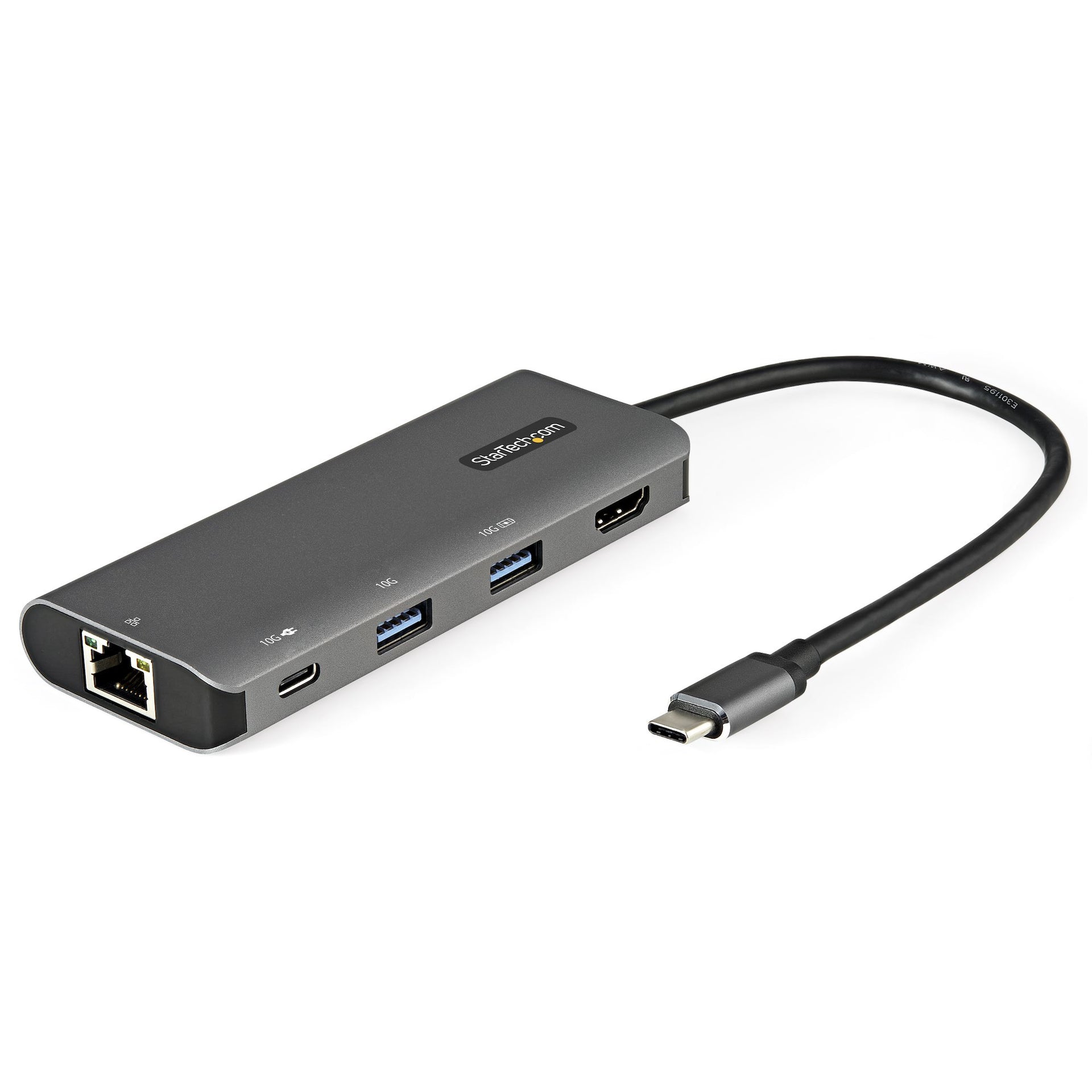

100W Power Delivery Pass Through | 1X USB-C Port | 2x USB-A Port | 10" Attached CableThis USB-C multiport adapter with HDMI® turns your MacBook Pro, Dell XPS, or other USB-C™ laptops into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K HDMI video output, a USB Type-C™ port (data/power), two USB 3.2 Gen 2 Type-A (10Gbps) ports, and a Gigabit Ethernet port, all through one connection to your laptop's USB-C or Thunderbolt 3™ port. Plus, it offers advanced charging through USB Power Delivery 3.0 and an extra-long attached 10-inch (25 cm) host cable for an extended reach to offer more set up flexibility.Enhance ProductivityThe portable docking station connects your laptop to a 4K HDMI monitor (4096 x 2160p) to create a powerful workstation. It can also connect to an ultrawide monitor.Connect Your DevicesThe USB-C to USB 3.2 Gen 2 hub gives you one USB-C port and two USB-A ports to connect your latest and legacy USB devices.Charge Your Laptop and PeripheralsWith support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).Reliable Network ConnectivityThe Gigabit Ethernet port ensures reliable wired network access.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:•Advanced Windows Layout Utility : To setup and save custom windows layouts.•Mac Address Pass-Through Utility : To improve network security.•USB Event Monitoring Utility : To track and log connected USB devices•Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-ToolsThe DKT31CHPDL is backed by a StarTech.com 3-year warranty and free lifetime technical support.Note: To ensure full adapter functionality, your laptop's USB-C port must support USB Power Delivery.The StarTech.com Advantage
Specification:
Ports & interfaces | |
---|---|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
Ethernet LAN (RJ-45) ports | 1 |
HDMI ports quantity | 1 |
VGA (D-Sub) ports quantity | 1 |
Microphone in | No |
Connectivity technology | Wired |
Network | |
Full duplex | Yes |
Ethernet LAN | Yes |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ethernet LAN (RJ-45) ports | 1 |
Performance | |
UASP support | Yes |
Maximum digital resolution | 3840 x 2160 pixels |
Maximum analog resolution | 2048 x 2180 pixels |
Full duplex | Yes |
Product colour | Black, Silver |
Data transfer rate | 10 Gbit/s |
Housing material | Aluminum, Plastic |
Maximum refresh rate | 30 Hz |
Technical details | |
Product colour | Black, Silver |
Data transfer rate | 10 Gbit/s |
Cable length | 9.84" (0.25 m) |
Sustainability compliance | Yes |
Sustainability certificates | CE, RoHS |
Harmonized System (HS) code | 84733020 |
Products per master (outer) case | 20 pc(s) |
Master (outer) case width | 16.3" (415 mm) |
Master (outer) case length | 9.25" (235 mm) |
Master (outer) case height | 12.5" (318 mm) |
Software | |
Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64 |
Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
Other operating systems supported | ChromeOS |
Mobile operating systems supported | Android |
Operational conditions | |
Operating temperature (T-T) | 0 - 60 °C |
Storage temperature (T-T) | -20 - 60 °C |
Operating relative humidity (H-H) | 0 - 90% |
Sustainability | |
Sustainability compliance | Yes |
Sustainability certificates | CE, RoHS |
Weight & dimensions | |
Weight | 1.9 oz (54 g) |
Width | 2.4" (61 mm) |
Depth | 14.2" (360 mm) |
Height | 0.591" (15 mm) |
Package weight | 5.78 oz (164 g) |
Package width | 8.27" (210 mm) |
Package depth | 5.59" (142 mm) |
Package height | 1.5" (38 mm) |
Design | |
Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64 |
Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
Product colour | Black, Silver |
Packaging data | |
Quantity per pack | 1 pc(s) |
Package weight | 5.78 oz (164 g) |
Package width | 8.27" (210 mm) |
Package depth | 5.59" (142 mm) |
Package height | 1.5" (38 mm) |
Packaging content | |
Quick start guide | Yes |
Quantity per pack | 1 pc(s) |
Logistics data | |
Products per master (outer) case | 20 pc(s) |
Master (outer) case width | 16.3" (415 mm) |
Master (outer) case length | 9.25" (235 mm) |
Master (outer) case height | 12.5" (318 mm) |
Other features | |
Chipset | Genesys Logic - GL3590, ITE Tech - IT6564FN, Silicon Labs - EFM8UB20F32G |
Cable length | 9.84" (0.25 m) |
