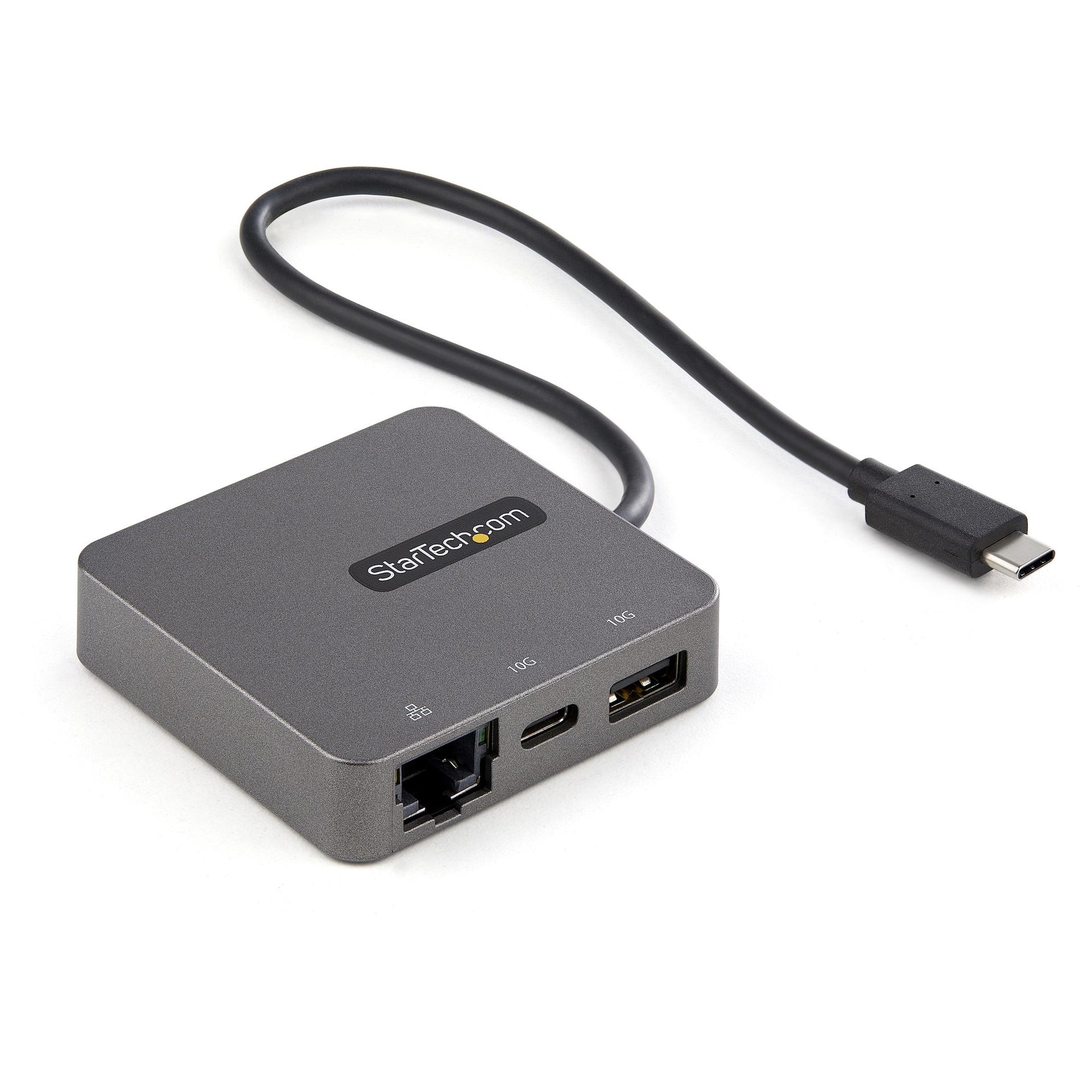

DKT31CHVL - StarTech.com USB C MULTIPORT ADAPTER 4K 30HZ HDMI OR 1080P VGA VIDEO/USB 3.1 GEN 2 10GBPS HUB

USB-C Travel Dock | MacBook Pro | USB-C & A Ports | Mac, Windows, Chrome & Android OSThis USB-C multiport adapter turns your USB-C ® or Thunderbolt™ 3 MacBook Pro, Windows laptop, Chromebook and Android tablet into a workstation, anywhere you go. A USB 3.1 Gen 2 Type-C hub adapter, ideal for travel, features everything from the essential HDMI or VGA video outputs to faster 10G USB-C & USB-A peripheral ports. All through a single extended length 29cm USB-C® attached host cable, providing more flexibility for harder to reach laptop and tablet connections.Two Video Output Options with HDMI & VGAThis USB-C multiport adapter features both an 4K 30Hz HDMI and VGA port providing you with two single video output options for your boardroom presentations or your workstation setup including support for an ultra-wide monitor.Designed for Portability & Ease of UseThe USB-C travel dock is bus-powered through an attached extended length 29cm host cable, accommodating a wide variety of setups, so there’s no need to carry around a separate bulky power adapter. Installation is fast and simple, with native support in most operating systems and at only 1.94 ounces (55 g) and taking up less space than your smartphone, this dock easily fits in your laptop bag or briefcase.Simplistic Port ConfigurationIn addition to the video outputs, the portable USB-C dock gives you one 10G USB-C port and USB-A port to connect your latest and legacy USB devices. The adapter also integrates a Gigabit Ethernet port to access a wired network.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:•Advanced Windows Layout Utility : To setup and save custom windows layouts.•Mac Address Pass-Through Utility : To improve network security.•USB Event Monitoring Utility : To track and log connected USB devices•Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-ToolsThe DKT31CHVL is backed by a StarTech.com 3-year warranty and free lifetime technical support.The StarTech.com Advantage



Specification:



Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
HDMI ports quantity	1
HDMI version	2.0b
Mini DisplayPorts quantity	1
Microphone in	No
Connectivity technology	Wired
USB Power Delivery	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
DisplayPort version	1.4
Network
Ethernet LAN	No
Performance
Maximum digital resolution	3840 x 2160 pixels
Product colour	Black, Silver
Card reader integrated	No
Data transfer rate	10 Gbit/s
Certification	CE, FCC, RoHS
HD type	4K Ultra HD
Maximum refresh rate	60 Hz
Technical details
Product colour	Black, Silver
Data transfer rate	10 Gbit/s
Cable length	11.8" (0.3 m)
Harmonized System (HS) code	84733020
Products per master (outer) case	70 pc(s)
Master (outer) case width	18.6" (473 mm)
Master (outer) case length	13" (331 mm)
Master (outer) case height	17.3" (440 mm)
Storage
Card reader integrated	No
Power
Power consumption (typical)	15 W
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
Linux operating systems supported	Ubuntu 18.04 LTS, Ubuntu 20.04 LTS
Other operating systems supported	ChromeOS
Mobile operating systems supported	Android, iPadOS
Weight & dimensions
Weight	2.97 oz (84.3 g)
Width	16.7" (425 mm)
Depth	1.84" (46.8 mm)
Height	6.3" (160 mm)
Package weight	5.4 oz (153 g)
Package width	5.51" (140 mm)
Package depth	4.61" (117 mm)
Package height	1.18" (30 mm)
Design
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
Product colour	Black, Silver
Certification	CE, FCC, RoHS
Packaging data
Package weight	5.4 oz (153 g)
Package width	5.51" (140 mm)
Package depth	4.61" (117 mm)
Package height	1.18" (30 mm)
Packaging content
Quick start guide	Yes
Certificates
Certification	CE, FCC, RoHS
Logistics data
Products per master (outer) case	70 pc(s)
Master (outer) case width	18.6" (473 mm)
Master (outer) case length	13" (331 mm)
Master (outer) case height	17.3" (440 mm)
Other features
Chipset	Realtek - RTD2142S, VIA Labs - VL103, VIA Labs - VL822, VIA Labs - VL160, Terminus - FE8.1
Cable length	11.8" (0.3 m)
