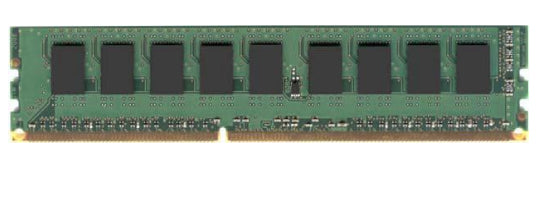

DVM16E1L8/4G - Dataram 4GB 1RX8 PC3L-12800E-11

DVM16E1L8/4G is a low voltage, unbuffered 512Mx72 memory module, which conforms to JEDEC's DDR3L, PC3L-12800 standard. The assembly is one
Rank. The rank is comprised of nine512Mx8DDR3 SDRAMs.
One EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity, is also used.
Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.
A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.
