Description

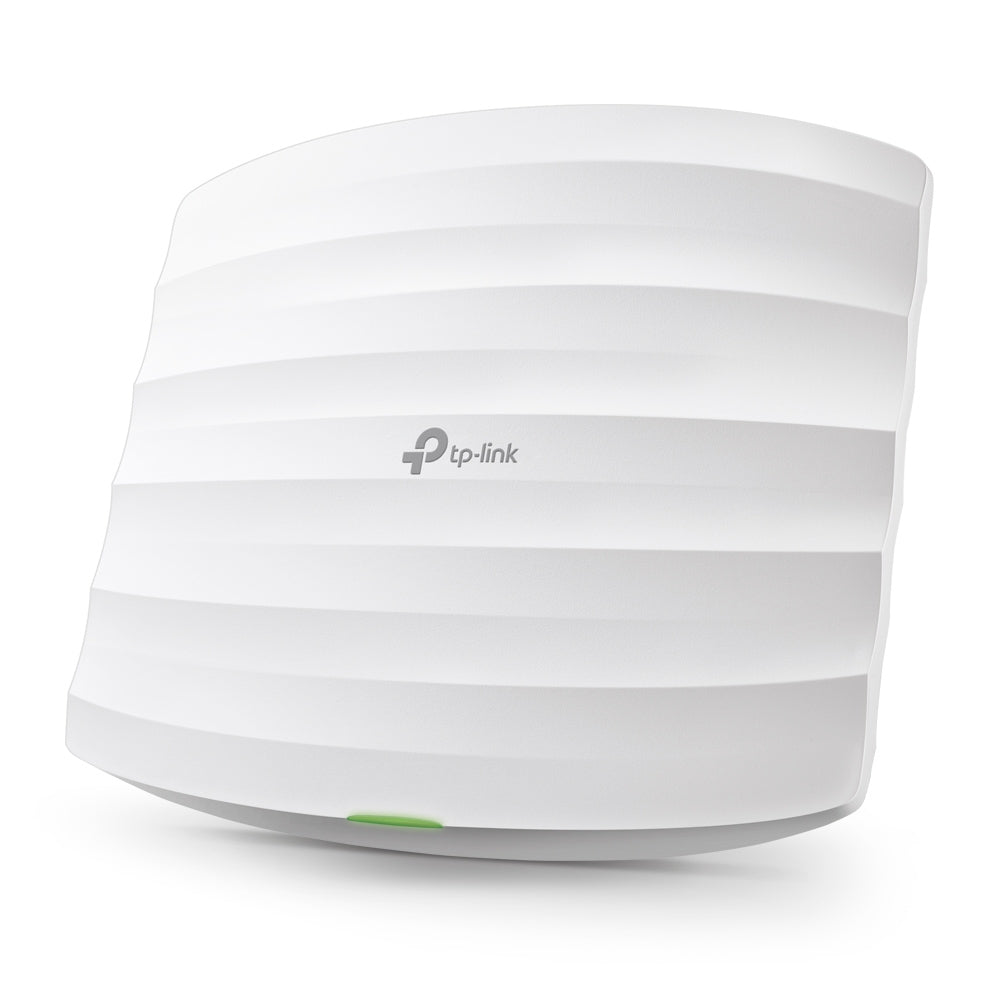

Superior Wi-Fi Speeds and Performance QCA enterprise class chipsets, dedicated high-power amplifier and professional antenna along with the latest generation 802.11ac Wave 2 MU-MIMO technology, ensure superior 1750 Mbps Wi-Fi speeds and long-range coverage over 2.4GHz and 5GHz wireless bands. Seamless Roaming 802.11k/802.11v seamless roaming switches clients automatically to the access point with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted. Secure Guest Network with Facebook Wi-Fi and SMS Login Guest Network provides secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business. Multiple PoE Options for Easy Installation EAP245 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter. The addition of elegant appearance and simple mounting design for easy attachment to a wall or ceiling further makes deployment effortless and flexible. Cloud Centralized Management - Anytime, Anywhere Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself. Easy Management with the Omada App Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet. Meet Our New Hero Product! The OC200 Omada Hardware Controller is dedicated to providing centralized management for the whole Omada network. Omada Hardware Controller
Specification:
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1750 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wireless isolation | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Automatic channel selection | Yes |
| Syslog | Yes |
| Transmitting power | 27 dBmW |
| Reset button | Yes |
| Frequency band | 2.4, 5 GHz |
| Web-based management | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Certification | CE, FCC, RoHS |
| Maximum data transfer rate | 1750 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Wi-Fi roaming | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Wireless LAN features | |
| Frequency band | 2.4, 5 GHz |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af |
| Management features | |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Syslog | Yes |
| Web-based management | Yes |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wireless isolation | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Automatic channel selection | Yes |
| Transmitting power | 27 dBmW |
| Frequency band | 2.4, 5 GHz |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Maximum data transfer rate | 1750 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Wi-Fi roaming | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Maximum data transfer rate (2.4 GHz) | 450 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1300 Mbit/s |
| Virtual LAN features | SSID-based VLAN assignment |
| Security | |
| Number of SSID supported | 16 |
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| MAC address filtering | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Power | |
| Power consumption (typical) | 12.3 W |
| Power over Ethernet (PoE) | Yes |
| Input current | 1.5 A |
| AC input voltage | 48 V |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Certification | CE, FCC, RoHS |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 4 dBi |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Technical details | |
| Transmitting power | 27 dBmW |
| Reset button | Yes |
| Harmonized System (HS) code | 85176990 |
| Indication | |
| LED indicators | Yes |
| Weight & dimensions | |
| Width | 8.11" (206 mm) |
| Depth | 7.17" (182 mm) |
| Height | 1.46" (37 mm) |
| Packaging data | |
| Mounting kit | Yes |
| Number of products included | 5 pc(s) |
| Packaging content | |
| Mounting kit | Yes |
| Number of products included | 5 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
