Description

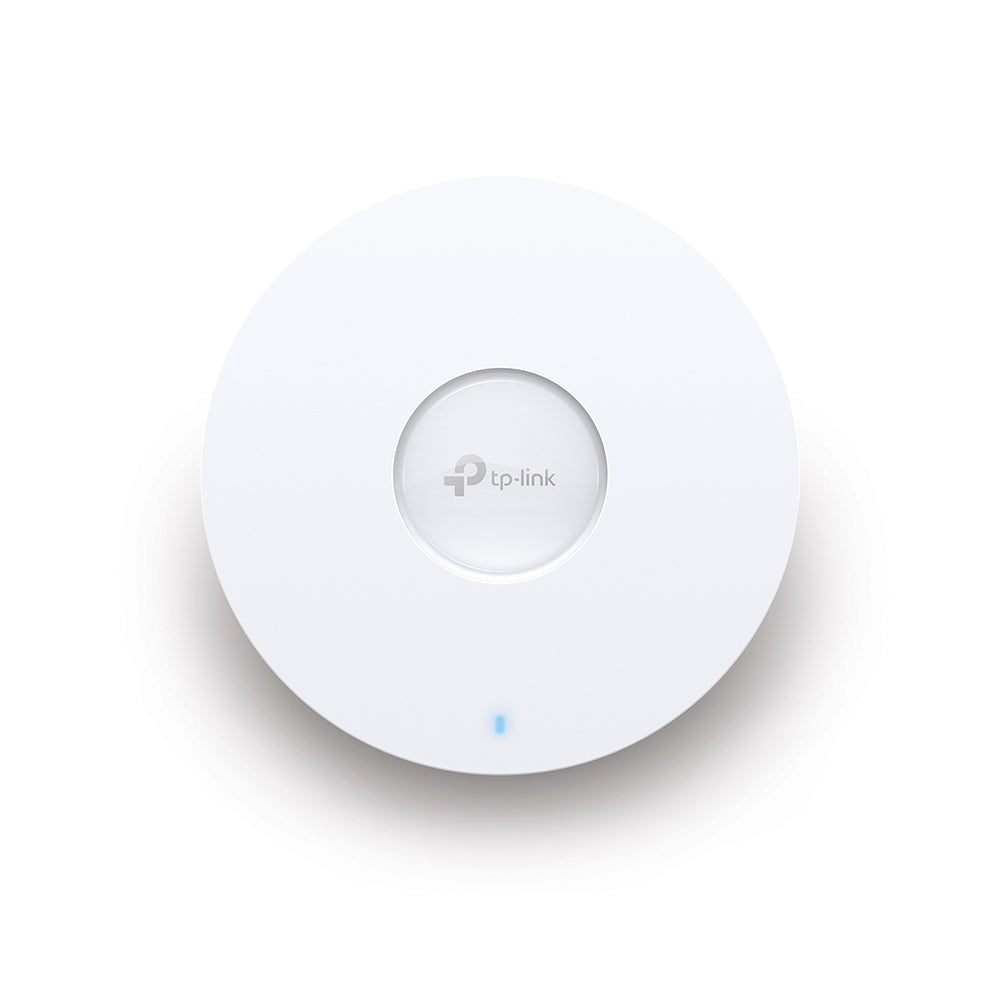

The New Slimline Business WiFi 6 AX3000 Ceiling Mount WiFi 6 Access Point AX3000 WiFi 6 Speed 2402 Mbps on 5 GHz + 574 Mbps on 2.4 GHz†High-Efficiency WiFi 6 More connected devices can enjoy faster speeds Centralized Cloud Management Manage the whole network locally or from the cloud 160 MHz Channel Double the data at peak transmission times on a single stream with HE160‡ Auto Channel Selection and Power Adjustment* Optimize overall performance by reducing WiFi interference Omada Mesh Technology More flexible and convenient wireless deployment Seamless Roaming Uninterrupted streaming when moving between APs Ultra-Slim Design Φ160 mm × 33.6 mm elegant design brings more agility PoE+ Powered Supports both DC (adapter included) and 802.3at PoE+ for flexible installations Seamless Integration into Omada SDN The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface. Auto Channel Selection and Power Adjustment to Optimize Overall Performance Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network. Easy Deployment & Higher Performance by Omada Mesh Easy Pairing, Less Wiring With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas. Optimized Network Performance Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted. Always Stay Smooth with Fast Roaming Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal. Ultra-Slim Design Brings More Agility Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP650 perfectly blend into any modern office, hotel, classroom, or café.
Specification:
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 2976 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Reset button | Yes |
| Spread spectrum method | OFDMA |
| Web-based management | Yes |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Channel bandwidth | 160 MHz |
| Maximum data transfer rate | 2976 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Network | |
| Spread spectrum method | OFDMA |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h |
| Bandwidth | |
| Channel bandwidth | 160 MHz |
| Management features | |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Spread spectrum method | OFDMA |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Channel bandwidth | 160 MHz |
| Maximum data transfer rate | 2976 Mbit/s |
| Transmitting power (FCC) | 22 dBm |
| Transmitting power (CE) | 27 dBm |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Fit AP mode features | Mesh networking |
| Virtual LAN features | VLAN mapping |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Security | |
| Security algorithms | HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA, WPA2, WPA3 |
| MAC address filtering | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Antenna gain level (max) | 5 dBi |
| Technical details | |
| Reset button | Yes |
| Sustainability certificates | RoHS |
| Harmonized System (HS) code | 85176990 |
| Indication | |
| LED indicators | Yes |
| Weight & dimensions | |
| Width | 6.3" (160 mm) |
| Depth | 6.3" (160 mm) |
| Height | 1.32" (33.6 mm) |
| Packaging data | |
| Number of products included | 1 pc(s) |
| Packaging content | |
| Number of products included | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| System requirements | |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Sustainability | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
