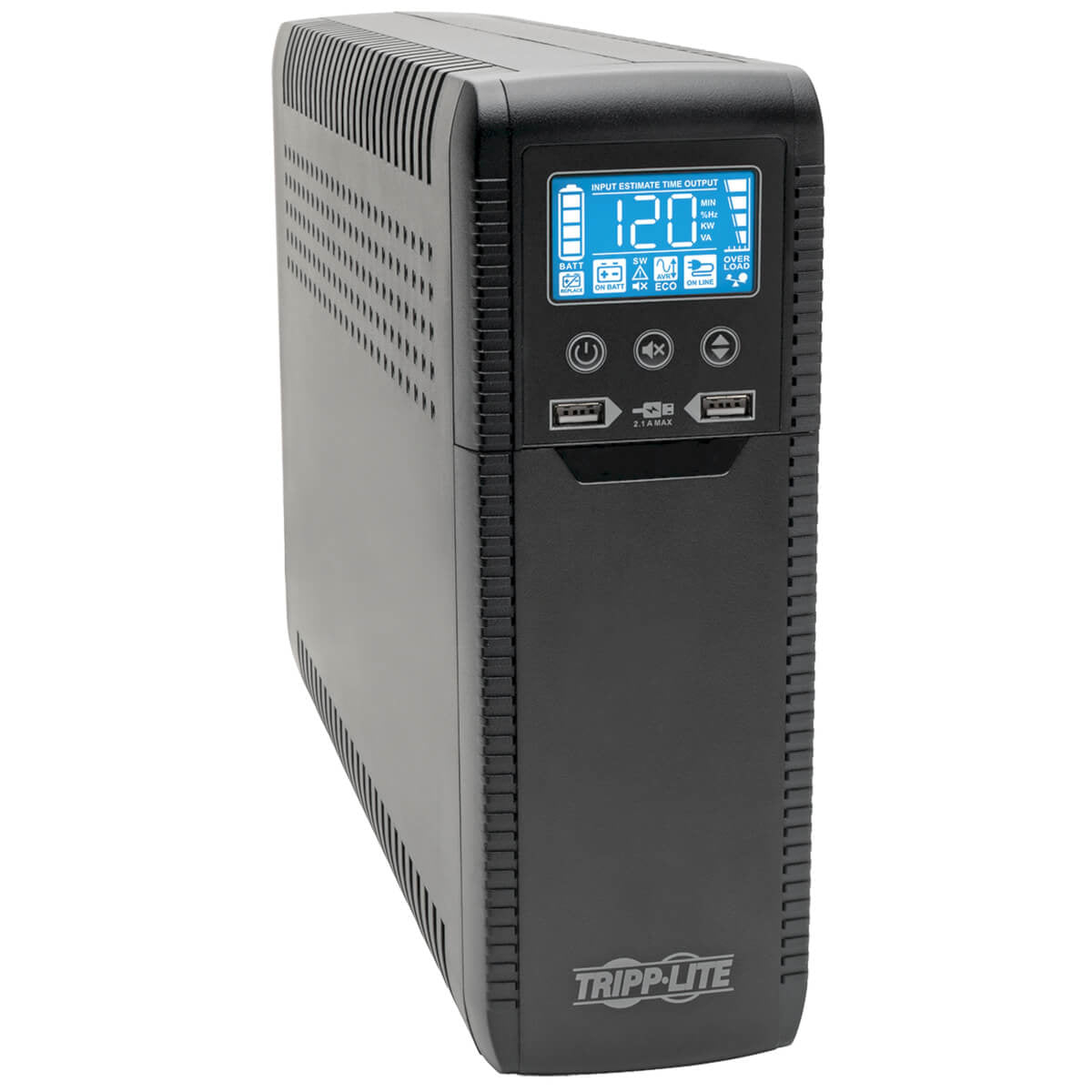

ECO1300LCD - Tripp Lite LINE INTERACTIVE UPS WITH USB AND 10 OUTLETS - 120V, 1300VA, 720W, 50/60 HZ, AVR

Energy-Saving 1300VA/720W USB Battery Backup for PCs or Home Theater Systems This 120V line-interactive AVR UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable electronics or destroy data. The 10-outlet UPS is ideal protection for your home office or media center components, including computers, routers, printers, NAS drives, HDTVs, Blu-ray players, game consoles, media players, DVRs and audio receivers. Allows Time to Back Up Critical Files During a Blackout Backup support allows you to work through short power failures, and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the line-interactive UPS system should keep an energy-efficient desktop computer with LCD monitor powered as long as 75 minutes. During normal operation, incoming utility power keeps the UPS battery fully charged, so backup power will always be available. The hot-swappable internal batteries can be replaced by the user. Connects Your Equipment to 10 NEMA 5-15R Outlets Five 5-15R outlets provide both battery backup and surge protection for your computer, monitor and other crucial components. The other five 5-15R outlets are surge-protected only for printers, scanners and other non-essential equipment. Two outlets—one battery/surge and one surge-only—are spaced apart from the others to accommodate bulky transformers. Four are ECO outlets designed to save you money and protect the environment (see below). ENERGY STAR-Certified to Help You Save Money and Protect the Environment By meeting strict EPA efficiency guidelines, this ENERGY STAR-certified UPS system helps you save money and energy. An ECO power-saving option features four ECO outlets—three surge-only, one surge- and battery-protected—that turn off automatically when the device connected to the Battery Backup Master Outlet is powered down or in sleep mode. These outlets are recommended for printers, desk lamps and other non-essential peripherals that don’t need to be operational all the time. Even Backs up Essential Data When You Aren’t Around Use the included USB cable to connect the USB-B port to your computer. Working with Tripp Lite’s free downloadable PowerAlert® software, this optional feature can enable safe unattended system shutdown and file saves in the event of a prolonged power failure when you aren’t around. Automatic Voltage Regulation (AVR) Corrects Low-Voltage Conditions AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. The ECO1300LCD can correct brownouts as low as 86V back to nominal 120V power without drawing on the battery backup needed to support your equipment during a blackout. 316 Joules Fight Back Against Unexpected Power Surges A 316-joule surge suppression rating protects connected components from the harmful effects of power surges. Dual network data line surge suppression jacks protect a wired peripheral from dangerous surges on a single 10/100Base-T or dial-up network connection. USB Charging Ports Keep Mobile Devices Fully Powered for Immediate Use Two 5V USB ports share 2.1 amps of maximum charge current for charging smartphones, tablets, MP3 players and other essential mobile devices compatible with USB chargers. These ports are intended only for USB charging, which is available when the UPS system is turned on and receiving utility power. Combats Electromagnetic Interference That Can Harm Equipment Various electromagnetic and radio sources found in virtually every home and business can cause disruptive interference on the AC line. Known as EMI (electromagnetic interference) and RFI (radio frequency interference), this line noise is a common cause of performance problems and can lead to incremental hardware damage, data corruption and audio/video transmission problems. The ECO1300LCD incorporates technology that filters out disruptive line noise so that it won’t affect your equipment. Easy-to-Read LCD Reports Real-Time UPS and Power Status The front-panel LCD displays a variety of UPS and site electrical conditions, including UPS operating mode, voltage, frequency, load level, battery charge level, wiring fault and estimated runtime remaining. A built-in audible alarm sounds to warn you of a low battery or overload conditions. Tower Form Factor for Easy Placement in Your Workspace or Media Center The long-lasting ABS housing fits easily on a desktop, shelf or anywhere else convenient to your workstation or home theater. The six-foot power cord connects to a properly grounded AC wall outlet. The right-angle NEMA 5-15P plug allows easier connection in tight spaces.



Specification:



Power
Output power	900 W
Input operation voltage (min)	120 V
Input operation voltage (max)	120 V
Output operation voltage (min)	110 V
Output operation voltage (max)	120 V
Surge energy rating	316 J
Maximum current	12 A
Output power capacity	1.44 kVA
Efficiency (On-line mode)	97%
Input frequency	50/60 Hz
Ports & interfaces
Socket circuit breaker	Yes
USB port	Yes
AC outlets quantity	10 AC outlet(s)
AC outlet types	NEMA 5–15R
Power plug	NEMA 5-15P
Modem (RJ-11) ports	1
Ethernet LAN (RJ-45) ports	1
Performance
Audible alarm modes	Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Sine
Number of input phases	1
EMI/RFI noise filtering	Yes
Audible alarm(s)	Yes
Transfer time (Line Mode to Battery Mode)	6 ms
Features
Country of origin	Vietnam
Audible alarm modes	Fault, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Sine
Number of input phases	1
Output power	900 W
Input operation voltage (min)	120 V
Input operation voltage (max)	120 V
Output operation voltage (min)	110 V
Output operation voltage (max)	120 V
Surge energy rating	316 J
Maximum current	12 A
EMI/RFI noise filtering	Yes
Audible alarm(s)	Yes
Output power capacity	1.44 kVA
Efficiency (On-line mode)	97%
Socket circuit breaker	Yes
Transfer time (Line Mode to Battery Mode)	6 ms
Input frequency	50/60 Hz
Battery
Typical backup time at half load	12 min
Typical backup time at full load	3 min
Battery recharge time(90%)	7 h
Design
Country of origin	Vietnam
Form factor	Tower
Product colour	Black
Cooling type	Passive
Housing material	Acrylonitrile butadiene styrene (ABS)
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Technical details
Sustainability certificates	RoHS, ENERGY STAR
Cooling
Cooling type	Passive
Weight & dimensions
Package width	7.48" (190 mm)
Package depth	19.5" (495 mm)
Package height	14.5" (369.1 mm)
Weight	26.5 lbs (12 kg)
Width	3.9" (99.1 mm)
Package weight	28 lbs (12.7 kg)
Height	11" (279.4 mm)
Depth	16.1" (410 mm)
Packaging data
Manual	Yes
Cables included	USB cable
Package width	7.48" (190 mm)
Package depth	19.5" (495 mm)
Package height	14.5" (369.1 mm)
Package weight	28 lbs (12.7 kg)
Logistics data
Products per master (outer) case	1 pc(s)
Master (outer) case width	7.48" (190 mm)
Master (outer) case length	19.5" (495 mm)
Master (outer) case height	14.5" (369.1 mm)
Master (outer) case gross weight	28 lbs (12.7 kg)
Packaging content
Manual	Yes
Cables included	USB cable
