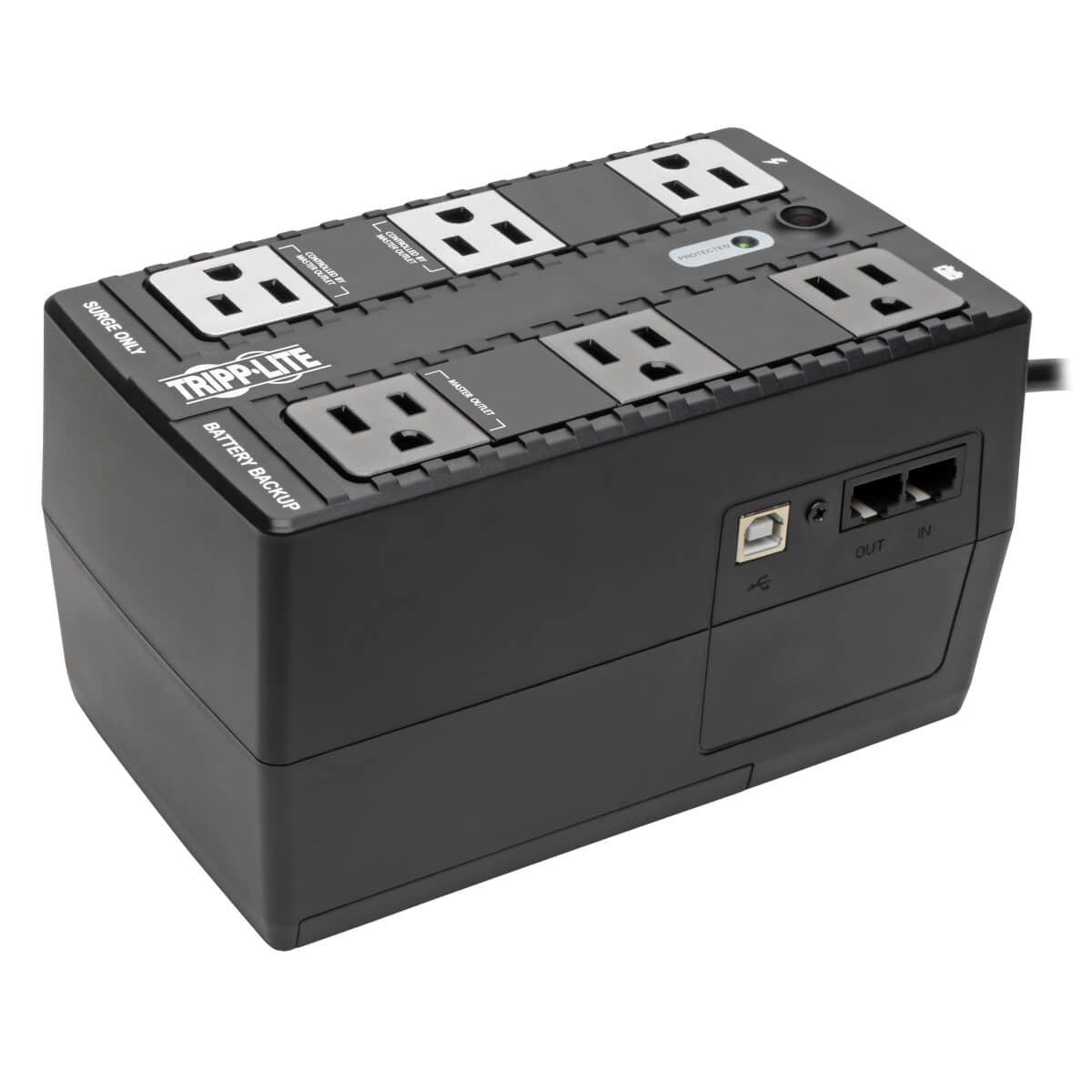

ECO350UPS - Tripp Lite ECO SERIES 120V 350VA 180W ENERGY-SAVINGSTANDBY UPS WITH USB AND 6 OUTLETS

Tripp Lite ECO350UPS. UPS topology: Standby (Offline), Output power capacity: 0.35 kVA, Output power: 210 W. AC outlet types: NEMA 5–15R, Power plug: NEMA 5-15P, AC outlets quantity: 6 AC outlet(s). Typical backup time at full load: 2 min, Typical backup time at half load: 8 min. Form factor: Tower, Product color: Black, Housing material: Acrylonitrile butadiene styrene (ABS). Width: 4.33" (110 mm), Depth: 7.28" (184.9 mm), Height: 4.13" (104.9 mm)



Specification:



Power
Output frequency	50/60 Hz
Output power	300 W
Input operation voltage (min)	110 V
Input operation voltage (max)	120 V
Output operation voltage (min)	115 V
Output operation voltage (max)	120 V
Surge energy rating	316 J
Maximum current	15 A
Output power capacity	0.55 kVA
Input frequency	60 Hz
Ports & interfaces
Cable length	59.1" (1.5 m)
USB port	Yes
AC outlets quantity	10 AC outlet(s)
AC outlet types	NEMA 5–15R
Power plug	NEMA 5-15P
USB 2.0 ports quantity	1
Modem (RJ-11) ports	1
Ethernet LAN (RJ-45) ports	1
Performance
UPS topology	Standby (Offline)
Waveform	Pure sine
Number of input phases	1
LED indicators	Yes
EMI/RFI noise filtering	Yes
Surge protection	Yes
Surge protection features	Telephone
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Country of origin	Vietnam
UPS topology	Standby (Offline)
Waveform	Pure sine
Number of input phases	1
Output power	300 W
Input operation voltage (min)	110 V
Input operation voltage (max)	120 V
Output operation voltage (min)	115 V
Output operation voltage (max)	120 V
Surge energy rating	316 J
Maximum current	15 A
EMI/RFI noise filtering	Yes
Surge protection	Yes
Surge protection features	Telephone
Audible alarm(s)	Yes
Output power capacity	0.55 kVA
Input frequency	60 Hz
Battery
Battery voltage	12 V
Typical backup time at half load	5 min
Typical backup time at full load	1.2 min
Cold start	Yes
Design
Country of origin	Vietnam
Form factor	Tower
LED indicators	Yes
Product colour	Black
Certification	UL1778, CSA, NOM, FCC
Cable length	59.1" (1.5 m)
Housing material	Acrylonitrile butadiene styrene (ABS)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 90%
Operating altitude	0 - 120000" (0 - 3048 m)
Technical details
Output frequency	50/60 Hz
Sustainability certificates	RoHS
Weight & dimensions
Package width	5.67" (144 mm)
Package depth	10.9" (275.8 mm)
Package height	7.36" (186.9 mm)
Weight	3.97 lbs (1.8 kg)
Width	4.33" (110 mm)
Package weight	5.2 lbs (2.36 kg)
Height	4.13" (104.9 mm)
Depth	7.28" (184.9 mm)
Packaging data
Manual	Yes
Cables included	USB cable
Package width	5.67" (144 mm)
Package depth	10.9" (275.8 mm)
Package height	7.36" (186.9 mm)
Package weight	5.2 lbs (2.36 kg)
Logistics data
Products per master (outer) case	8 pc(s)
Master (outer) case width	11.3" (286 mm)
Master (outer) case length	23.3" (591.8 mm)
Master (outer) case height	15.5" (394 mm)
Master (outer) case gross weight	36.8 lbs (16.7 kg)
Master (outer) case GTIN (EAN/UPC)	10037332211061
Certificates
Certification	UL1778, CSA, NOM, FCC
Packaging content
Manual	Yes
Cables included	USB cable
