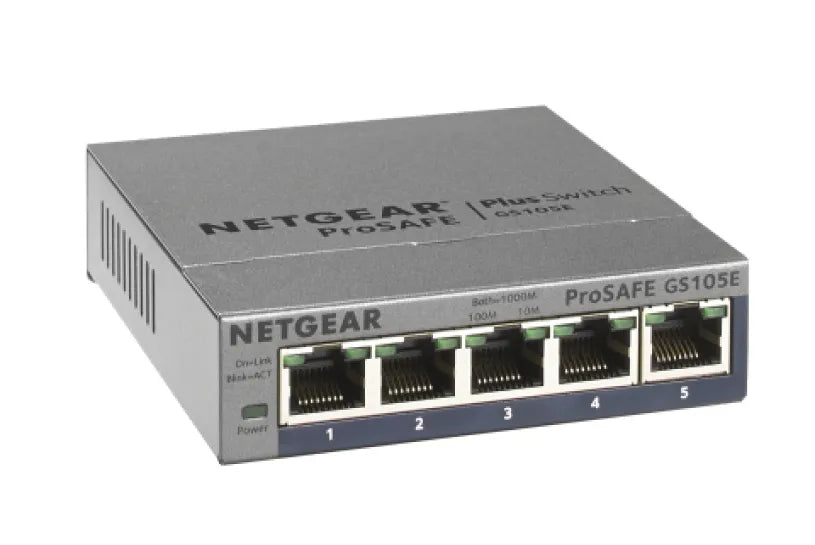

GS105E-200NAS - Netgear PROSAFE PLUS 5 PORT GIGABIT SWITCH

Gigabit Plus Switch Series (GS105Ev2) 5-Port Gigabit Plus Switch NETGEAR Plus Switches are an exceptional value for businesses looking to add intelligence to their network beyond what unmanaged switches can provide. More Capabilities beyond Plug-and-play Connectivity Today€™s growing businesses demand and rely more on their network to carry out mission-critical business activities. Companies are putting more network traffic and applications on their Ethernet infrastructure. For example, the increasing deployments of VoIP phones and IP cameras require more than simple plug-and-play connectivity. It needs the network intelligence to separate the voice and video traffic from data, and prioritize them accordingly. Additionally, Internet-based applications such as Hotmail and Google Calendaring have made keeping the network up a business-critical need. However, companies do not necessarily have more money or advanced training to deal with complex managed switches. The NETGEAR ProSAFE Plus Switches meet this growing need by providing fundamental network features that will help optimize the performance of business networks. ProSAFE Plus Switches also offer traffic monitoring for users to observe traffic behavior. If there are connectivity issues, these switches can identify and even locate connection problems via cable diagnostic test. To optimize traffic through the switches, ProSAFE Plus Switches offer both port and tag-based prioritization to keep latency-sensitive traffic moving ahead of less critical packets. Also, ProSAFE Plus Switches offer port and 802.1Q-based VLAN as a means of improving security and network performance. ProSAFE Plus Switches are an upgrade from the plug-and-play Unmanaged Switch, delivering great value for empowering your network, delivering great value to the end user.



Specification:



Ports & interfaces
Copper ethernet cabling technology	1000Base-T, 100Base-TX, 10Base-T
I/O ports	5x 10/100/1000 (RJ-45)
Basic switching RJ-45 Ethernet ports quantity	5
Technical details
Mean time between failures (MTBF)	87600 h
Management features
Switch type	Unmanaged
Network
Copper ethernet cabling technology	1000Base-T, 100Base-TX, 10Base-T
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z
Full duplex	Yes
Flow control support	Yes
Data transmission
MAC address table	8000 entries
Supported data transfer rates	10/100/1000 Mbps
Maximum data transfer rate	1 Gbit/s
Certificates
Safety	UL (UL 60950), CUL, C-Tick, CE Mark, TUV (EN 60950)
Electromagnetic emissions	FCC Class A & VCCI Class A, CE Class A, MIC
Design
Safety	UL (UL 60950), CUL, C-Tick, CE Mark, TUV (EN 60950)
Performance
Mean time between failures (MTBF)	87600 h
Compatible operating systems	Windows, Mac OS, NetWare, Linux
System requirements
Compatible operating systems	Windows, Mac OS, NetWare, Linux
Power
Power consumption (typical)	14.4 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Weight	17.3 oz (490 g)
Other features
Latency	20 µs
Dimensions (WxDxH)	6.22 x 4.13 x 0.984" (158 x 105 x 25 mm)
Bandwidth	10 Gbit/s
Power requirements	12VAC, 1.2A
Networking features	Gigabit Ethernet
Connectivity LEDs	Yes
I/O ports	5x 10/100/1000 (RJ-45)
Electromagnetic emissions	FCC Class A & VCCI Class A, CE Class A, MIC
