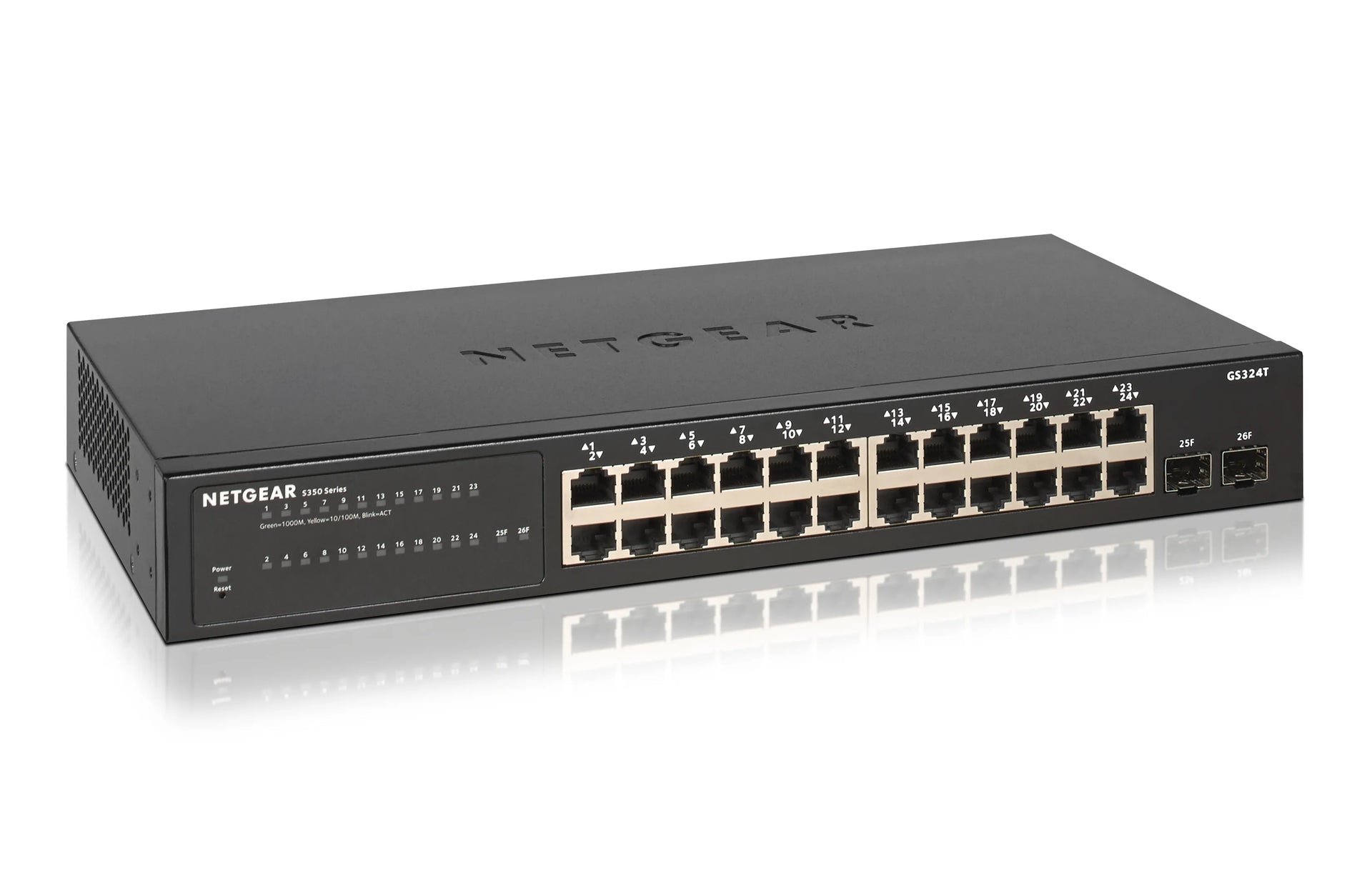

GS324T-100NAS - Netgear S350 SERIES 24-PORT GIGABIT ETHERNET SMART MANAGED PRO SWITCH WITH 2 SFP PORTS (

Connectivity, Security and Affordability for Your Smart Business As a leading provider of network equipment for SMBs, NETGEAR understands the importance of reliable and high performance networks that are SMB budget aware. With the growth of virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, SMB networks need to extend beyond simple reliability to performance and security. The NETGEAR S350 Gigabit Smart Managed Pro Switch series is tailored to these essential network needs of your business; delivering unprecedented non-blocking Gigabit bandwidth and solid network security at an affordable cost. Designed for Converged Networks NETGEAR Smart Managed Pro S350 series consists of five switch models, including 8-, 24- and 48-port Gigabit Ethernet switches and 8-, and 24-port Gigabit Ethernet PoE+ switches with 2 or 4 SFP ports for fiber uplinks, offering powerful Layer 2 features, enhanced performance and ease of use. They are purposely designed for converged networks where voice, video, data are all carried on a single network platform. Advanced features such as L2/L3/L4 Access Control Lists (ACLs), Quality of Service (QoS), Link Aggregation Control Protocol (LACP) and Spanning Tree Protocol (STP) will ensure a high-speed and highly secured network environment for your business. Smart Managed switching features for security and performance - Advanced VLAN support for better network segmentation - L2/L3/L4 Access control lists (ACLs) for granular network access control including 802.1x port authentication - QoS (Quality of Service) for traffic prioritization including port-based, 802.1p and L2/L3/L4 DSCP-based - Auto €œdenial-of-service€� (DoS) prevention - Rate limiting and priority queuing for better bandwidth allocation - Port mirroring for network monitoring Network Development Made Easy - Auto Voice VLAN for easy development of VoIP - Auto Video for simple deployment of IP Surveillance - ACL Wizard for a guided tour to set up your network access control - Smart Control Center, a powerful tool for multi-switch discovery, deployment, monitoring and firmware upgrades - PoE Timer for scheduling the on/off time of your PoE powered devices - Easy to manage via web browser-based management GUI or Smart Control Center for multi-switch deployment



Specification:



Network
IGMP snooping	Yes
Networking standards	IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3at,IEEE 802.3az,IEEE 802.3x
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Number of VLANs	256
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto-negotiation	Yes
Virtual LAN features	Port-based VLAN,Private VLAN,Voice VLAN
Virtual LAN features
VLAN support	Yes
Number of VLANs	256
Virtual LAN features	Port-based VLAN,Private VLAN,Voice VLAN
Data transmission
Number of VLANs	256
MAC address table	16000 entries
Switching capacity	52 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Performance
Auto-negotiation	Yes
Noise level	32.8 dB
Firmware upgradeable	Yes
Power
Power connector	AC-in jack
Power consumption (max)	229.9 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	5 A
Technical details
Product colour	Black
Noise level	32.8 dB
Firmware upgradeable	Yes
Rack mounting	No
Management features
ARP inspection	Yes
Switch type	Managed
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Installed SFP modules quantity	2
Power connector	AC-in jack
Security
Loop protection	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP client
Design
Product colour	Black
LED indicators	Yes
Rack mounting	No
Number of fans	2 fan(s)
Indication
LED indicators	Yes
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	24
Total Power over Ethernet (PoE) budget	190 W
Power over Ethernet (PoE)	Yes
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Weight & dimensions
Width	13" (330 mm)
Depth	8.11" (206 mm)
Height	1.69" (43 mm)
Weight	5.93 lbs (2.69 kg)
Packaging data
Cables included	AC
Packaging content
Cables included	AC
