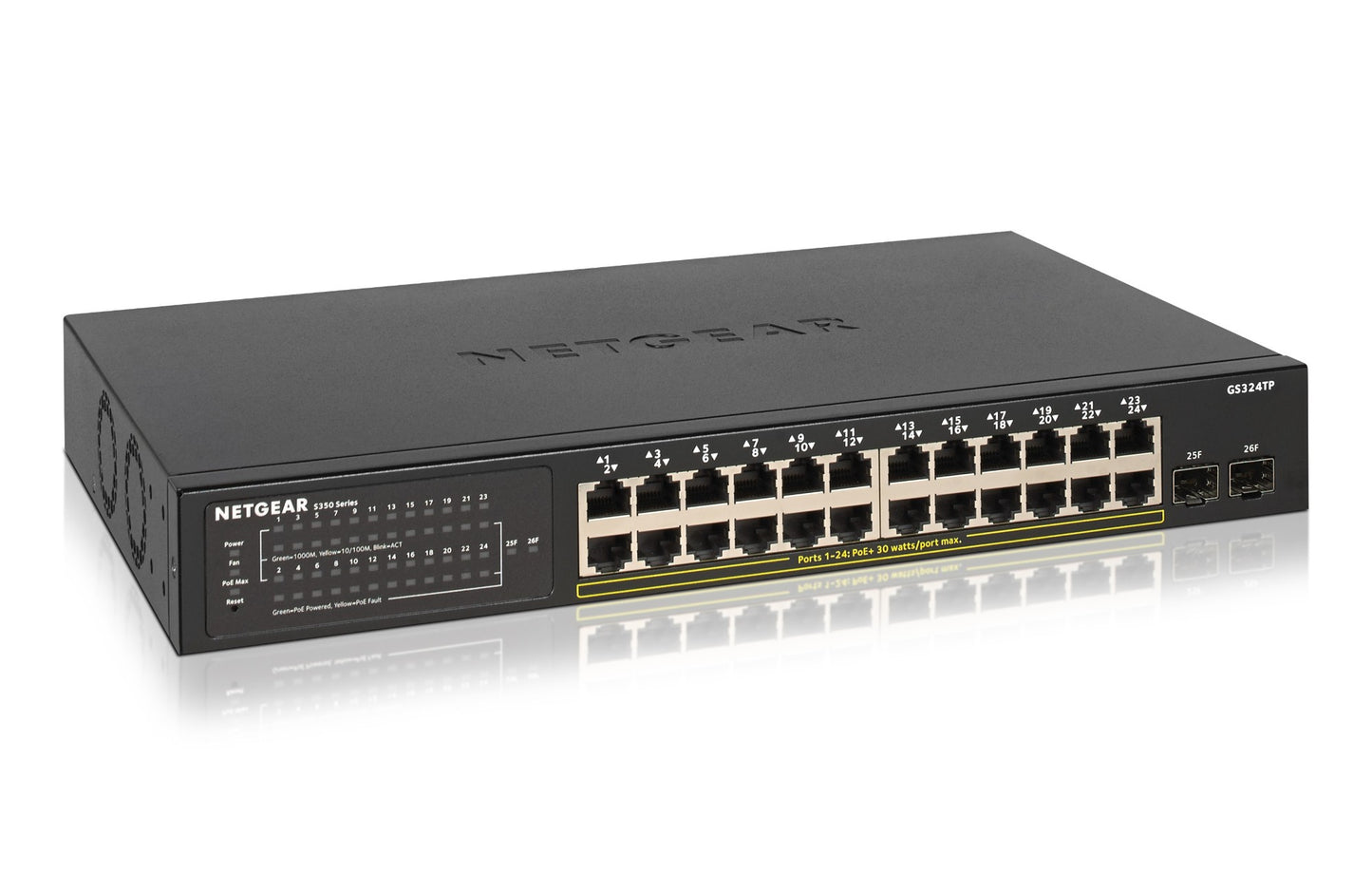

GS324TP-100NAS - Netgear S350 SERIES 24-PORT GIGABIT POE+ ETHERNET SMART MANAGED PRO SWITCH WITH 2 SFP PO

Connectivity, Security and Affordability for Your Smart Business As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of reliable and high performance networks that are SMB budget aware. With the growth of virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, SMB networks need to extend beyond simple reliability to performance and security. The NETGEAR S350 Gigabit Smart Managed Pro Switch series is tailored to these essential network needs of your business; delivering unprecedented non-blocking Gigabit bandwidth and solid network security at an affordable cost. Designed for Converged Networks NETGEAR Smart Managed Pro S350 series consists of five switch models, including 8-, 24- and 48-port Gigabit Ethernet switches and 8-, and 24-port Gigabit Ethernet PoE+ switches with 2 or 4 SFP ports for fiber uplinks, offering powerful Layer 2 features, enhanced performance and ease of use. They are purposely designed for converged networks where voice, video, data are all carried on a single network platform. Advanced features such as L2/L3/L4 Access Control Lists (ACLs), Quality of Service (QoS), Link Aggregation Control Protocol (LACP) and Spanning Tree Protocol (STP) will ensure a high-speed and highly secured network environment for your business. Smart Managed switching features for security and performance - Advanced VLAN support for better network segmentation - L2/L3/L4 Access control lists (ACLs) for granular network access control including 802.1x port authentication - QoS (Quality of Service) for traffic prioritization including port-based, 802.1p and L2/L3/L4 DSCP-based - Auto “denial-of-service” (DoS) prevention - Rate limiting and priority queuing for better bandwidth allocation - Port mirroring for network monitoring Network Development Made Easy - Auto Voice VLAN for easy development of VoIP - Auto Video for simple deployment of IP Surveillance - ACL Wizard for a guided tour to set up your network access control - Smart Control Center, a powerful tool for multi-switch discovery, deployment, monitoring and firmware upgrades - PoE Timer for scheduling the on/off time of your PoE powered devices - Easy to manage via web browser-based management GUI or Smart Control Center for multi-switch deployment



Specification:



Management features
Multicast support	Yes
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
MIB support	RFC 1066 TCP/IP-based MIB, RFC 1213, 1157 SNMPv2c/v3 MIB, RFC 1493, RFC 1643, RFC 1757, RFC 2011, 2012, 2013 SNMPv2 MIB, RFC 2233 SMIv2 MIB, RFC 2358, RFC 2674, RFC 3621, RFC 2819, 2925, RFC 4022, RFC 4113, RFC 4292, RFC 4293
Switch layer	L2+
Ports & interfaces
Copper ethernet cabling technology	1000BASE-T,100BASE-TX,10BASE-T
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	24
Console port	RS-232
Network
IGMP snooping	Yes
Copper ethernet cabling technology	1000BASE-T,100BASE-TX,10BASE-T
Networking standards	IEEE 802.1ag,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ah,IEEE 802.3aq,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
IP routing	Yes
Flow control support	Yes
Broadcast storm control	Yes
10G support	No
Technical details
Product colour	Black
Security
Static port security	Yes
SSH/SSL support	Yes
Security algorithms	802.1x RADIUS
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP server,DHCP client
Multicast features
Multicast support	Yes
Protocols
Management protocols	SNMP v1, v2c, v3
Certificates
Safety	LVD, BSMI
Certification	FCC Part 15 (Class A) CE EMC (Class A) BSMI ENC RoHS
Design
Safety	LVD, BSMI
Product colour	Black
Certification	FCC Part 15 (Class A) CE EMC (Class A) BSMI ENC RoHS
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
