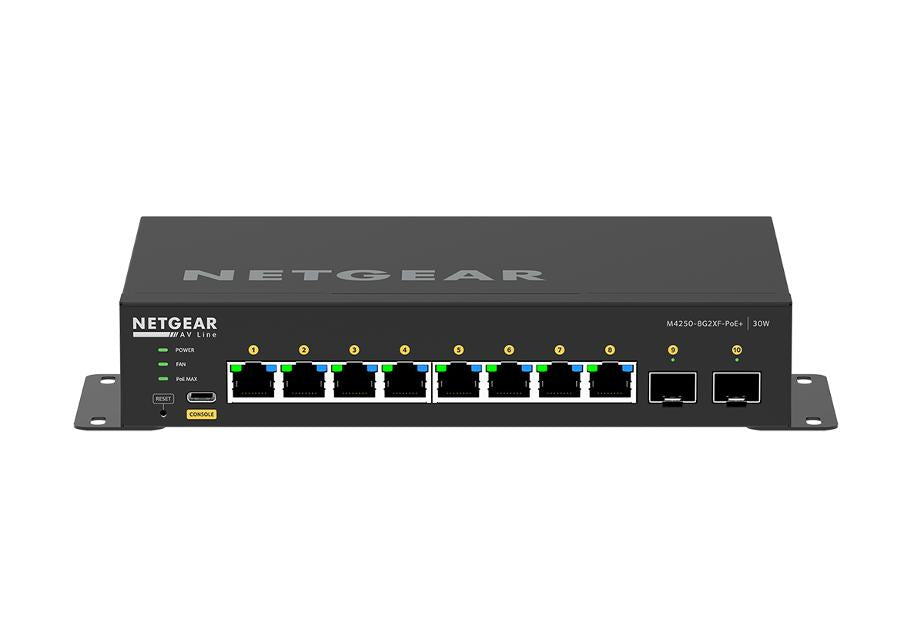

GSM4210PX-100NAS - Netgear AV LINE M4250-8G2XF-POE+ FULLY MANAGED DESKTOP SWITCH

Switching engineered for 1G AV over IP with versatile mounting options for under a table or behind a display. Pre-configured for out of the box functionality! POWERFUL AV SWITCHES MADE SIMPLE Pre-configured to get you up and running faster FAST, EASY CONFIGURATION FOR AV PROS A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks. FOCUS ON THE EVENT NOT FAN NOISE Most models have quiet mode which greatly reduces fan noise, and some models are even fanless. DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX With built-in NETGEAR IGMP Plusâ„¢, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.



Specification:



Management features
Multicast support	Yes
Switch type	Managed
Quality of Service (QoS) support	Yes
Switch layer	L2/L3/L4
Ports & interfaces
Copper ethernet cabling technology	10GBASE-T
SFP+ module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
USB 2.0 ports quantity	1
Console port	RJ-45
Network
IGMP snooping	Yes
Auto-sensing	Yes
Copper ethernet cabling technology	10GBASE-T
Networking standards	IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az
VLAN support	Yes
Number of VLANs	4096
IP routing	Yes
10G support	Yes
Virtual LAN features	Private VLAN
Virtual LAN features
VLAN support	Yes
Number of VLANs	4096
Virtual LAN features	Private VLAN
Data transmission
Number of multicast groups filtered	4000
Number of VLANs	4096
Latency (10 Gbps)	2.74 µs
Number of static routes	64
Packet buffer memory	16 MB
MAC address table	16000 entries
Switching capacity	128 Gbit/s
Jumbo frames support	Yes
Forwarding rate	357 Mpps
Performance
Packet buffer memory	16 MB
Stackable	Yes
Processor frequency	800 MHz
Noise level	39.8 dB
Internal memory	1024 MB
Flash memory	256 MB
Built-in processor	Yes
Harmonized System (HS) code	85176990
Technical details
Form factor	1U
Product colour	Black
Stackable	Yes
Processor frequency	800 MHz
Noise level	39.8 dB
Rack mounting	Yes
Built-in processor	Yes
Security
BPDU filtering/protection	Yes
SSH/SSL support	Yes
Security algorithms	HTTPS, SNMP, SSH
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP server
Multicast features
Number of multicast groups filtered	4000
Multicast support	Yes
Memory
Packet buffer memory	16 MB
Internal memory	1024 MB
Flash memory	256 MB
Design
Form factor	1U
Product colour	Black
Stackable	Yes
Rack mounting	Yes
Number of fans	1 fan(s)
Power
Power consumption (max)	833.2 W
Power supply included	Yes
AC input voltage	110 - 240 V
Power consumption (typical)	577 W
Redundant power supply (RPS) support	Yes
Number of power supply units	1
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	24
Total Power over Ethernet (PoE) budget	480 W
Power over Ethernet (PoE)	Yes
Operational conditions
Heat dissipation	196988 BTU/h
Weight & dimensions
Weight	11.2 lbs (5.09 kg)
Logistics data
Harmonized System (HS) code	85176990
