Intel

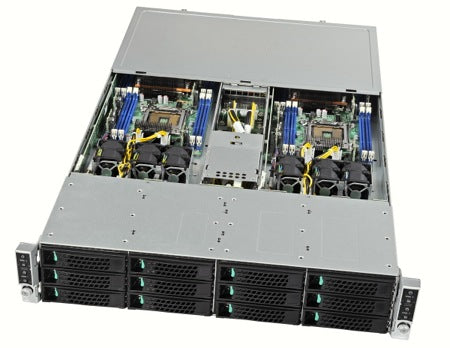

Intel SERVER SYSTEM H2312LPFJR
Intel SERVER SYSTEM H2312LPFJR
SKU:H2312LPFJR
Regular price
$5,991.80 USD
Regular price
Sale price
$5,991.80 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card.
The Intel® Remote Management Module (Intel® RMM) allows you to securely gain access and control servers and other devices from any machine on the network. Remote access includes remote management capability, including power control, KVM, and media redirection, with a dedicated management network interface card (NIC).
Intel® Intelligent Power Node Manager is a platform resident technology that enforces power and thermal policies for the platform. It enables data center power and thermal management by exposing an external interface to management software through which platform policies can be specified. It also enables specific data center power management usage models such as power limiting.
The Intel® Remote Management Module (Intel® RMM) allows you to securely gain access and control servers and other devices from any machine on the network. Remote access includes remote management capability, including power control, KVM, and media redirection, with a dedicated management network interface card (NIC).
Intel® Intelligent Power Node Manager is a platform resident technology that enforces power and thermal policies for the platform. It enables data center power and thermal management by exposing an external interface to management software through which platform policies can be specified. It also enables specific data center power management usage models such as power limiting.
Specification:
| Hard drive | |
|---|---|
| RAID levels | 0,1,10 |
| Hot-swap HDD bays | Yes |
| Optical drive | |
| Optical drive type | No |
| Processor | |
| Processor socket | LGA 1356 (Socket B2) |
| Processor family | Intel |
| Number of processors supported | 8 |
| Supported processor frequency (max) | 24 GHz |
| Intel Xeon series | E5-2400 |
| Compatible processor series | Intel® Xeon® |
| Memory | |
| Supported UDIMM clock speeds | 1333 MHz |
| Supported RDIMM clock speeds | 1333,1600 MHz |
| Supported memory types | DDR3-SDRAM |
| Number of DIMM slots | 48 |
| Memory form factor | 240-pin DIMM |
| Maximum UDIMM memory | 1536 GB |
| Maximum RDIMM memory | 1536 GB |
| Maximum internal memory | 1536 GB |
| ECC | Yes |
| Storage | |
| Number of storage drives supported | 12 |
| Supported storage drive interfaces | Serial Attached SCSI (SAS), Serial ATA, Serial ATA II |
| RAID levels | 0,1,10 |
| Hot-swap HDD bays | Yes |
| Embedded USB (eUSB) SSD option | No |
| Storage drive sizes supported | 2.5,3.5" |
| Performance | |
| Trusted Platform Module (TPM) version | 1.2 |
| Trusted Platform Module (TPM) | Yes |
| Optical drive type | No |
| On-site support | Yes |
| Intel Remote Management Module Support | Yes |
| Intel On-Demand Power Redundancy Technology | Yes |
| Intel Intelligent Power Node Manager | Yes |
| Integrated BMC with IPMI | Yes |
| Backplanes support | Yes |
| Network | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ports & interfaces | |
| USB 2.0 ports quantity | 8 |
| Serial ports quantity | 4 |
| Number of SATA connectors | 16 |
| InfiniBand | Yes |
| Ethernet LAN (RJ-45) ports | 8 |
| Expansion slots | |
| PCI Express x8 slots | 8 |
| PCI Express slots version | 3.0 |
| Features | |
| Trusted Platform Module (TPM) version | 1.2 |
| Trusted Platform Module (TPM) | Yes |
| Optical drive type | No |
| On-site support | Yes |
| Integrated BMC with IPMI | Yes |
| Backplanes support | Yes |
| Technical details | |
| Number of storage drives supported | 12 |
| Trusted Platform Module (TPM) version | 1.2 |
| Trusted Platform Module (TPM) | Yes |
| Redundant fans support | No |
| Rack-Friendly board | Yes |
| Rack rails | Yes |
| On-site support | Yes |
| Intel Remote Management Module Support | Yes |
| Intel On-Demand Power Redundancy Technology | Yes |
| Intel Intelligent Power Node Manager | Yes |
| Integrated BMC with IPMI | Yes |
| InfiniBand | Yes |
| Heat sink included | Yes |
| Heat sink | 8 |
| Embedded USB (eUSB) SSD option | No |
| CPU configuration (max) | 8 |
| Chassis type | Rack (2U) |
| Backplanes support | Yes |
| Colour | |
| Product colour | Black, Metallic |
| Processor special features | |
| Intel Remote Management Module Support | Yes |
| Intel On-Demand Power Redundancy Technology | Yes |
| Intel Intelligent Power Node Manager | Yes |
| Design | |
| Redundant fans support | No |
| Rack-Friendly board | Yes |
| Rack rails | Yes |
| Heat sink included | Yes |
| Heat sink | 8 |
| Product colour | Black, Metallic |
| Chassis type | Rack (2U) |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Power supply type | AC |
| Power supply | 1200 W |
| Number of power supply units | 2 |
| Weight & dimensions | |
| Width | 17.2" (436.8 mm) |
| Height | 30.5" (774.7 mm) |
| Depth | 3.5" (88.9 mm) |
| Other features | |
| On-board graphics adapter | Yes |
| CPU configuration (max) | 8 |
