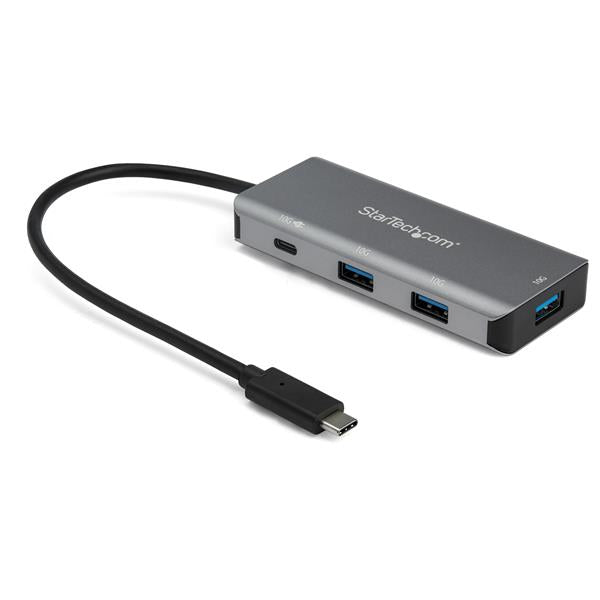

HB31C3A1CPD3 - StarTech.com PORTABLE 4 PORT USB-C HUB (USB 3.1/3.2 GEN 2 SUPERSPEED 10GBPS) - USB-C ADAPTER

USB Type-C™ Gen 2 | PD 3.0 | 25 cm Cable | Bus-Powered | Mac & Windows®

Expand the connectivity of your USB-C laptop with this new generation USB-C Gen 2 hub offering 10Gbps supporting greater bandwidth to connected devices and faster data transfer speeds. This bus-powered 4-Port USB-C hub plugs into your laptop’s USB Type-C or Thunderbolt 3 port, adding one USB-C port and three USB-A ports, while allowing charging of your laptop.

Power Delivery 3.0 for Laptop Charging

The USB-C hub can support Power Delivery (3.0) pass through, when using a USB-C power adapter, to charge your laptop, with 15W reserved to power the hub itself.

Convenient Portability and Easy Setup  

This compact, lightweight USB-Type-C hub is a convenient and portable addition to your laptop accessories.  The USB-C cable is built-in, and hub is bus-powered, so it draws its power directly from your computer’s USB-C port, with no external power required. That means fewer cables to carry with you when you travel. The hub can draw up to 15 Watts of power from the connected host and operating multiple bus powered devices at one time with the total available power dependent on the connected host.

The extended length attached cable of 9.8” (25 cm) provides more flexibility for longer reach connection requirements and plug-and-play installation. 

Connect More USB Devices

With ports for both USB-C and USB-A peripherals, this hub is backwards compatible supporting both legacy and new USB devices. You can connect flash drives, video capture devices and external hard drives, with fast data transfer speeds of up to 10Gbps. This 4-port USB Type-C hub enhances your productivity, giving you the connections, you need while you work.

HB31C3A1CPD3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- 4 PORT USB-C HUB WITH Power Delivery: From a 10Gbps USB-C host port, add 3x USB-A & 1x USB-C ports w/ this USB 3.2 Gen 2 (USB 3.1 Gen 2) SuperSpeed 10Gbps hub; USB 3.0/2.0 Compatible; USB Bus powered
- 100W POWER DELIVERY PASSTHROUGH: Use a USB-C power adapter to charge laptop (up to 85W) & power the hub/downstream port operation (15W); PD 3.0 prevents USB device drop out when power is added/removed
- COMPACT & PORTABLE: A light weight USB C hub with durable aluminum housing, 9.8in (25 cm) length attached USB Type-C host cable and small form factor [3.7in (95 mm) x 1.8in (45 mm) x 0.6in (1.6 cm)]



Specification:



Ports & interfaces
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Hub interfaces	USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
DC-in jack	Yes
Ports quantity	4
Cable length	39.4" (1 m)
Features
Plug and Play	Yes
LED indicators	Link, Power
Product colour	Black, Gray
Certification	CE, FCC, REACH, RoHS
Cable length	39.4" (1 m)
Data transfer rate	10000 Mbit/s
Housing material	Aluminum, Plastic
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Network
UASP support	Yes
Data transmission
Data transfer rate	10000 Mbit/s
Power
Input current	0.8 A
Power plug type	Type M
Power consumption (typical)	24 W
Output voltage	12 V
Output current	2 A
Input voltage	110 - 240 V
Power supply type	AC
Technical details
Plug and Play	Yes
Product colour	Black, Gray
Performance
Certification	CE, FCC, REACH, RoHS
Plug and Play	Yes
Data transfer rate	10000 Mbit/s
Harmonized System (HS) code	84719000
Weight & dimensions
Weight	3.07 oz (87 g)
Width	2.36" (60 mm)
Depth	3.94" (100 mm)
Height	0.984" (25 mm)
Package width	2.01" (51 mm)
Package depth	8.39" (213 mm)
Package height	5.87" (149 mm)
Package weight	17.6 oz (500 g)
Packaging data
Package width	2.01" (51 mm)
Package depth	8.39" (213 mm)
Package height	5.87" (149 mm)
Package weight	17.6 oz (500 g)
Quantity per pack	1 pc(s)
Packaging content
Included power plug types	ANZ, EU, JP, NA, UK
Cables included	USB Type-C
AC adapter included	Yes
Design
LED indicators	Link, Power
Product colour	Black, Gray
Certification	CE, FCC, REACH, RoHS
Cable length	39.4" (1 m)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Certificates
Certification	CE, FCC, REACH, RoHS
Indication
LED indicators	Link, Power
Other features
Chipset	Realtek - RTS5423
