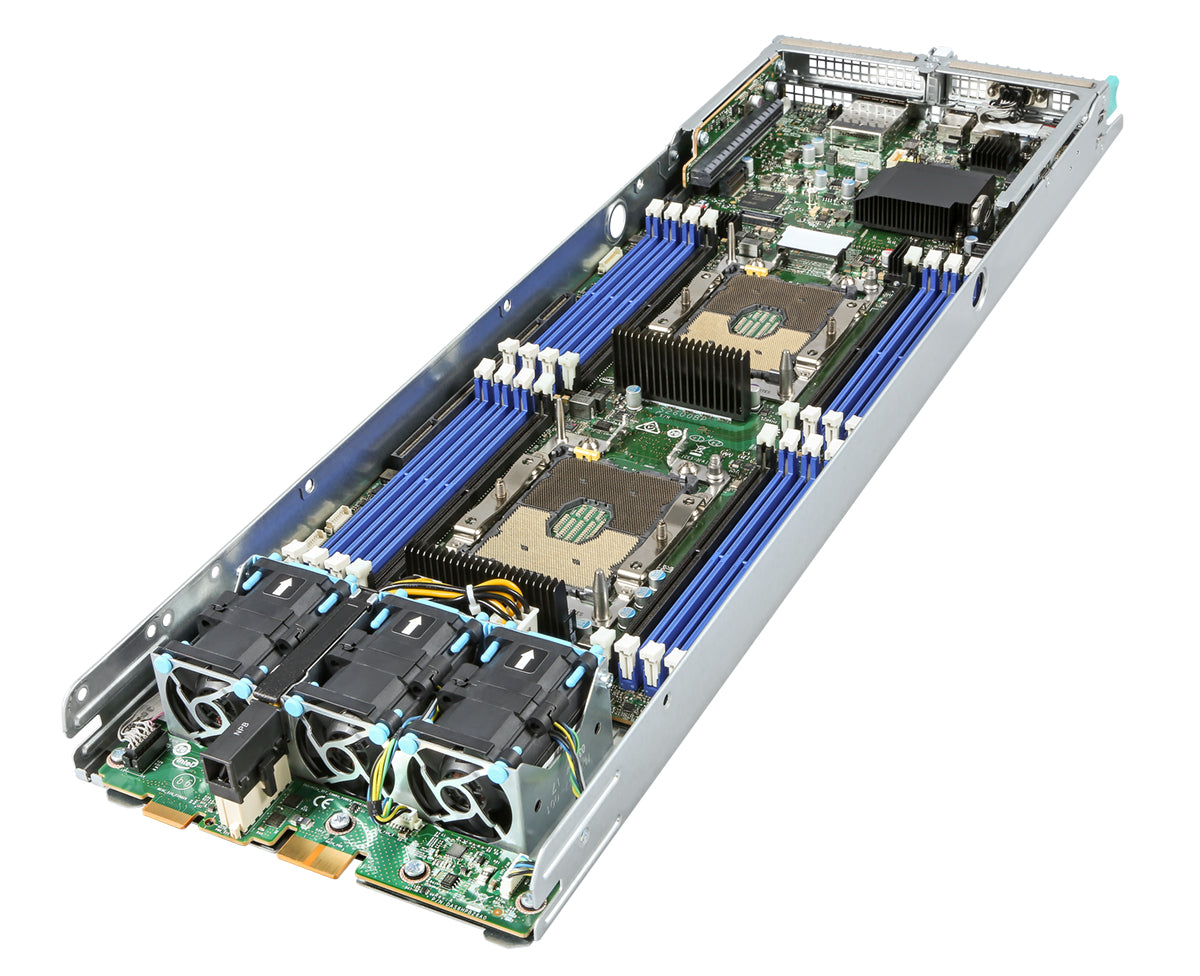

Intel COMPUTE MODULE HNS2600BPB24R, SINGLE

Intel ® Compute Module HNS2600BPB24R. Motherboard chipset: Intel® C621, Processor socket: LGA 3647 (Socket P). Supported memory types: DDR4-SDRAM, Maximum internal memory: 3000 GB, Supported RDIMM clock speeds: 2133,2400,2666,2933 MHz. RAID levels: 0, 1, 5, 10, 50. Ethernet interface type: 10 Gigabit Ethernet. USB version: 3.2 Gen 1 (3.1 Gen 1)



Specification:



Processor
PCI Express slots version	3.0
Number of QPI links	2
Thermal Design Power (TDP)	165 W
Maximum number of PCI Express lanes	80
Memory types supported by processor	DDR4-SDRAM
ECC supported by processor	Yes
Memory
Maximum internal memory	2800 GB
ECC	Yes
Supported memory types	DDR4-SDRAM
Memory channels	Dodeca-channel
Graphics
On-board graphics adapter	No
Graphics output	VGA
Ports & interfaces
VGA (D-Sub) ports quantity	1
Ethernet LAN (RJ-45) ports	2
Serial ports quantity	1
USB version	3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	2
Performance
Motherboard chipset	Intel® C621
Harmonized System (HS) code	8473301180
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G157815L2
Trusted Platform Module (TPM) version	2.0
Status	Launched
Software
Compatible operating systems	VMware*, Windows Server 2019*, Windows Server 2016*, Red Hat Enterprise Linux 7.6*, Red Hat Enterprise Linux 7.5*, SUSE Linux Enterprise Server 15*, SUSE Linux Enterprise Server 12 SP4*, Ubuntu*
Processor special features
Intel® Optane™ Memory Ready	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel Trusted Execution Technology	Yes
Embedded options available	No
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
