Add 2 DIN Rail-mountable RS232 Serial ports to any system through USB

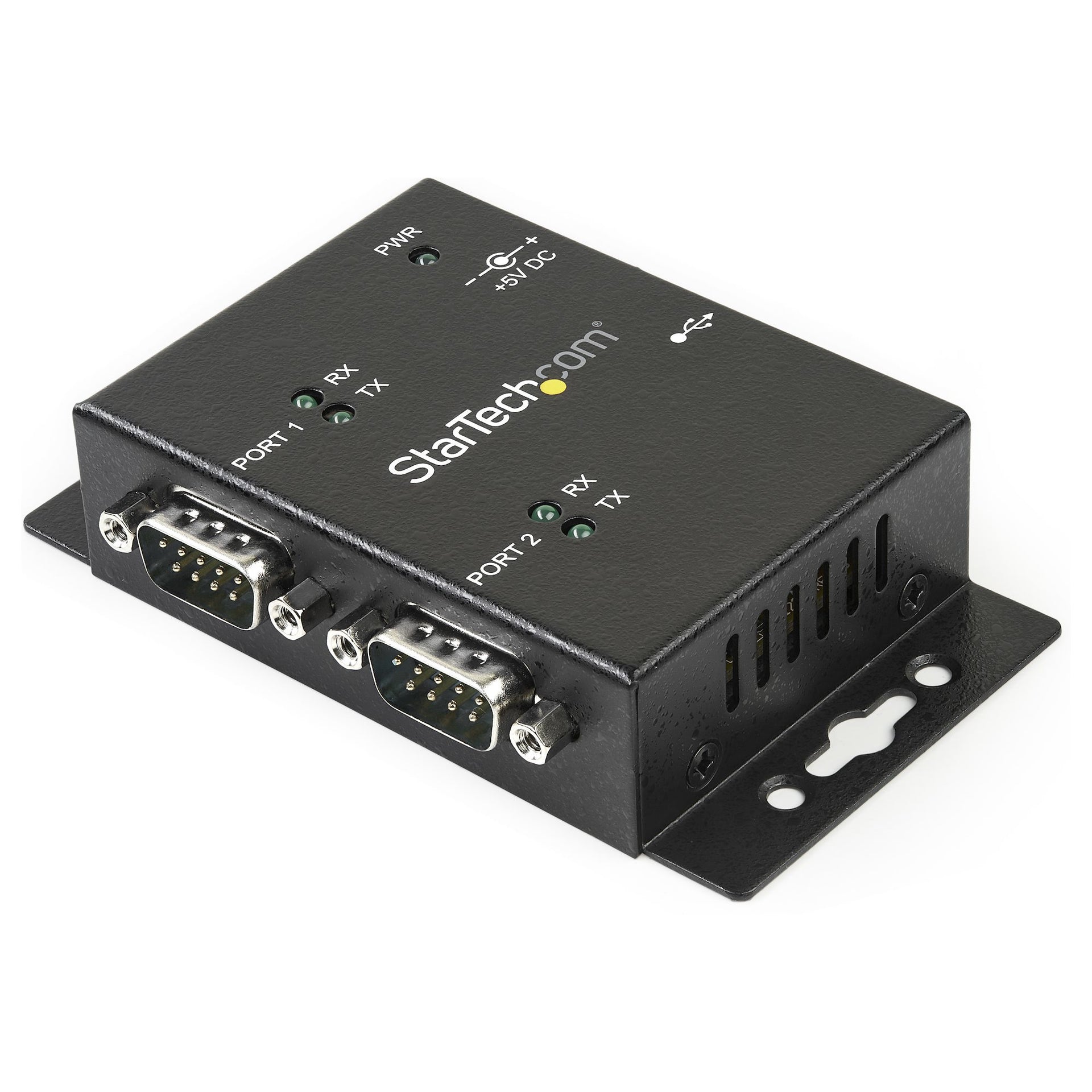

The ICUSB2322I 2-Port Industrial USB to Serial Hub with DIN Rail Clips converts a single USB port into two RS232 serial ports, enabling you to connect to, monitor and control your serial devices.

Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this USB to Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.

This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the ports provided by the adapter.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Integrated wallmount brackets and included DIN Rail clips for versatile mounting options
- Rugged all-metal enclosure for added durability in harsh environments
- Easy plug and play installation, with our USB Powered adapter - no power outlet required



Specification:



Ports & interfaces
Host interface	USB 2.0 Type-B
Hub interfaces	Serial
RS-232 ports	2
Ports quantity	2
Features
Product colour	Black
Certification	RoHS, CE, FCC
Housing material	Steel
Host interface	USB 2.0 Type-B
Power
Power plug type	Type N
Input voltage	9 - 36 V
Technical details
Product colour	Black
Performance
Certification	RoHS, CE, FCC
Harmonized System (HS) code	84719000
System requirements
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Weight & dimensions
Weight	10.6 oz (300 g)
Width	3.15" (80 mm)
Depth	4.45" (113 mm)
Height	0.906" (23 mm)
Package width	5.63" (143 mm)
Package depth	7.99" (203 mm)
Package height	1.65" (42 mm)
Package weight	15.9 oz (450 g)
Packaging data
Package width	5.63" (143 mm)
Package depth	7.99" (203 mm)
Package height	1.65" (42 mm)
Package weight	15.9 oz (450 g)
Packaging content
Manual	Yes
Cables included	USB
Design
Product colour	Black
Certification	RoHS, CE, FCC
Operational conditions
Operating temperature (T-T)	-10 - 80 °C
Storage temperature (T-T)	-20 - 100 °C
Operating relative humidity (H-H)	5 - 85%
Certificates
Certification	RoHS, CE, FCC
Other features
Chipset	Texas Instruments - TIUSB3410
