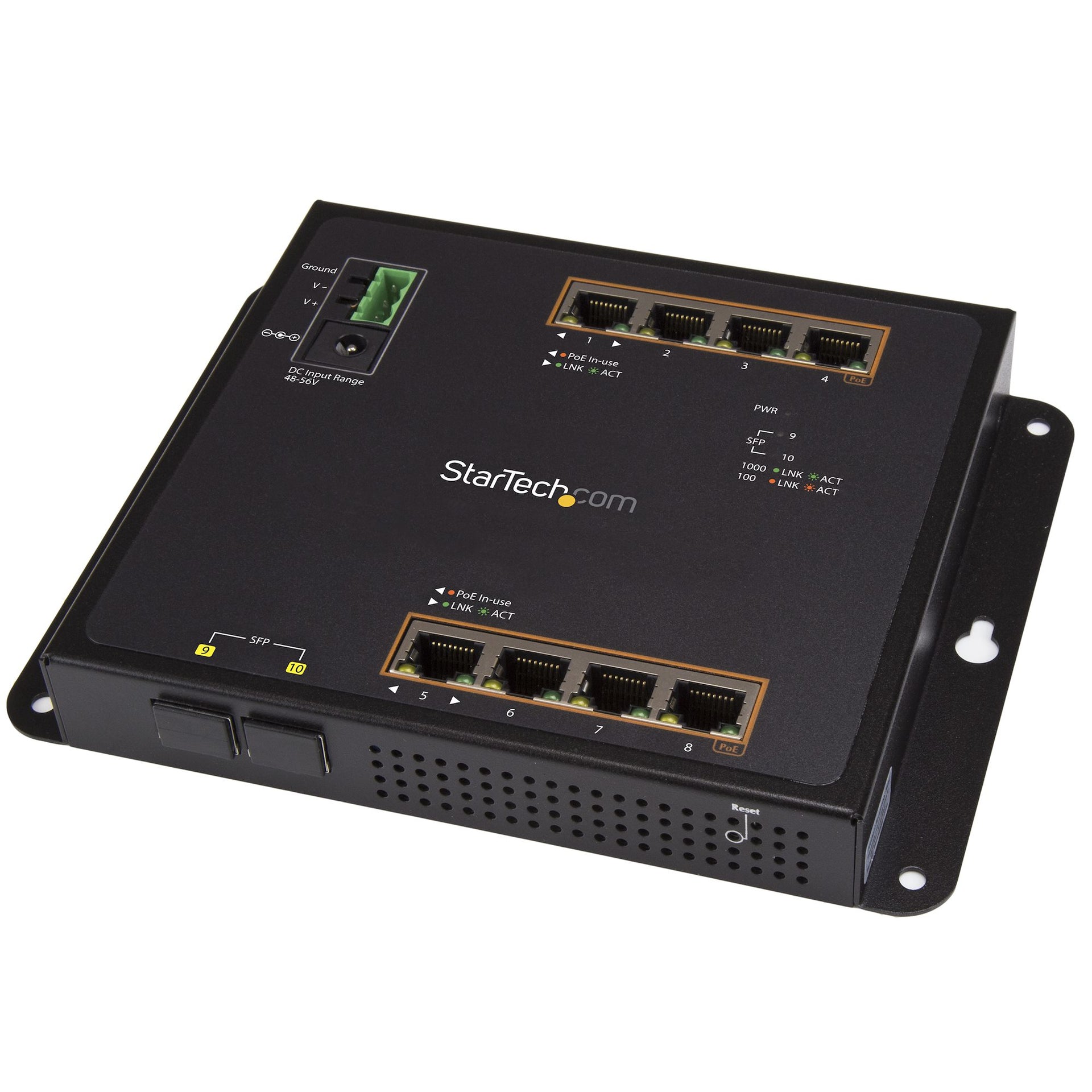

IES101GP2SFW - StarTech.com INDUSTRIAL 8 + 2PORT GIGABIT POE+ SWITCH

Add up to 10 different GbE devices to your network, using 8 RJ45 (PoE+) and 2 fiber-optic connections, with intelligent Layer 2 managementEasily deploy or scale your network with this Gigabit Ethernet switch, by adding eight copper Gigabit Ethernet ports (PoE+) and two fiber-optic SFP slots. This IP30 industrial network switch provides intelligent Layer 2 management. Its rugged, compact design and wall-mount option with front access make it ideal for demanding applications, even where space is limited.Expand your networkThis versatile switch adapts to your network needs by providing two open SFP slots and eight RJ45 Ethernet ports (PoE+), providing both fiber and copper connections in a single network device. The MSA compliant SFP ports are compatible with 100/1000Mbps networks. The network switch enables you to connect up to eight RJ45 PoE+ devices, so different users can share files and devices, such as printers and scanners, over a LAN connection.Supports PoE+ for flexible useDual power input (terminal block and DC plug) provides flexible power options. The switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (200W budget).Wall-mountable with front accessWall-mount the compact Gigabit switch to provide convenient front access to ports and indicators. It’s ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable.Efficient Layer 2 managementThe switch delivers efficient and stable performance, with Layer 2 management capabilities. This lets you control packet traffic on a busy network, and customize your settings to achieve optimal network performance, offering improved efficiency and reliability.Rugged IP30 industrial designThis rugged network switch features an IP30-rated metal housing and extended temperature range of -40°C to 75°C, which makes it ideal for a wide range of operating conditions. The sturdy metal enclosure offers durability, even in harsh industrial environments.Reliable connection for seamless network performanceWith support for 10/100/1000Mbps transfer speeds, this managed switch supports full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily, with little to no configuration required.The IES101GP2SFW is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage



Specification:



Ports & interfaces
Terminal block port	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Performance
Auto-negotiation	Yes
Buffer size	128 KB
Mean time between failures (MTBF)	693764 h
Harmonized System (HS) code	85176990
Technical details
Product colour	Black
Mean time between failures (MTBF)	693764 h
Housing material	Aluminum, Steel
Rack mounting	No
Management features
Switch type	Unmanaged
Network
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Networking standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Data transmission
Jumbo frames	9000
Switching capacity	12 Gbit/s
Jumbo frames support	Yes
Protocols
Supported network protocols	CSMA/CD
Certificates
Safety	EN60950-1
Certification	CE, RoHS, FCC
Design
Wall mountable	Yes
International Protection (IP) code	IP30
DIN rail mounting	Yes
Safety	EN60950-1
Product colour	Black
LED indicators	Activity, Link, PoE, Power
Housing material	Aluminum, Steel
Certification	CE, RoHS, FCC
Rack mounting	No
Indication
LED indicators	Activity, Link, PoE, Power
Power
Surge protection voltage	2 kV
Surge protection	Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	4
Total Power over Ethernet (PoE) budget	120 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	4.13" (105 mm)
Depth	5.59" (142 mm)
Height	1.69" (43 mm)
Weight	24.7 oz (701.4 g)
Packaging data
Terminal block included	Yes
Quick start guide	Yes
Package width	8.31" (211 mm)
Package depth	6.38" (162 mm)
Package height	2.52" (64 mm)
Package weight	33.4 oz (946.4 g)
Logistics data
Master (outer) case width	14" (355 mm)
Master (outer) case length	13.6" (345 mm)
Master (outer) case height	8.86" (225 mm)
Products per master (outer) case	10 pc(s)
Other features
Terminal block port	Yes
Packaging content
Terminal block included	Yes
Quick start guide	Yes
