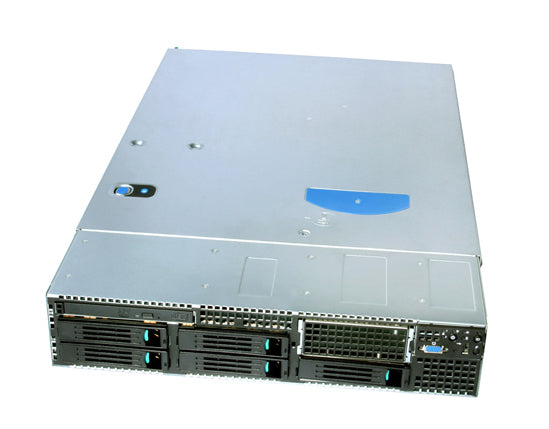

Intel SR2600URLXR BAREBONES-NO POWER CABLE

Intel SR2600URLXR. Motherboard chipset: Intel® 5520, Processor socket: LGA 1366 (Socket B), Processor manufacturer: Intel. Supported memory types: DDR3-SDRAM, Maximum internal memory: 192 GB. Supported storage drive interfaces: Serial Attached SCSI (SAS). Ethernet interface type: Gigabit Ethernet, LAN controller: Intel® 82575EB. Market segment: Server, Export Control Classification Number (ECCN): 5A992C, Commodity Classification Automated Tracking System (CCATS): G135162



Specification:



Hard drive
Hot-swap HDD bays	Yes
Processor
Built-in processor	No
Maximum internal memory supported by processor	192 GB
Processor socket	LGA 1366 (Socket B)
Number of processors supported	2
Motherboard chipset	Intel® 5520
Processor manufacturer	Intel
Design
Product type	System
Product family	2U server system
Product codename	Urbanna
On/off switch	Yes
Redundant fans support	Yes
Rack-Friendly board	Yes
Rack rails	Yes
LED indicators	Yes
Heat sink included	Yes
Product colour	Black, Silver
Chassis type	Rack (2U)
Memory
Supported memory types	DDR3-SDRAM
Number of DIMM slots	12
Maximum internal memory	192 GB
ECC	Yes
Storage
Number of storage drives supported	6
Number of 3.5" bays	6
Number of 2.5" bays	6
Supported storage drive interfaces	Serial Attached SCSI (SAS), Serial ATA
Hot-swap HDD bays	Yes
Storage drive sizes supported	2.5,3.5"
Performance
Intel Server Customization Technology	No
Intel Quiet Thermal Technology	No
Intel Efficient Power Technology	No
Intel Build Assurance Technology	No
Intel Advanced Management Technology	No
Intel Remote Management Module Support	AXXRMM3
Intel Intelligent Power Node Manager	Yes
Integrated BMC with IPMI	Yes
Backplanes support	Yes
Network
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Ports & interfaces
USB ports quantity	5
VGA (D-Sub) ports quantity	1
USB 2.0 ports quantity	5
Serial ports quantity	2
Number of SATA connectors	6
Ethernet LAN (RJ-45) ports	2
Number of SAS ports	8
Expansion slots
PCI Express x8 (Gen 2.x) slots	5
PCI Express x8 slots	5
PCI Express slots version	3.0
Features
ARK ID	48667
Integrated BMC with IPMI	Yes
Backplanes support	Yes
Market segment	Server
Harmonized System (HS) code	8473305100
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G135162
Intel Node Manager	Yes
Backplanes	Included
Product codename	Urbanna
Technical details
ARK ID	48667
USB ports quantity	5
Product type	System
PCI Express x8 (Gen 2.x) slots	5
Packaging content	(5) Drive carriers; (1) Bridge board; (1) Active butterfly riser; (1) Midplane2 board; (1) SAS/SATA backplane; (1) Redundant 750W power supply; (1) Standard control panel; (6) Redundant hotswap fans with ducting; (2) heatsink; (1) Tape drive filler panel; (1) Rack handle set (Pair)
Number of storage drives supported	6
Number of 3.5" bays	6
Number of 2.5" bays	6
Intel Server Management Software	Yes
Connector for Intel I/O Expansion Module x4 Gen 1	1
Maximum internal memory supported by processor	192 GB
On/off switch	Yes
Intel Server Customization Technology	No
Intel Quiet Thermal Technology	No
Intel Efficient Power Technology	No
Intel Build Assurance Technology	No
Intel Advanced Management Technology	No
Redundant fans support	Yes
Rack-Friendly board	Yes
Rack rails	Yes
Intel Remote Management Module Support	AXXRMM3
Intel Intelligent Power Node Manager	Yes
Integrated BMC with IPMI	Yes
Heat sink included	Yes
CPU configuration (max)	2
Chassis type	Rack (2U)
Backplanes support	Yes
Target market	Cloud/Datacenter
Supported RAID configuration	Upgrade with AXXRAKSAS2 and AXXMINIDIMM512
Supported board	Intel Server Board S5520UR
Status	Discontinued
Redundant fans	Supported
Market segment	Server
Launch date	Q1'09
Last change	63903513
Extended warranty available for purchase (select countries)	Yes
Expected discontinuance date	1H 2013
Chassis dimensions	3.44 x 16.93 x 27.95"
Additional information URL	https://www-ssl.intel.com/content/www/us/en/server-systems/server-board-s5520ur-systems.html?
3.5" HDD support	Supports up to six hot-swap 3.5" SAS/SATA drives
2.5" HDD support	Requires: 3.5" to 2.5'' Hard Disk Drive Converter Kit AXX25DRVADPTR
Images Type Map
Maximum memory	192 GB
Harmonized System (HS) code	8473305100
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G135162
Colour
Product colour	Black, Silver
Indication
LED indicators	Yes
Processor special features
Intel Server Management Software	Yes
Connector for Intel I/O Expansion Module x4 Gen 1	1
Intel Server Customization Technology	No
Intel Quiet Thermal Technology	No
Intel Efficient Power Technology	No
Intel Build Assurance Technology	No
Intel Advanced Management Technology	No
Intel Remote Management Module Support	AXXRMM3
Intel Intelligent Power Node Manager	Yes
Power
Number of redundant power supplies installed	1
Redundant power supply (RPS) support	Yes
Power supply type	AC
Power supply	750 W
Weight & dimensions
Width	3.44" (87.4 mm)
Height	3.44" (87.4 mm)
Depth	28" (710 mm)
Packaging data
Packaging content	(5) Drive carriers; (1) Bridge board; (1) Active butterfly riser; (1) Midplane2 board; (1) SAS/SATA backplane; (1) Redundant 750W power supply; (1) Standard control panel; (6) Redundant hotswap fans with ducting; (2) heatsink; (1) Tape drive filler panel; (1) Rack handle set (Pair)
Other features
Product type	System
On-board graphics adapter	Yes
CPU configuration (max)	2
Product family	2U server system
Product codename	Urbanna
Target market	Cloud/Datacenter
Supported RAID configuration	Upgrade with AXXRAKSAS2 and AXXMINIDIMM512
Supported board	Intel Server Board S5520UR
Status	Discontinued
Redundant fans	Supported
Launch date	Q1'09
Last change	63903513
Extended warranty available for purchase (select countries)	Yes
Expected discontinuance date	1H 2013
Chassis dimensions	3.44 x 16.93 x 27.95"
Additional information URL	https://www-ssl.intel.com/content/www/us/en/server-systems/server-board-s5520ur-systems.html?
3.5" HDD support	Supports up to six hot-swap 3.5" SAS/SATA drives
2.5" HDD support	Requires: 3.5" to 2.5'' Hard Disk Drive Converter Kit AXX25DRVADPTR
Images Type Map
Maximum memory	192 GB
