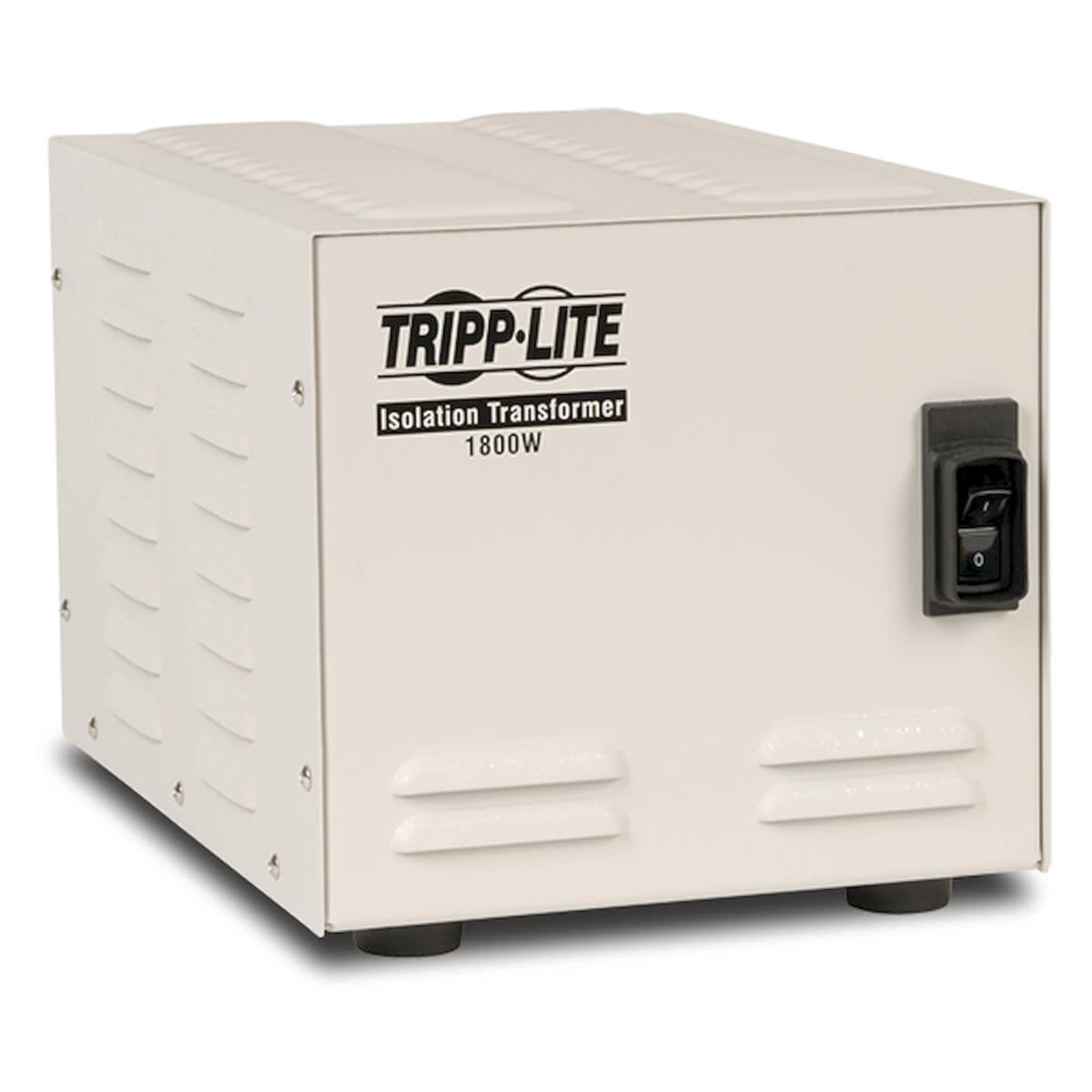

IS1800HG - Tripp Lite ISOLATOR SERIES 120V 1800W UL 60601-1 MEDICAL-GRADE ISOLATION TRANSFORMER WITH 6

Isolator Series UL60601-1 Listed Medical Grade Isolation Transformers offer line isolation, continuous noise filtering and enhanced common mode surge suppression. An internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator medical-grade transformers ideal for protection of sensitive electronic equipment in patient-care areas. Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral-to-ground bonding virtually eliminates common mode noise, providing an isolated neutral-ground reference for sensitive equipment, and an inexpensive alternative to dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients and harmonics generated by other on-site loads and utility or lightning related surge conditions. Active transformer filtering provides continuous common-mode noise rejection with no wearable parts. Unique ability to reduce surges in the worst of power environments to harmless levels. Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode. Model IS1800HG includes 6 widely spaced NEMA 5-15R hospital-grade output receptacles, a 10-ft. power cord, hospital-grade input plug, circuit breaker overload protection, and lighted power switch. Rugged all-metal unit housing; ships ready for placement in any industrial, medical, office or network environment. PLUG/OUTLETS: Input - NEMA 5-20P Hospital Grade; Output - 6 NEMA 5-20R Hospital Grade ELECTRICAL: 120V AC, 60Hz, 2.1A (Requires NEMA 5-15R wall receptacle) - The IS1800HG Medical Grade Isolation Transformer offers line isolation and continuous noise filtering - Internal low-impedance isolation transformer with Faraday shield offers 100% isolation from the input AC line - Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator Hospital Grade transformers ideal for the protection of - sensitive electronic equipment in patient-care areas. - Reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral to ground - bonding eliminates common mode noise, providing an isolated ground reference for sensitive equipment - Serves as an inexpensive alternative to dedicated circuits and site electrical upgrades - Removes EMI/RFI noise, utility switching transients, load-generated harmonics and ground loops - Active transformer filtering offers continuous common-mode noise rejection with no wearable parts; unique ability to reduce surges in the worst of power - environments to harmless levels - Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode - Includes 6 widely spaced NEMA5-20R hospital-grade output receptacles, a 10-ft. power cord, hospital-grade input plug, circuit breaker overload - protection, and lighted power switch - Ships with NEMA5-20P input plug installed, package includes NEMA5-15P user-installable hospital-grade replacement plug for compatiblity with common - 15A wall receptacles - Rugged all-metal unit housing; ships ready for upright tower placement in any industrial, medical, office or network environment



Specification:



Features
AC inlet type	C20 coupler
AC outlet types	C13
AC outlets quantity	8 AC outlet(s)
AC input voltage	115 - 230 V
AC input frequency	50 - 60 Hz
Load capacity	1800 VA
Input current (max)	15 A
Housing colour	White
Certification	ANSI/AAMI ES60601-1:2005+A2+A1, IEC60601-1 3RD EDITION +A1, cAN/CSA-C22.2 NO. 60601-1:14, CE, NOM
Short circuit protection	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Weight & dimensions
Width	11.8" (300 mm)
Depth	13.8" (350 mm)
Height	5.51" (140 mm)
Weight	51.8 lbs (23.5 kg)
Package width	17.5" (445 mm)
Package depth	19.7" (500.1 mm)
Package height	11" (279.9 mm)
Package weight	51.8 lbs (23.5 kg)
Technical details
Products per master (outer) case	1 pc(s)
Master (outer) case width	17.5" (445 mm)
Master (outer) case gross weight	51.1 lbs (23.2 kg)
Master (outer) case length	19.7" (500.1 mm)
Master (outer) case height	11" (279.9 mm)
Logistics data
Country of origin	Taiwan
Products per master (outer) case	1 pc(s)
Master (outer) case width	17.5" (445 mm)
Master (outer) case gross weight	51.1 lbs (23.2 kg)
Master (outer) case length	19.7" (500.1 mm)
Master (outer) case height	11" (279.9 mm)
