K35175NA - Kensington USB 4.0 ACCESSORIES AND PROVIDES FULL POWER DELIVERY, REGARDLESS OF HOW MANY DEV

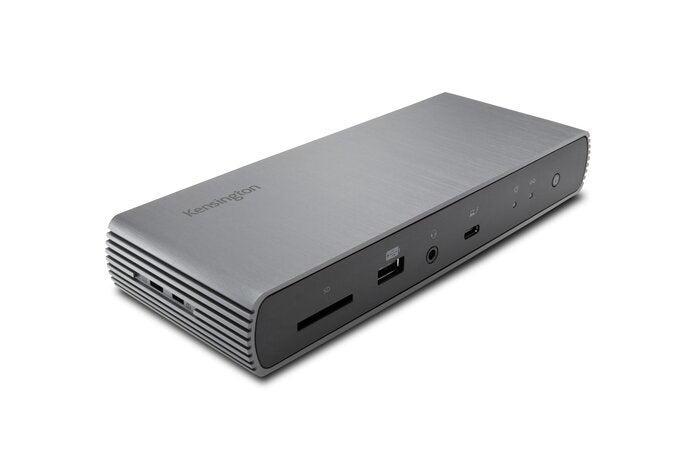

Kensington SD5700T Thunderboltâ„¢ 4 Dual 4K Docking Station with 90W PD - Win/Mac. Connectivity technology: Wired, Host interface: Thunderbolt 4, USB Power Delivery up to: 90 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product color: Black, Gray, Compatible memory cards: SD, Data transfer rate: 40 Gbit/s. AC input voltage: 100 - 240 V, Input current: 2.5 A, Output voltage: 20 V. Windows operating systems supported: Windows 10, Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14...



Specification:



Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Host interface	Thunderbolt 3
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	1
Connectivity technology	Wired
USB Power Delivery	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	60 W
DisplayPort version	1.4
Network
Ethernet LAN	Yes
Ethernet LAN data rates	1000,100,10 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Number of displays supported	2
Country of origin	Vietnam
Product colour	Black, Gray
Card reader integrated	Yes
Compatibility	FCC, IC, CB, RoHS, ACCO RSL
Plug and Play	Yes
Data transfer rate	40 Gbit/s
Compatible memory cards	SD
HD type	8K Ultra HD
Housing material	Aluminum, Plastic
Technical details
Product colour	Black, Gray
Compatibility	FCC, IC, CB, RoHS, ACCO RSL
Plug and Play	Yes
Data transfer rate	40 Gbit/s
Storage
Card reader integrated	Yes
Compatible memory cards	SD
Power
Input current	3 A
Power consumption (max)	120 W
AC input voltage	100 - 240 V
Output voltage	20 V
Output current	6 A
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Weight & dimensions
Weight	11.5 oz (325 g)
Width	5.83" (148 mm)
Depth	3.15" (80 mm)
Height	0.689" (17.5 mm)
Package weight	2.27 lbs (1.03 kg)
Package width	7.8" (198 mm)
Package depth	4.72" (120 mm)
Package height	2.87" (73 mm)
Design
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Country of origin	Vietnam
Product colour	Black, Gray
Packaging data
Quantity per pack	1 pc(s)
Package weight	2.27 lbs (1.03 kg)
Package width	7.8" (198 mm)
Package depth	4.72" (120 mm)
Package height	2.87" (73 mm)
Packaging content
Quick start guide	Yes
Cables included	Thunderbolt
AC adapter included	Yes
Warranty card	Yes
Quantity per pack	1 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	0 - 70 °C
Storage relative humidity (H-H)	0 - 55%
Other features
USB ports quantity	4
Minimum system requirements	CPU: Intel Core i5 6th generation or above Memory: 8GB or above GPU: Intel HD Graphics 620 or above
Compatible operating systems	macOS 10.14 or above; Windows 10
