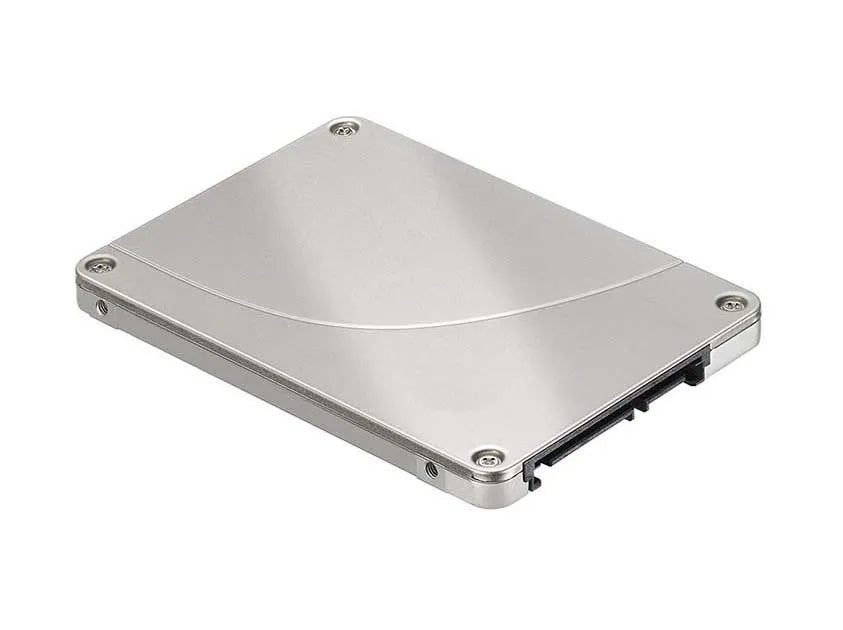

KHK61RSE1T92 - Toshiba 2.5 SATA 6GBS TLC 7MM

HK6-R Series is a 6Gbit/s data center SATA SSD supporting a broad range of read Intensive applications, such as scale-out, cloud applications, transactional database, business intelligence and data analytics. Designed for scale-out data centers, the HK6-R is designed for low latency, consistent performance and reduced power consumption.

Featuring Toshiba Memory Corporation€™s 64-layer BiCS FLASHTM 3D TLC memory, the HK6-R Series includes power-loss protection and data path protection. It comes with 1 DWPD (Drive Writes Per Day) endurance and capacities up to 7.68TB.



Specification:



Hard drive
SSD capacity	3840 GB
Memory type	3D TLC
Data transmission
Read speed	550 MB/s
Write speed	530 MB/s
Random write (4KB)	24000 IOPS
Random read (4KB)	84000 IOPS
Data transfer rate	6 Gbit/s
Endurance
Mean time between failures (MTBF)	2000000 h
Performance
Interface	Serial ATA III
Component for	Server/workstation
NVMe	No
End-to-End Data Protection	Yes
SSD capacity	3840 GB
Read speed	550 MB/s
Write speed	530 MB/s
Memory type	3D TLC
Random write (4KB)	24000 IOPS
Random read (4KB)	84000 IOPS
Mean time between failures (MTBF)	2000000 h
Data transfer rate	6 Gbit/s
Design
Component for	Server/workstation
SSD form factor	2.5"
Features
Interface	Serial ATA III
Component for	Server/workstation
NVMe	No
End-to-End Data Protection	Yes
SSD capacity	3840 GB
Read speed	550 MB/s
Write speed	530 MB/s
Memory type	3D TLC
Random write (4KB)	24000 IOPS
Random read (4KB)	84000 IOPS
Mean time between failures (MTBF)	2000000 h
Data transfer rate	6 Gbit/s
SSD form factor	2.5"
Power
Power consumption (average)	5.5 W
Operating voltage	5 V
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Operating shock	1000 G
Operating vibration	2.17 G
Technical details
Interface	Serial ATA III
Operating temperature (T-T)	0 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Operating shock	1000 G
Operating vibration	2.17 G
SSD form factor	2.5"
Weight & dimensions
Width	2.75" (69.8 mm)
Weight	2.4 oz (68 g)
Height	0.272" (6.9 mm)
Depth	3.95" (100.4 mm)
