MSI

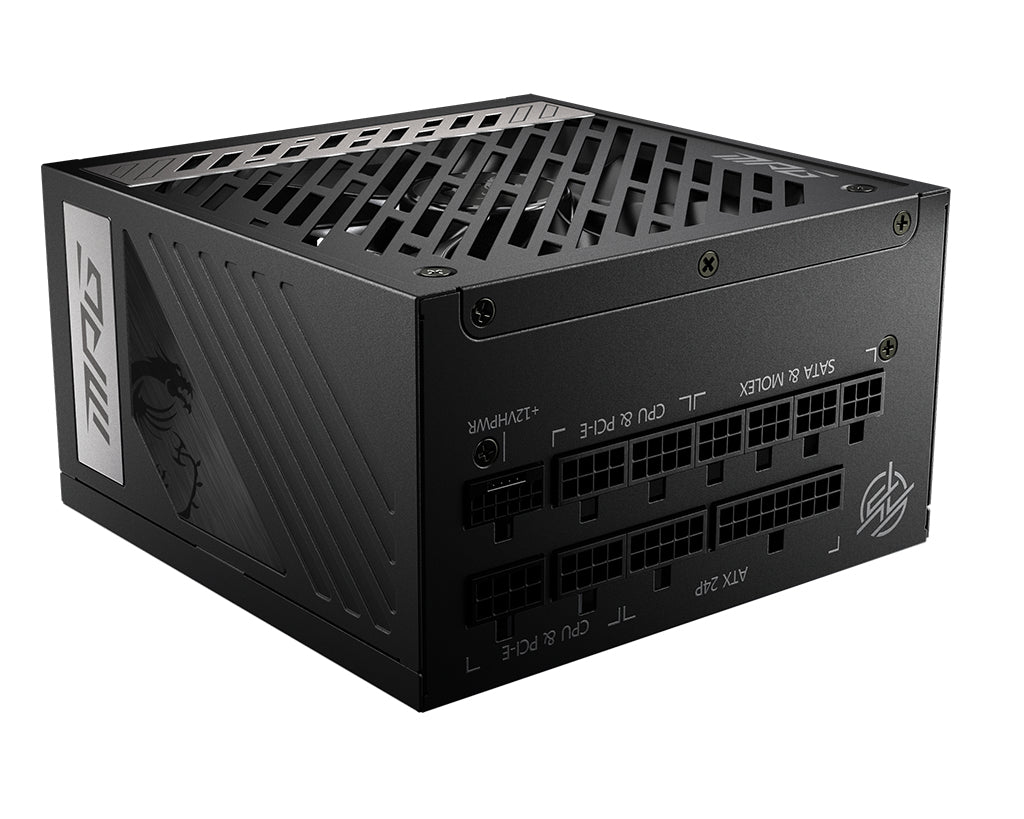

MPGA1000GPCIE5 - MSI 850W POWER SUPPLY

MPGA1000GPCIE5 - MSI 850W POWER SUPPLY

SKU:MPGA1000GPCIE5

Regular price $270.47 USD
Regular price Sale price $270.47 USD
Sale Sold out
Shipping calculated at checkout.
GO AHEAD, POP YOUR STYLE The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion. The MPG power supply showcases unique styles and color schemes with laser-like lines to create a masterful art piece with indivuality, fully expressing the charm of MPG. ATX 3.0 compatible It has an output port that is compliant with PCIe 5.0 and Intel PSDG (Power Supply Design Guide) ATX 3.0, also the power supply can hold up to 2x total power excursion and 3x GPU power excursion. level up your GAME With native 16 PIN PCIe connector the power supply is ready for Nvidia® GeForce RTX® 40 Series graphics cards. It can freely pipe up to 600W of power to PCIe 5.0 graphics cards. 80 PLUS GOLD CERTIFIED The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency. SINGLE-RAILED DESIGN The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's 5 CPU & PCI-E slots are more than plenty. GPU SUPPORT FOR ALL The gaming power supply can support the NVIDIA and AMD graphics cards. Prepared for the highest of requirements, the MPG power supply’s IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards. 100% JAPANESE 105°C CAPACITORS Aiming for unwavering product quality and performance stability, this power supply comes with 100% Japanese 105° C capacitors and solid capacitors. FULLY MODULAR The power supply's fully modular design means that only the connectors required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. COMPACT SIZING Smaller than typical PSUs on the market, the power supply’s compact sizing makes it an excellent fit for most PC cases. ALL THE MORE ORGANIZED All of the power supply’s cables are flat and in black. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow. Use the cables you need, and store the rest in the included cable bag.



Specification:



Cooling
Fan diameter 5.51" (14 cm)
Cooling type Active
Performance
On/off switch Yes
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS Gold
Purpose PC
Harmonized System (HS) code 84733020
Design
80 PLUS certification 80 PLUS Gold
Product colour Black
Fan diameter 5.51" (14 cm)
On/off switch Yes
Cooling type Active
Power
Total power 650 W
Maximum input current (@220V) 5 A
AC input voltage 100 - 240 V
AC input frequency 47 - 63 Hz
Power Factor Correction (PFC) type Active
Maximum input current (@110V) 10 A
Combined power (+3.3V) 100 W
Combined power (+12V) 25 W
Combined power (+5V) 100 W
Max output current (+3.3V) 20 A
Max output current (+12V) 25 A
Max output current (+12V1) 30 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 2.5 A
Power protection features Over current, Over power, Over voltage, Short circuit, Under voltage
Efficiency 90%
Ports & interfaces
Motherboard power cable length 23.6" (60 cm)
SATA power cable length 950 mm
PCI Express power cable length 19.7" (50 cm)
Floppy disk drive cable length 43.3" (110 cm)
Motherboard power connector 24-pin ATX
Number of SATA power connectors 8
Peripheral (Molex) power connectors (4-pin) 5
PCI Express power connectors (6+2 pin) 4
CPU power connector (4+4 pin) Yes
Floppy disk drive connector Yes
Cabling type Modular
EPS power connector (4+4 pin) Yes
Weight & dimensions
Width 5.91" (150 mm)
Depth 6.3" (160 mm)
Height 3.39" (86 mm)
Certificates
80 PLUS certification 80 PLUS Gold
Other features
Harmonized System (HS) code 84733020
