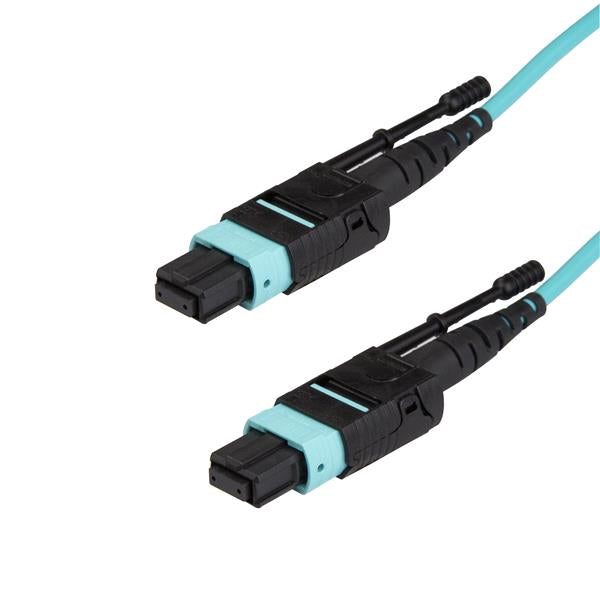

MPO12PL1M - StarTech.com TERMINATE 12 FIBER CONNECTIONS USING A SINGLE 40 GIGABIT NETWORK CABLE - 1M MTP

Terminate twelve fiber connections using a single 40 Gigabit network cable -- designed for high-density fiber networks

This MPO/MTP fiber optic cable houses 12 fibers and lets you interface between different networking devices of varying speeds. For example, you can set up a one-to-one connection between two 40Gbps switches or servers. Alternatively, you can connect a 40Gbps switch and break out the 40Gbps into six duplex 10Gbps LC connections on a patch panel or network cassette, which then fans out to individual 10Gbps devices.

The MTP connector provides twelve times the density of an SC connector and saves circuit card and rack space. Plus, the push-and-pull tabs optimize accessibility, by letting you install or remove the connectors with one hand without using additional tools.

The MTP to MTP cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required.

Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.

The MPO12PL1M from StarTech.com is backed by a lifetime warranty.

The StarTech.com Advantage

- Interface between different networking devices at varying speeds
- Optimize accessibility and install or remove connectors with one hand using the push-and-pull tabs
- MTP connectors use Type A straight-through pinout



Specification:



Technical details
Fiber mode structure	Multi-mode
Connector 1	MPO/MTP
Connector 2	MPO/MTP
Cable length	78.7" (2 m)
Core diameter	50 µm
Cladding diameter	125 µm
Sustainability certificates	RoHS
Features
Fibre optic type	OM3
Fiber mode structure	Multi-mode
Connector 1	MPO/MTP
Connector 2	MPO/MTP
Cable length	78.7" (2 m)
Core diameter	50 µm
Cladding diameter	125 µm
Data transfer rate	40 Gbit/s
Harmonized System (HS) code	85447000
Product colour	Aqua color
Connector 2 gender	Male
Connector 1 gender	Male
Data transmission
Data transfer rate	40 Gbit/s
Weight & dimensions
Cable length	78.7" (2 m)
Package width	7.87" (200 mm)
Package depth	8.66" (220 mm)
Package height	0.394" (10 mm)
Weight	0.917 oz (26 g)
Package weight	1.27 oz (36 g)
Packaging data
Package width	7.87" (200 mm)
Package depth	8.66" (220 mm)
Package height	0.394" (10 mm)
Package weight	1.27 oz (36 g)
Quantity per pack	1 pc(s)
Logistics data
Quantity per pack	1 pc(s)
