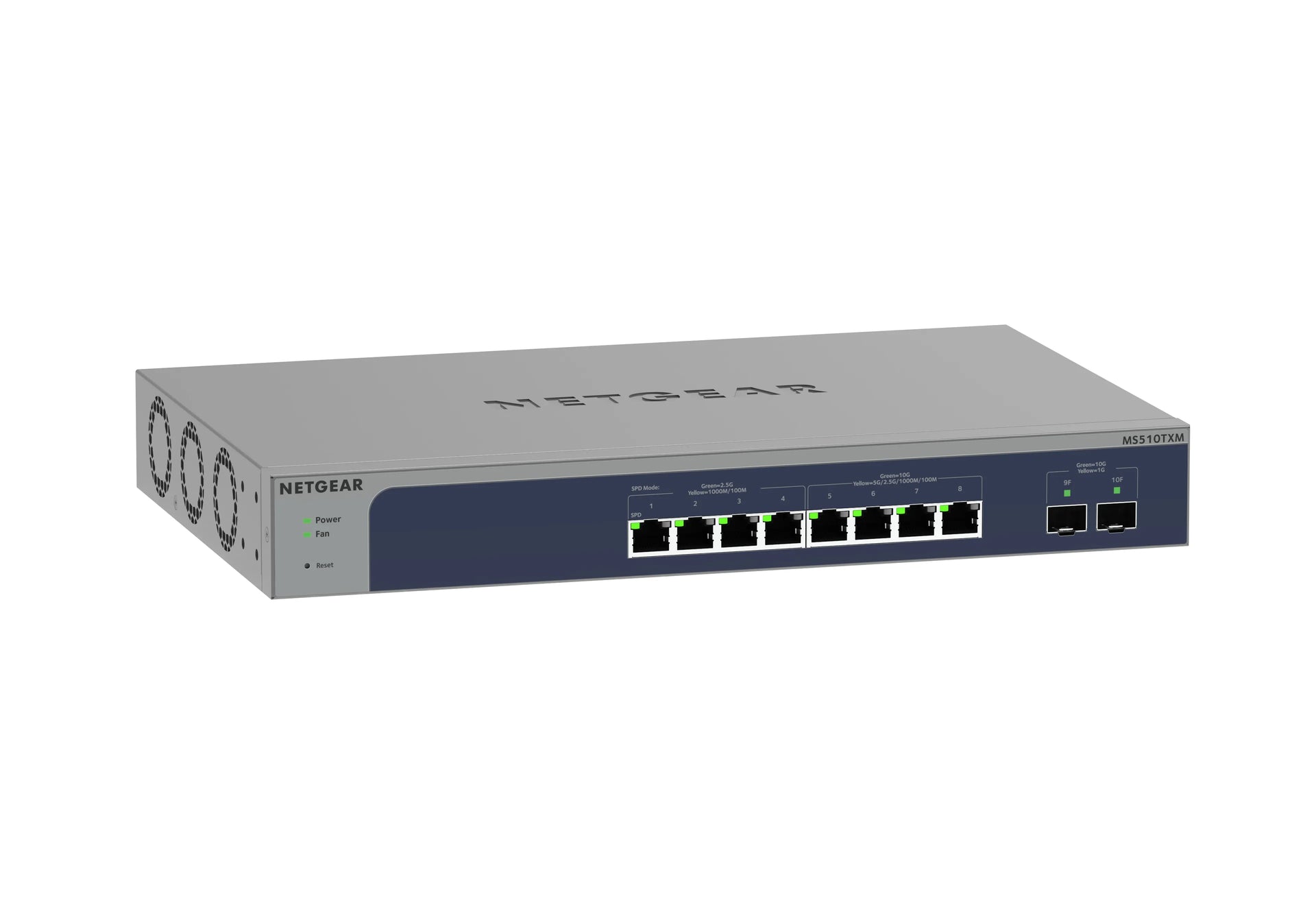

MS510TXM-100NAS - Netgear 8PORT MULTI-GIG/10G SMART

NETGEAR Smart Managed Pro Switches with Optional Remote/Cloud Management The NETGEAR MS510TXM 8-Port Multi-Gigabit/10G Smart Managed Pro Switch offers 4 ports 1G/2.5G and 4 ports multi-gig/10G with 2 dedicated 10 Gigabit fiber ports for WiFi 6 AP connectivity, IP surveillance and mobility. MS510TXM can be managed remotely by NETGEAR Insight and includes 1-year of Insight Premium or Pro subscription with purchase. - Multi-speed Ethernet ports for flexible and auto-adaptive wired connectivity of multi-Gigabit devices. - 2-port 10G SFP+ Fiber uplinks (1G/10GBASE-X fiber SFP+). - Quiet desktop operation or rack mounting. - Layer 3 static routing with 32 routes (IPv4 and IPv6). - Easy-to-use Web browser-based management GUI. - NETGEAR Insight Cloud management activation (1-Year Insight subscription is included). - Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings.



Specification:



Management features
Multicast support	Yes
ARP inspection	Yes
Switch type	Managed
Quality of Service (QoS) support	Yes
Switch layer	L2/L3/L4
Network
IGMP snooping	Yes
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN support	Yes
Spanning tree protocol	Yes
Number of VLANs	256
Broadcast storm control	Yes
10G support	No
Virtual LAN features
VLAN support	Yes
Number of VLANs	256
Data transmission
Multicast MAC address table	512 entries
Number of VLANs	256
Jumbo frames	10000
Latency (10 Gbps)	2.36 µs
Packet buffer memory	1.5 MB
MAC address table	16000 entries
Switching capacity	78 Gbit/s
Jumbo frames support	Yes
Performance
Packet buffer memory	1.5 MB
Processor frequency	800 MHz
Noise level	28.8 dB
Built-in processor	Yes
Power
Power connector	DC-in jack
Power consumption (max)	234.31 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	19.39 W
Technical details
Product colour	Gray
Processor frequency	800 MHz
Noise level	28.8 dB
Rack mounting	Yes
Built-in processor	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
USB 2.0 ports quantity	1
Console port	RJ-45
Power connector	DC-in jack
Security
Access Control List (ACL) rules	164
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP client, DHCP server
Multicast features
Multicast MAC address table	512 entries
Multicast support	Yes
Certificates
Certification	EN 55032:2012+AC:2013/CISPR 32:2012, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010, VCCI-CISPR 32:2016, AS/NZS CISPR 32:2013, GB4943.1-2011; YD/T993-1998; GB/T9254-2008, 47 CFR FCC, ANSI C63.4:2014, ICES-003:2016, ANSI C63.4:2014, CNS 13438
Memory
Packet buffer memory	1.5 MB
Design
Product colour	Gray
LED indicators	Yes
Certification	EN 55032:2012+AC:2013/CISPR 32:2012, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010, VCCI-CISPR 32:2016, AS/NZS CISPR 32:2013, GB4943.1-2011; YD/T993-1998; GB/T9254-2008, 47 CFR FCC, ANSI C63.4:2014, ICES-003:2016, ANSI C63.4:2014, CNS 13438
Rack mounting	Yes
Indication
LED indicators	Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 90%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Heat dissipation	799.5 BTU/h
Weight & dimensions
Width	12.9" (328 mm)
Depth	6.65" (169 mm)
Height	1.69" (43 mm)
Weight	3.13 lbs (1.42 kg)
Packaging data
Quick start guide	Yes
User guide	Yes
Manual	Yes
Packaging content
Quick start guide	Yes
User guide	Yes
Manual	Yes
