Description

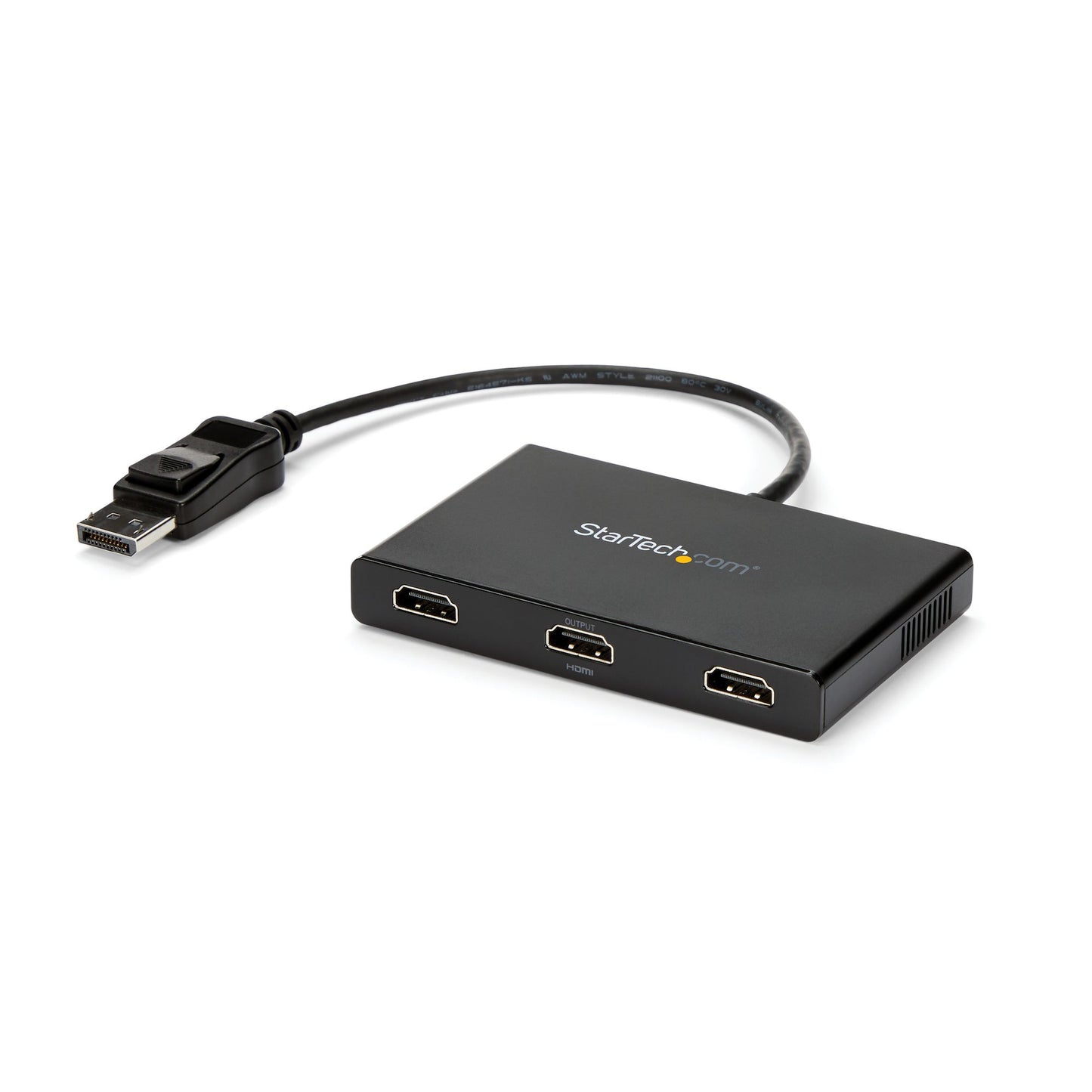

Use this adapter to connect three independent displays to a single DP 1.2 portThis MST hub lets you connect three HDMI® monitors to your DisplayPort™ (DP) 1.2 equipped Windows® laptop or desktop.Increase productivity with multiple screensThe newest generations of computers are more portable than ever, which often means that you’re left with fewer video outputs and smaller integrated screens. This MST hub solves both of these problems by letting you connect three additional displays to your computer, which makes multitasking much easier.Configure your displays for any environmentUsing the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display. You can also mirror the same image onto multiple HDMI televisions or projectors for remote viewing applications such as digital signage.Enjoy amazing video quality without draining system resourcesMST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging.Note: When using a DisplayPort 1.1 video card the MSTDP123HD will act as splitter, automatically mirroring your video source across all displays. Resolution limitations apply.The MSTDP123HD supports plug-and-play installation for a hassle-free setup, and is backed by a StarTech.com 3-year warranty and free lifetime technical support.Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup. Certain graphics adapters have limited MST support and will only output to three displays in total. If more than three monitors are attached the fourth will be disabled. Some monitors limit available resolutionAverage Resolution Bandwidth Allocation1920x1080 (High-definition 1080p) @60hz - 22%1920x1200 @60hz - 30%2560x1440 @60hz - 35%2560x1600 @60hz - 38%3840 x 2160 (Ultra HD 4K) @30hz - 43%Note: Exceeding 100% will reduce functionality.Examples of Supported Resolution ConfigurationsScreen 1 ResolutionScreen 2 ResolutionScreen 3 ResolutionTotal % of Bandwidth1920x1200 @60hz (30%)1920x1200 @60hz (30%)1920x1200 @60hz (30%)90%2560x1440 @60hz (35%)2560x1440 @60hz (35%)1920x1200 @60hz (30%)92%2560x1600 @60hz (38%)2560x1600 @60hz (38%)1920x1080 @60hz (22%)98%3840x2160 @30hz (43%)1920x1200 @60hz (30%)1920x1080 @60hz (22%)95%3840x2160 @30hz (43%)3840x2160 @30hz (43%)None86%Examples of Unsupported Resolution ConfigurationsScreen 1 ResolutionScreen 2 ResolutionScreen 3 ResolutionTotal % of Bandwidth2560x1600 @60hz (38%)2560x1600 @60hz (38%)1920x1200 @60hz (30%)106%3840x2160 @30hz (43%)2560x1600 @60hz (43%)1920x1200 @60hz (30%)116%3840x2160 @30hz (43%)2560x1600 @60hz (43%)2560x1440 @60hz (35%)121%3840x2160 @30hz (43%)3840x2160 @30hz (43%)3840x2160 @30hz (38%)124%The StarTech.com Advantage
Specification:
Ports & interfaces | |
---|---|
Video ports quantity | 4 |
Video port type | DisplayPort |
Video out | 4x DisplayPort |
DC-in jack | Yes |
Features | |
Housing material | Plastic |
Maximum refresh rate | 30 Hz |
Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160 |
Maximum resolution | 3840 x 2160 pixels |
Plug and Play | Yes |
Product colour | Black |
Certification | CE, FCC, REACH |
Power | |
Input current | 0.5 A |
Output current | 3 A |
Power consumption (typical) | 15 W |
Output voltage | 5 V |
AC input voltage | 110 - 240 V |
Weight & dimensions | |
Weight | 4.55 oz (129 g) |
Width | 2.56" (65 mm) |
Depth | 15.2" (386 mm) |
Height | 0.591" (15 mm) |
Package weight | 18.6 oz (527 g) |
Package depth | 5.98" (152 mm) |
Package width | 9.49" (241 mm) |
Package height | 2.52" (64 mm) |
Packaging data | |
Package weight | 18.6 oz (527 g) |
Package depth | 5.98" (152 mm) |
Package width | 9.49" (241 mm) |
Package height | 2.52" (64 mm) |
Packaging content | |
AC adapter included | Yes |
Included power plug types | AU, EU, NA, UK |
Manual | Yes |
Operational conditions | |
Operating temperature (T-T) | 0 - 45 °C |
Storage temperature (T-T) | -20 - 70 °C |
Sustainability | |
Sustainability certificates | RoHS |
Video | |
Maximum refresh rate | 30 Hz |
Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160 |
Maximum resolution | 3840 x 2160 pixels |
Colour | |
Product colour | Black |
Certificates | |
Certification | CE, FCC, REACH |
Technical details | |
Housing material | Plastic |
Package width | 9.49" (241 mm) |
Package height | 2.52" (64 mm) |
Video out | 4x DisplayPort |
Plug and Play | Yes |
Sustainability certificates | RoHS |
System requirements | |
Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Logistics data | |
Master (outer) case width | 13.2" (336 mm) |
Master (outer) case length | 19.7" (501 mm) |
Master (outer) case height | 8.94" (227 mm) |
Products per master (outer) case | 10 pc(s) |
Harmonized System (HS) code | 85176990 |
