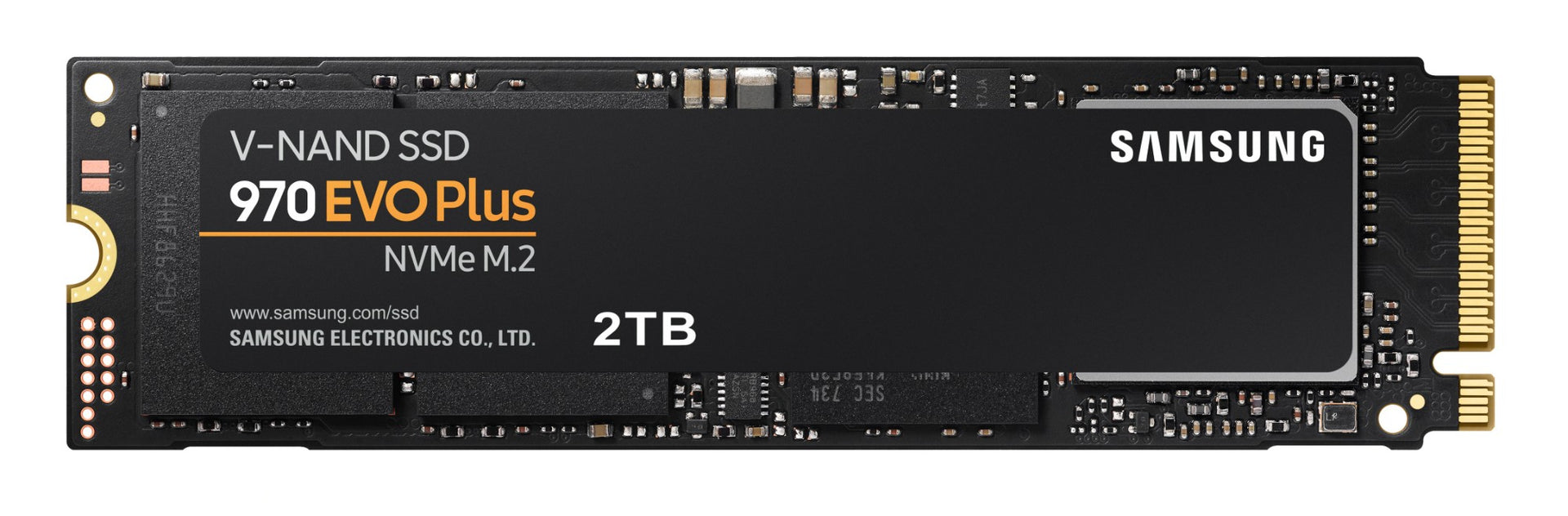

MZ-V7S2T0B/AM - Samsung SAMSUNG 970 EVO PLUS SERIES - 2TB PCIE NVME - M.2 INTERNAL SSD

Always Evolving SSD The ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by the latest V-NAND technology and firmware optimization. It maximizes the potential of NVMe bandwidth for unbeatable computing. Comes in capacities of up to 2TB, with reliability of up to 1,200 TBW. Level up Performance The 970 EVO Plus reaches sequential read/write speeds up to 3,500/3,300 MB/s, up to 53%* faster than the 970 EVO. Powered by the latest V-NAND technology—which brings greater NAND performance and higher power efficiency—along with optimized firmware, a proven Phoenix controller, and Intelligent TurboWrite boost speed. Design Flexibility The next advancement in NVMe SSDs. The 970 EVO Plus fits up to 2TB onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsung's innovative technology empowers you with the capacity to do more and accomplish more. Exceptional Endurance The new standard in sustainable performance. Get up to 1,200 TBW* with a 5-year limited warranty for lasting performance. The 970 EVO Plus provides exceptional endurance powered by the latest V-NAND technology and Samsung's reputation for quality. Unparalleled Reliability Achieve a new level of drive confidence. Samsung's advanced nickel-coated controller and heat spreader on the 970 EVO Plus enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimize performance drops. Samsung Magician Advanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health and speed, and even boost performance.



Specification:



Hard drive
SSD capacity	500 GB
Memory type	V-NAND MLC
Data transmission
Read speed	3500 MB/s
Write speed	3200 MB/s
Random write (4KB)	550000 IOPS
Random read (4KB)	480000 IOPS
Security
Security algorithms	256-bit AES
Endurance
Mean time between failures (MTBF)	1500000 h
Performance
Interface	PCI Express 3.0
Component for	PC
Controller type	Samsung Phoenix
NVMe	Yes
NVMe version	1.3
DevSlp (device sleep) support	Yes
TBW rating	300
SSD capacity	500 GB
Security algorithms	256-bit AES
S.M.A.R.T. support	Yes
Read speed	3500 MB/s
TRIM support	Yes
Write speed	3200 MB/s
Memory type	V-NAND MLC
Random write (4KB)	550000 IOPS
Random read (4KB)	480000 IOPS
Mean time between failures (MTBF)	1500000 h
Hardware encryption	Yes
Design
Component for	PC
SSD form factor	M.2
Features
Interface	PCI Express 3.0
Component for	PC
Controller type	Samsung Phoenix
NVMe	Yes
NVMe version	1.3
DevSlp (device sleep) support	Yes
TBW rating	300
SSD capacity	500 GB
Security algorithms	256-bit AES
S.M.A.R.T. support	Yes
Read speed	3500 MB/s
TRIM support	Yes
Write speed	3200 MB/s
Memory type	V-NAND MLC
Random write (4KB)	550000 IOPS
Random read (4KB)	480000 IOPS
Mean time between failures (MTBF)	1500000 h
Hardware encryption	Yes
SSD form factor	M.2
Power
Power consumption (average)	5.8 W
Power consumption (max)	9 W
Power consumption (idle)	0.03 W
Operating voltage	3.3 V
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Operating shock	1500 G
Technical details
Interface	PCI Express 3.0
S.M.A.R.T. support	Yes
Operating temperature (T-T)	0 - 70 °C
TRIM support	Yes
Operating shock	1500 G
Hardware encryption	Yes
SSD form factor	M.2
Weight & dimensions
Width	3.16" (80.2 mm)
Weight	0.282 oz (8 g)
Height	0.872" (22.1 mm)
Depth	0.0937" (2.38 mm)
