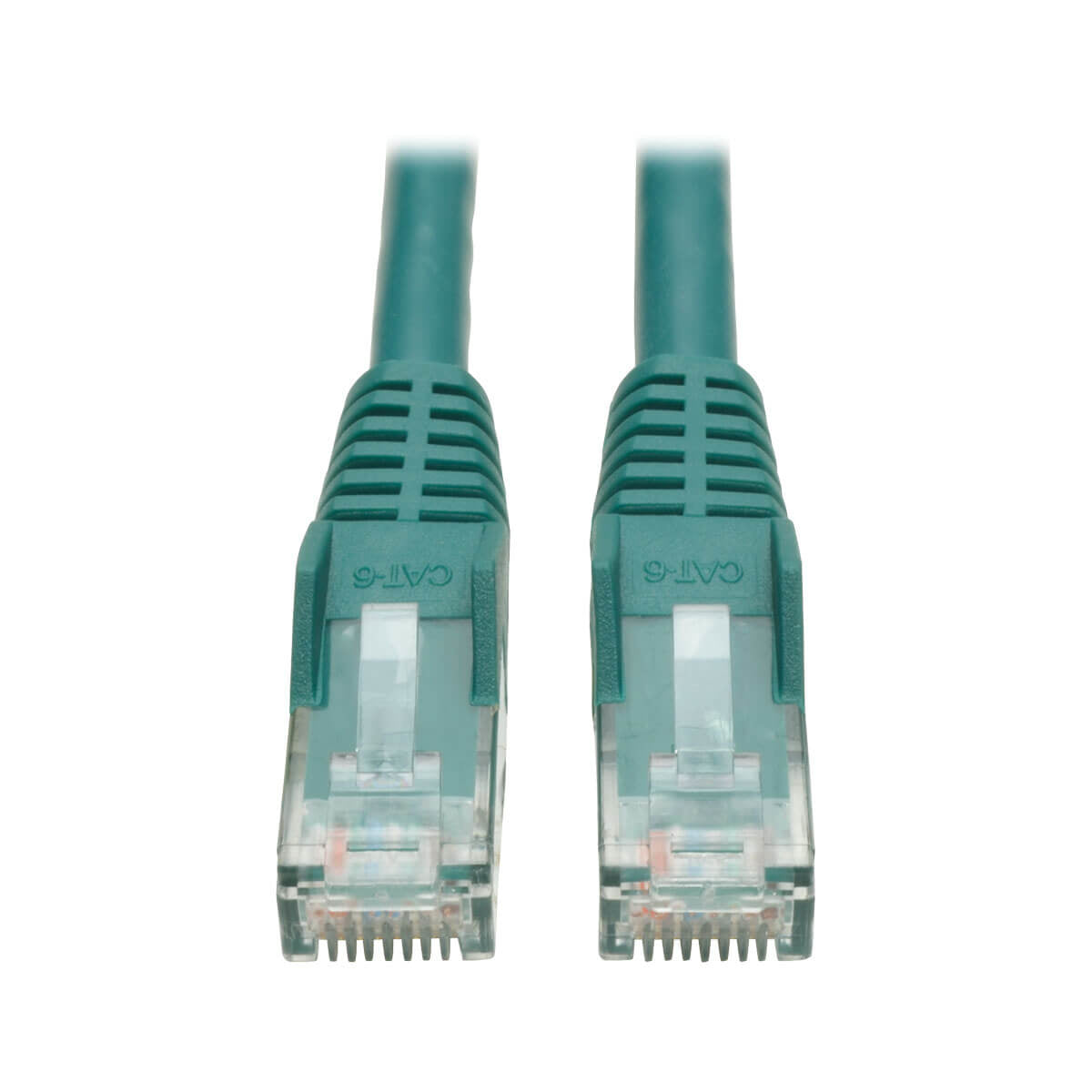

N201-035-GN - Tripp Lite CAT6 GIGABIT SNAGLESS MOLDED PATCH CABLE (RJ45 M/M) - GREEN, 35-FT.

The N201-035-GN Cat6 Gigabit Snagless Molded UTP Patch Cable (M/M) is recommended for distributing data, voice and video through computers, network adapters, routers, servers, modems, hubs and switches in high-density data centers. Designed for fast transmission and excellent signal quality, this cable ensures peak performance throughout your local area network (LAN). It reduces impedance and structural return loss compared to standard 100 MHz wire. This 35-ft. (10.67 m) green cable is designed for 1000Base-T (1 Gbps Ethernet), 10/100Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, Token Ring Type 3 and EIA/TIA applications. Manufactured from 24 AWG four-pair solid UTP with a rugged PVC jacket, the N201-035-GN delivers speeds up to 550 MHz/1 Gbps and flawless signal delivery, while keeping near-end crosstalk levels to a minimum. The RJ45 short-body connectors' snagless design protects the locking tabs from being damaged or broken off during installation. Corrosion-resistant gold-plated copper contacts provide maximum conductivity and minimize data loss. Integral strain relief gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking. Meets most other current industry standards, including IEEE 802.3ab, 802.5, ISO/IEC 11801 and ETL (Cat6 draft 11). The Ideal Solution for Your Cat6 Gigabit Ethernet Networking Needs Recommended for connecting computers, network adapters, routers, servers, modems, hubs and switches in high-density data centers Designed for 10/100/1000 Base-T, 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, Token Ring Type 3 and EIA/TIA applications Provides high-speed connections up to 550 MHz/1 Gbps Flawless signal delivery with minimal near-end crosstalk levels Reduces impedance and structural return loss compared to standard 100 MHz wire Snagless RJ45 Male Connectors Molded snagless boots prevent locking tabs from damage during installation Premium Construction Ensures Error-Free Signal Transfer Manufactured from 24 AWG 4-pair solid UTP Gold-plated copper contacts for maximum conductivity and minimum data loss Integral strain relief protects cable and connectors from stress and cracking Rugged PVC jacket stands up to long-term use Meets Top Cabling Standards Meets Cat6 TIA/EIA standards Meets most other current industry standards, including IEEE 802.3ab, 802.5, ISO/IEC 11801 and ETL (Cat6 draft 11)



Specification:



Technical details
Product colour	Gray
Cable standard	Cat6
Cable shielding	U/UTP (UTP)
Connector 1	RJ-45
Connector 2	RJ-45
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3ab, IEEE 802.5
Jacket material	Nylon/Polyvinyl Chloride (PVC)
Conductor type	Solid
Cable length	421.3" (10.7 m)
Country of origin	China
Sustainability certificates	RoHS
Features
Product colour	Gray
Country of origin	China
Twisted pair coupling type	4x2
AWG wire size	24
Cable standard	Cat6
Cable shielding	U/UTP (UTP)
Connector 1	RJ-45
Connector 2	RJ-45
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3ab, IEEE 802.5
Jacket material	Nylon/Polyvinyl Chloride (PVC)
Conductor type	Solid
Cable length	421.3" (10.7 m)
Harmonized System (HS) code	8544.42.2000
Connector 2 gender	Male
Connector 1 gender	Male
Packaging data
Package width	8" (203.2 mm)
Package depth	0.5" (12.7 mm)
Package height	10" (254 mm)
Package weight	15.9 oz (450 g)
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case gross weight	9.52 lbs (4.32 kg)
Products per master (outer) case	10 pc(s)
Master (outer) case width	18" (457.2 mm)
Master (outer) case length	1" (25.4 mm)
Master (outer) case height	20" (508 mm)
Master (outer) case GTIN (EAN/UPC)	10037332204919
Other features
Master (outer) case GTIN (EAN/UPC)	10037332204919
