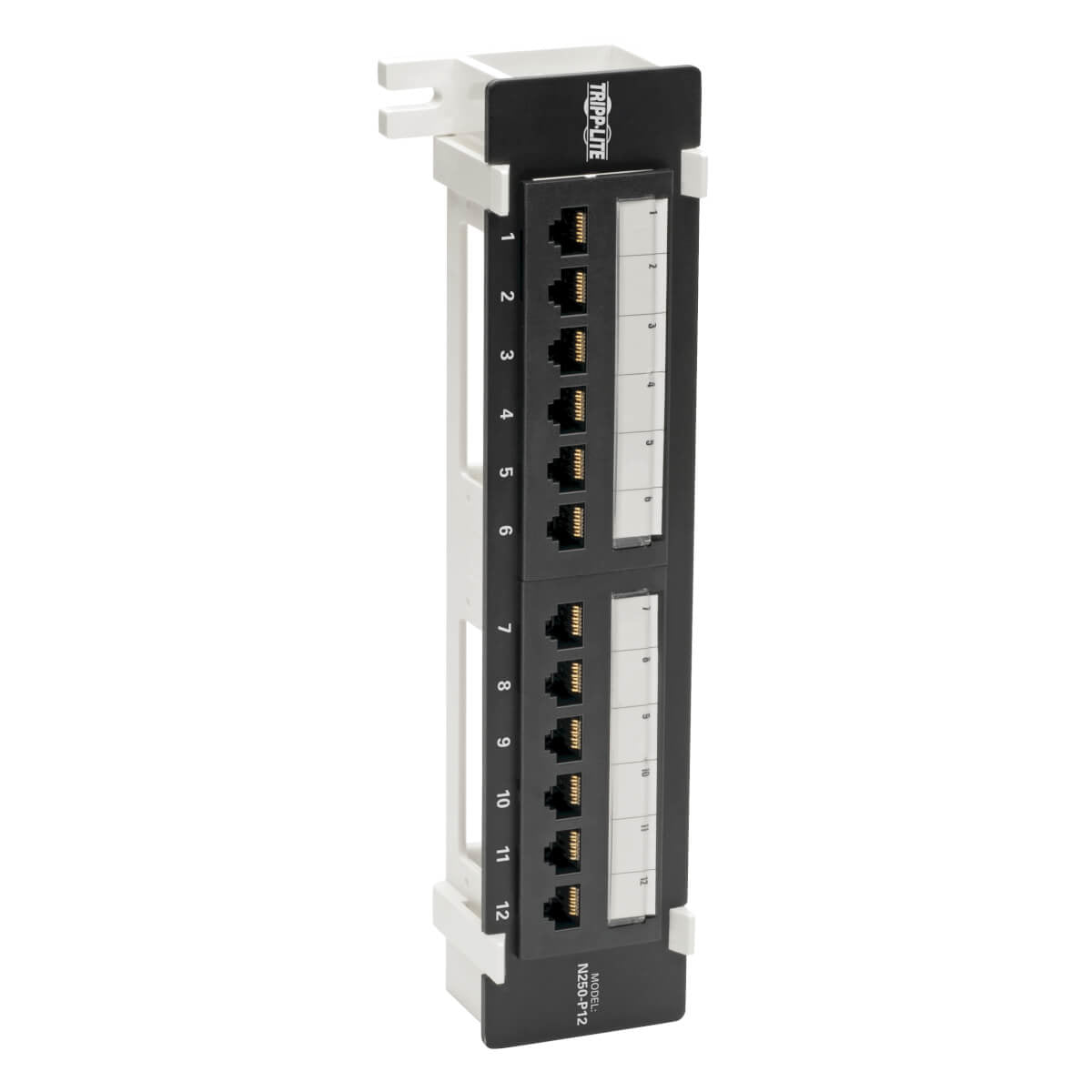

N250-P12 - Tripp Lite CAT6 WALL-MOUNT POE PATCH PANEL 12-PORT 110/KRONE 568A/B RJ45

IEC 60512-99-002 Compliant PoE Certificate Number: 2019-248 UTP Cat6 22-24 AWG solid cable (Requires PoE cable if used in PoE setting) 12-Port Patch Panel Manages and Organizes High-Density Cat6 Network Cabling This patch panel enables quick, easy cable patching. Just plug Cat6 patch cables into its 12 front RJ45 ports, and use a 110 or Krone punch-down tool (do not use a 4/5 pair 110 punch-down tool) to terminate color-coded connections in the rear. Both the RJ45 ports and 110 terminals are clearly numbered, and the front ports have blank labels to help you identify individual cable runs. The N250-P12 supports EIA/TIA 568A and 568B wiring standards and is compatible with all network applications. Specifically Designed for Use in Power over Ethernet Plus (PoE+) Applications This Power over Ethernet patch panel maximizes performance with PoE+ applications. It prevents spark-gap erosion that degrades the plug and jack contacts over time and can affect data and/or power transmission capabilities. The N250-P12 is designed to handle the frequent mating and unmating of surveillance cameras, VoIP phone systems, wireless access points and other PoE and PoE+ devices under electrical load. Effortlessly Mounts to a Wall or Desk Using the Included Frame The 12-port patch panel is constructed from aluminum with an ABS plastic frame that mounts to a wall, desk or similar flat surface. The patch panel easily snaps into and out of the frame, allowing you to remove it to make new connections and snap it back into place. Included cable ties help organize your connections and cut down on cord clutter. TAA-Compliant for GSA Schedule Purchases The N250-P12 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. Lifetime Warranty The N250-P12 is backed by a lifetime warranty, ensuring reliability and performance.



Specification:



Network
Ports quantity	12
Connector(s)	RJ-45
Features
Mounting	Rack mounting
Rack capacity	1U
Material	Metal
Product colour	Black
Certification	TAA, EIA/TIA 568A/568B
Technical details
Mounting	Rack mounting
Package width	20.5" (520.7 mm)
Package height	3" (76.2 mm)
Material	Metal
Sustainability certificates	RoHS
Design
Mounting	Rack mounting
Rack capacity	1U
Material	Metal
Product colour	Black
Certification	TAA, EIA/TIA 568A/568B
Colour
Product colour	Black
Certificates
Certification	TAA, EIA/TIA 568A/568B
Weight & dimensions
Width	18.9" (480.1 mm)
Weight	12.7 oz (360 g)
Height	1.7" (43.2 mm)
Depth	1" (25.4 mm)
Package weight	15.9 oz (450 g)
Package width	20.5" (520.7 mm)
Package height	3" (76.2 mm)
Packaging data
Package weight	15.9 oz (450 g)
Package depth	4.25" (108 mm)
Package width	20.5" (520.7 mm)
Package height	3" (76.2 mm)
Logistics data
Master (outer) case gross weight	17.6 lbs (7.98 kg)
Products per master (outer) case	15 pc(s)
Master (outer) case width	20.9" (530.9 mm)
Master (outer) case length	12" (304.8 mm)
Master (outer) case height	10.6" (269.2 mm)
Master (outer) case GTIN (EAN/UPC)	20037332120025
Country of origin	Taiwan
