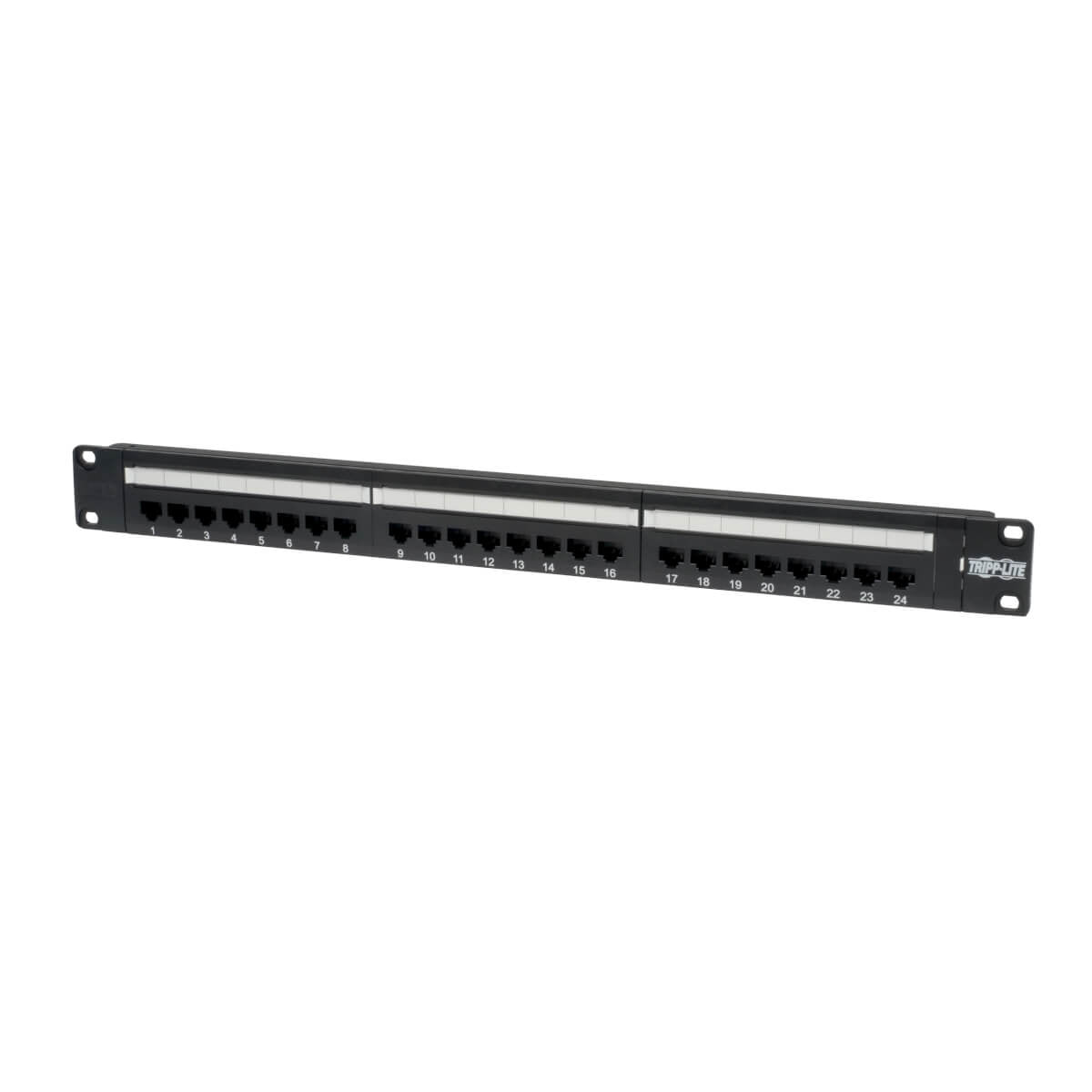

N252-024 - Tripp Lite 24-PORT CAT6 CAT5 PATCH PANEL RACKMOUNT 110 PUNCH DOWN RJ45 ETHERNET 1URM

Tripp Lite's Category 6 Patch Panels offer you all the functionality and compatibility as any name brand. Each panel comes with 110-type termination, while meeting and exceeding EIA/TIA TSB-40 Cat6 connecting hardware specifications. Color coded for both EIA/TIA 568A & 568B installations. 24 ports ensure a wide range of plug-n-play options. The clear numbering on both the front and back of each panel gives you a quick and easy way to identify cable runs and the high density 19in panel design will save you valuable space in on the rack. UTP Cat6 22-24 AWG solid cable Cat6 UL approved Ports clearly numbered both on front and back Labels on front enable each port to be named Color coded label on back offers both EIA/TIA 568A & 568B wiring Metal frame EIA/TIA 2/32 spacing Rack mountable on a 19 rack (1U of space)



Specification:



Network
Ethernet interface type	10 Gigabit Ethernet
Cable types supported	Cat6a
Ports quantity	24
Features
Mounting	Rack mounting
Rack capacity	1U
Product colour	Black
Certification	TAA
Technical details
Mounting	Rack mounting
Package width	2.5" (63.5 mm)
Package height	2.7" (68.6 mm)
Sustainability certificates	RoHS
Harmonized System (HS) code	85371098
Design
Mounting	Rack mounting
Rack capacity	1U
Cable management	Yes
Product colour	Black
Certification	TAA
Colour
Product colour	Black
Certificates
Certification	TAA
Packaging data
Package weight	30.3 oz (860 g)
Package depth	19.6" (497.8 mm)
Package width	2.5" (63.5 mm)
Package height	2.7" (68.6 mm)
Packaging content
Number of cable ties	8
Cable tie(s) included	Yes
Logistics data
Master (outer) case gross weight	21.7 lbs (9.84 kg)
Products per master (outer) case	12 pc(s)
Master (outer) case width	11.9" (302.3 mm)
Master (outer) case length	20.6" (523.2 mm)
Master (outer) case height	10.4" (264.2 mm)
Master (outer) case GTIN (EAN/UPC)	10037332205633
Country of origin	Taiwan
Weight & dimensions
Package weight	30.3 oz (860 g)
Package width	2.5" (63.5 mm)
Package height	2.7" (68.6 mm)
