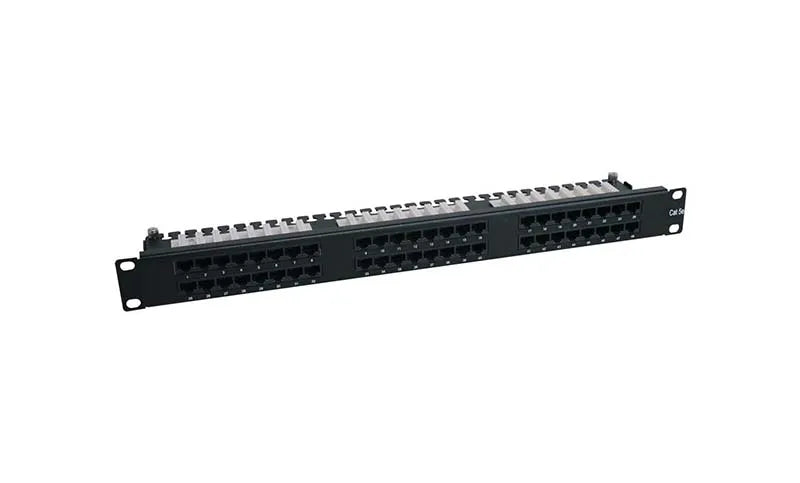

N252-048-1U - Tripp Lite 48-PORT 1U CAT6/5 RACK-MOUNT PATCH PANEL

Tripp Lite's 1U, 48port, Cat6 High Density Patch panel frees up valuable rack real estate by condensing a typical 2U 48 port patch panel into 1U of space. The unique design allows for easy punch down termination. Simply unscrew 4 slotted thumbscrews to remove the "upper deck" punch down array. Punch down the "lower deck" cables first, then replace the upper deck, and punch down upper array. Integrated wire loom keeps cabling tidy and easy to route. Heavy Duty 14GA cold rolled steel construction. 110 connectors are color coded for either 568A or 568B wiring. UTP Cat6 22-24 AWG solid cable Space saving CAT6 Rated 48-port 1U 110 type Patch panel Removable "upper-deck" for easy punch down termination Built-in wire management loom Color coded for 568A/568B wiring Heavy Duty 14ga cold rolled steel construction Mounts in standard 19" Racks or Cabinets



Specification:



Network
Maximum data transfer rate	5000 Mbit/s
Cable types supported	Cat5, Cat5e, Cat6
Ports quantity	48
Connector(s)	RJ-45
Features
Mounting	Rack mounting
Rack capacity	1U
Product colour	Silver
Certification	TAA
Technical details
Mounting	Rack mounting
Package width	4.1" (104.1 mm)
Package height	2.2" (55.9 mm)
Sustainability certificates	RoHS
Design
Mounting	Rack mounting
Rack capacity	1U
Product colour	Silver
Certification	TAA
Colour
Product colour	Silver
Certificates
Certification	TAA
Packaging data
Package weight	4.89 lbs (2.22 kg)
Package depth	20.4" (518.2 mm)
Package width	4.1" (104.1 mm)
Package height	2.2" (55.9 mm)
Packaging content
Number of cable ties	48
Cable tie(s) included	Yes
Logistics data
Master (outer) case gross weight	25.6 lbs (11.6 kg)
Products per master (outer) case	5 pc(s)
Master (outer) case width	11.8" (299.7 mm)
Master (outer) case length	20.6" (523.2 mm)
Master (outer) case height	7.1" (180.3 mm)
Master (outer) case GTIN (EAN/UPC)	10037332236170
Country of origin	Taiwan
Weight & dimensions
Package weight	4.89 lbs (2.22 kg)
Package width	4.1" (104.1 mm)
Package height	2.2" (55.9 mm)
