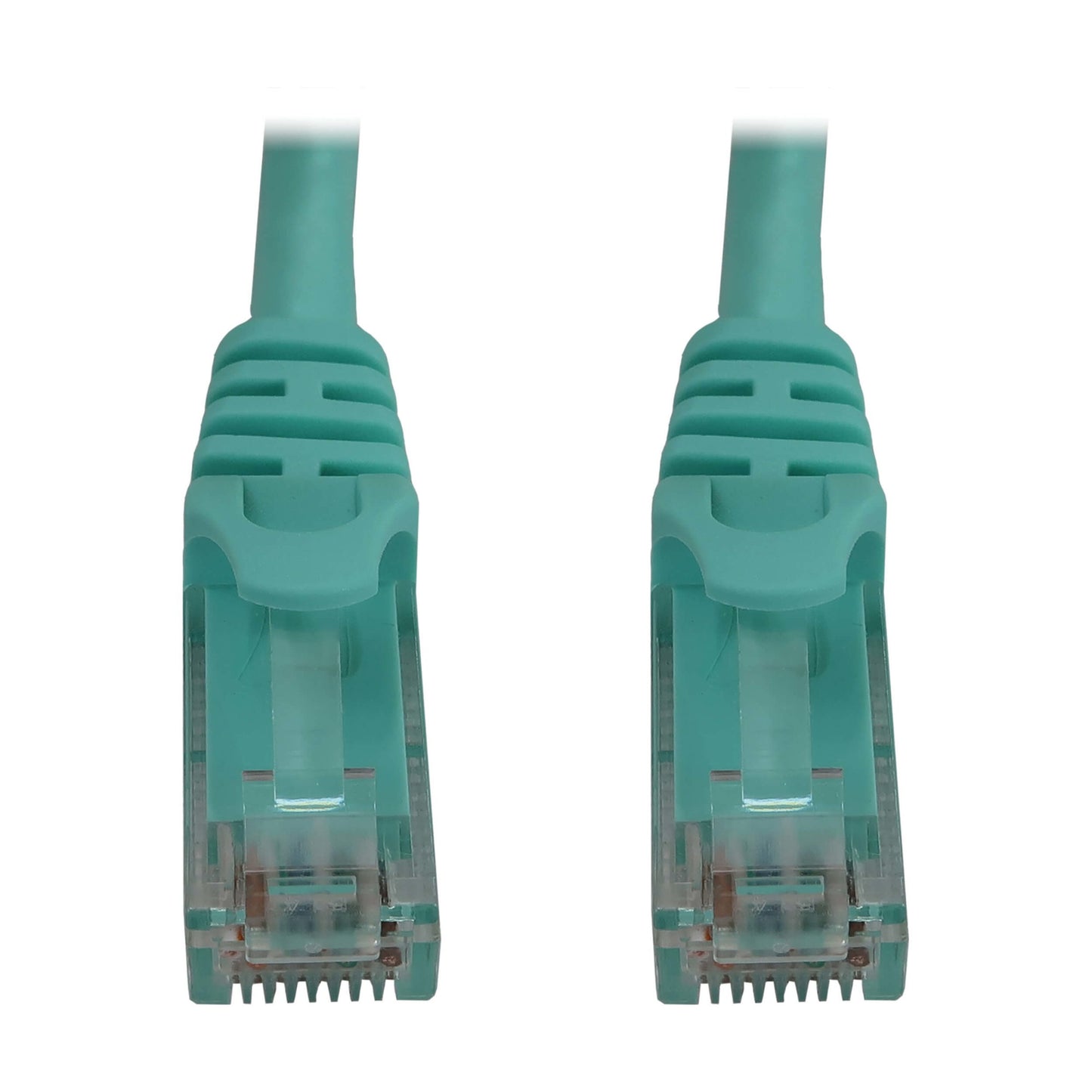

N261-050-AQ - Tripp Lite CAT6A CABLE SNAGLESS MOLDED MM AQUA 50FT

Cat6a Cable Ideal for Your High-Density 10 Gigabit Ethernet Network This Cat6a 10G Ethernet cable with RJ45 connectors is recommended for connecting network components like printers, computers, copiers, routers, servers, modems, hubs and switches in high-density data centers and network closets. Designed for fast transmission and excellent signal quality, the N261-050-AQ ensures peak performance throughout your LAN. Supports Power over Ethernet to Save You Money and Give You More Installation Choices Because this Cat6a cable supports PoE, it can supply the power to operate compatible PoE devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices. This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings. Snagless RJ45 Male Connectors Add Extra Protection The RJ45 connectors’ snagless design protects the locking tabs from being damaged or broken off during installation. The contacts feature 50-micron gold plating to help ensure the most accurate signal transfer possible, improving near-end crosstalk (NEXT) performance to 500 MHz. Aqua Jacket Helps Avoid Misidentification That Can Cause Costly Downtime The cable has an aqua PVC jacket, which is easy to identify quickly in a crowded patch panel or switch and helps prevent the cable from becoming accidentally disconnected. Premium Construction for Superior Performance Manufactured from 24 AWG copper wire, the four-pair stranded cable is rated for speeds up to 10 Gbps. Integral strain relief gives the unshielded cable extra flexibility, reduces stress and helps the cable move freely without cracking or breaking loose from the connector.



Specification:



Technical details
Product colour	Black
Cable standard	Cat6a
Cable shielding	U/UTP (UTP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Nickel/Gold
Data transfer rate	10000 Mbit/s
Networking standards	IEEE 802.3ab, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at
Jacket material	Polyvinyl chloride (PVC)
Conductor type	Stranded
Cable length	598.4" (15.2 m)
Country of origin	China
Sustainability certificates	CE, REACH, RoHS, UKCA
Certificates
Certification	UL Listed; cUL Listed, CE (Europe); RoHS; IEEE 802.3ab 1000Base-T; IEEE 802.3af PoE; IEEE 802.3an 10GBase-T; IEEE 802.3at PoE+; REACH; UKCA
Features
Product colour	Black
Snagless cable boot	Yes
Country of origin	China
Conductor material	Copper
Molded cable boot	Yes
Frequency	500 MHz
AWG wire size	24
Cable standard	Cat6a
Cable shielding	U/UTP (UTP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Nickel/Gold
Data transfer rate	10000 Mbit/s
Networking standards	IEEE 802.3ab, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at
Jacket material	Polyvinyl chloride (PVC)
Conductor type	Stranded
Certification	UL Listed; cUL Listed, CE (Europe); RoHS; IEEE 802.3ab 1000Base-T; IEEE 802.3af PoE; IEEE 802.3an 10GBase-T; IEEE 802.3at PoE+; REACH; UKCA
Cable length	598.4" (15.2 m)
Power over Ethernet (PoE)	Yes
Cable shape	Round
Harmonized System (HS) code	8544.42.2000
Connector 2 gender	Male
Connector 1 gender	Male
Connector 2 form factor	Straight
Connector 1 form factor	Straight
Total Power over Ethernet (PoE) budget	30 W
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 85%
Operating temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	5 - 85%
Weight & dimensions
Outer diameter	0.236" (6 mm)
Weight	19.4 oz (550 g)
Packaging data
Package width	10.5" (266.7 mm)
Package depth	0.5" (12.7 mm)
Package height	12" (304.8 mm)
Package weight	20.5 oz (580 g)
Logistics data
Master (outer) case gross weight	12.7 lbs (5.78 kg)
Products per master (outer) case	10 pc(s)
Master (outer) case width	19.7" (500.4 mm)
Master (outer) case length	1" (25.4 mm)
Master (outer) case height	21.7" (551.2 mm)
Master (outer) case GTIN (EAN/UPC)	10037332277524
Other features
Master (outer) case GTIN (EAN/UPC)	10037332277524
