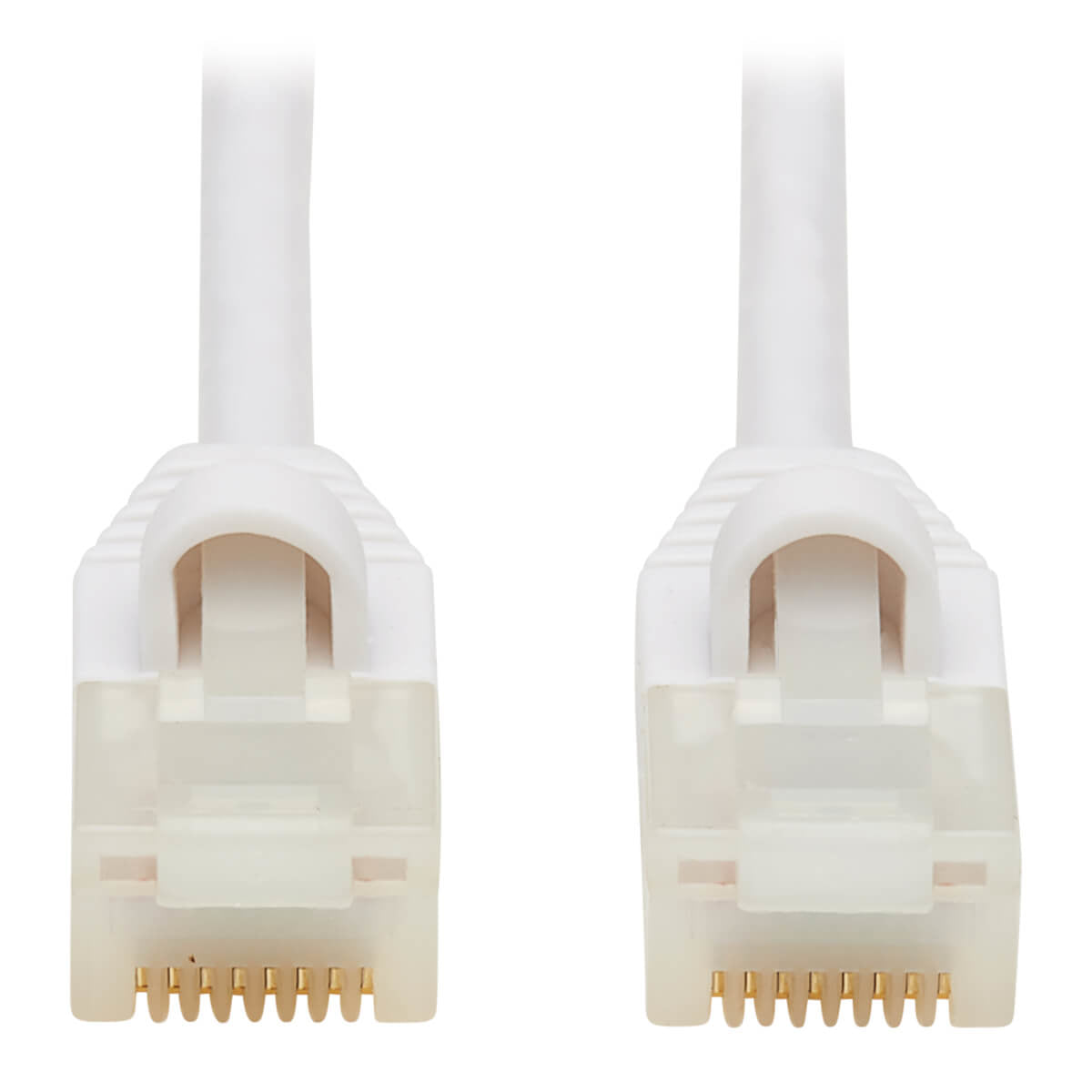

N261AB-S06-WH - Tripp Lite CAT6A CABLE ANTIBACTERIAL SLIM M/M 6FT

Cat6a Cable Ideal for Connecting Equipment in Your 10G Ethernet Network This Cat6a Ethernet cable (M/M) with RJ45 connectors transmits 10 Gbps data, voice and video through high-speed 10G equipment, including network switches, modems, servers, routers, adapters, hubs and patch panels, in high-density data centers. Designed for fast transmission and excellent signal quality, this Cat6a cable ensures peak performance throughout your local area network (LAN). Provides Extra Protection Against Certain Bacteria The connectors and PVC jacket are constructed using an antibacterial material that is effective in inhibiting the growth of Escherichia coli (E. coli) and Staphylococcus aureus (staph).This added protection makes this cable an ideal solution for medical facilities, schools, businesses, restaurants/kitchens and anywhere else that needs extra protection against bacteria. Special Slim Design for Better Airflow and Easier Installation This 10G cable is more than 38% smaller in diameter than standard Cat6a cable. This increases airflow in tight spaces, which helps keep your equipment cool and properly functioning. It also cuts down on clutter in crowded racks and patch panels, and makes the cable easier to install around corners and through cable management panels. Snagless RJ45 Male Connectors Keep Tabs Intact During Installation The RJ45 connectors’ snagless design protects the locking tabs from being damaged or broken off during installation. Integral strain relief gives the cable extra flexibility, reduces stress and helps the cable move freely without cracking or breaking loose from the connector. Premium Construction for Superior Performance Manufactured from 28 AWG copper wire, the four-pair stranded cable is rated for speeds up to 10 Gbps. The RJ45 connectors improve near-end crosstalk (NEXT) performance to 500 MHz and feature 3-micron gold plating to help ensure the most accurate signal transfer possible. White Jacket Helps Avoid Misidentification That Can Cause Costly Downtime The cable has a white PVC jacket, which is easy to identify quickly in a crowded patch panel or switch and helps prevent the cable from becoming accidentally disconnected.



Specification:



Technical details
Product colour	White
Cable standard	Cat6a
Cable shielding	U/UTP (UTP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Data transfer rate	10000 Mbit/s
Jacket material	Polyvinyl chloride (PVC)
Conductor type	Stranded
Cable length	83.9" (2.13 m)
Country of origin	Taiwan
Sustainability certificates	RoHS
Certificates
Certification	REACH
Features
Product colour	White
Snagless cable boot	Yes
Country of origin	Taiwan
Conductor material	Copper
Frequency	500 MHz
AWG wire size	28
Cable standard	Cat6a
Cable shielding	U/UTP (UTP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Data transfer rate	10000 Mbit/s
Jacket material	Polyvinyl chloride (PVC)
Conductor type	Stranded
Certification	REACH
Cable length	83.9" (2.13 m)
Cable shape	Round
Harmonized System (HS) code	84733080
Connector 2 gender	Male
Connector 1 gender	Male
Operational conditions
Storage temperature (T-T)	-15 - 60 °C
Storage relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	0 - 90%
Weight & dimensions
Outer diameter	0.15" (3.8 mm)
Packaging data
Package width	7" (177.8 mm)
Package depth	0.5" (12.7 mm)
Package height	9" (228.6 mm)
Package weight	1.76 oz (50 g)
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case gross weight	16.9 oz (480 g)
Products per master (outer) case	10 pc(s)
Master (outer) case width	16" (406.4 mm)
Master (outer) case length	1" (25.4 mm)
Master (outer) case height	18" (457.2 mm)
Master (outer) case GTIN (EAN/UPC)	10037332260472
Other features
Master (outer) case GTIN (EAN/UPC)	10037332260472
