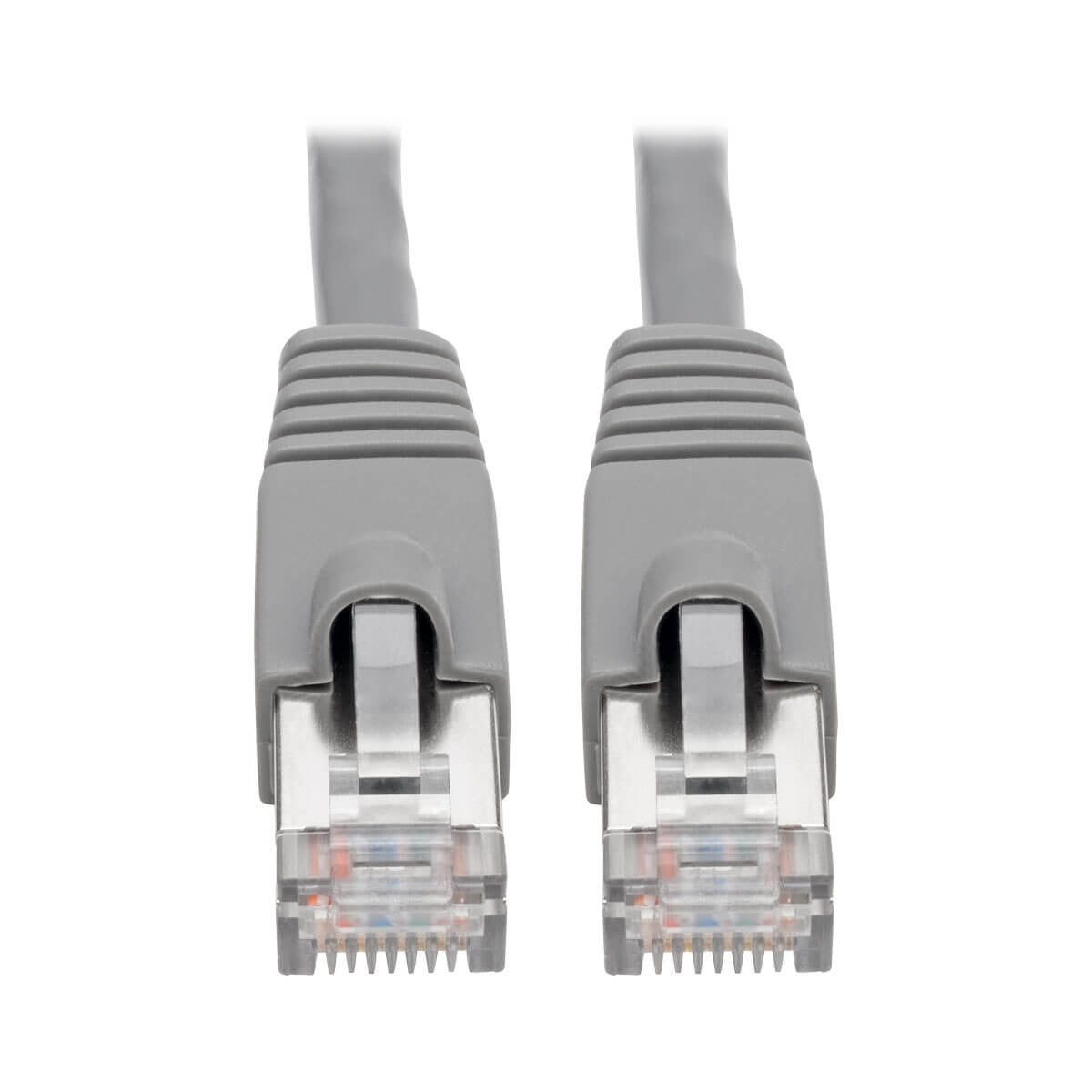

N262-010-GY - Tripp Lite AUGMENTED CAT6 (CAT6A) SHIELDED (STP) SNAGLESS 10G CERTIFIED PATCH CABLE, (RJ45

The N262-010-GY Cat6a 10G-Certified Snagless Shielded STP Network Patch Cable (RJ45 M/M) is recommended for transmitting 10 Gbps data, voice and video through high-speed 10G equipment, including network switches, modems, routers, adapters, hubs and patch panels. It also connects PoE devices, such as VoIP phones, security cameras and point-of-sale kiosks. Designed for fast transmission and excellent signal quality, this 10-ft. (3.05 m) gray cable ensures peak performance throughout your local area network (LAN). It reduces impedance and structural return loss compared to standard 100 MHz wire. Premium shielding protects your Ethernet network from disruptive EMI/RFI line noise that can distort or destroy data. Manufactured from 26 AWG copper wire and protected by a rugged PVC jacket, the four-pair stranded N262-010-GY minimizes near-end crosstalk (NeXT) levels. The RJ45 connectors' snagless design protects the locking tabs from being damaged or broken off during installation. Integral strain relief with ridges on each end gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking. Each N262-010-GY cable has been tested and certified using Fluke test equipment. It supports IEEE 802.3af, is DTE power compliant, is ETL/UL certified, and is compatible with T568A/T568B wiring. Recommended for Making Cat6a 10G Ethernet Network Connections Ideal for connecting network switches, modems, routers, adapters, hubs and patch panels in high-density data centers Compatible with PoE devices, such as VoIP phones, security cameras and point-of-sale kiosks Ensures peak performance throughout your LAN Reduces impedance and structural return loss compared to standard 100 MHz wire Snagless RJ45 Male Connectors Molded snagless boots prevent locking tabs from damage during installation Integral strain relief protects cable and connectors from stress and cracking Premium Construction for Superior Performance High-quality 26 AWG 4-pair stranded copper wire Minimal near-end crosstalk ensures a strong signal Rugged PVC jacket stands up to long-term use EMI/RFI shielding protects network from disruptive line noise Tested and Certified Using Trusted Fluke Equipment Supports IEEE 802.3af DTE power compliant ETL/UL certified Compatible with T568A/T568B wiring



Specification:



Technical details
Product colour	Aqua color
Cable standard	Cat6a
Cable shielding	S/UTP (STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Data transfer rate	10000 Mbit/s
Networking standards	IEEE 802.3at
Jacket material	Polyvinyl chloride (PVC)
Conductor type	Stranded
Cable length	144.1" (3.66 m)
Country of origin	China
Sustainability certificates	RoHS
Certificates
Certification	REACH
Features
Product colour	Aqua color
Snagless cable boot	Yes
Country of origin	China
Frequency	500 MHz
AWG wire size	26
Cable standard	Cat6a
Cable shielding	S/UTP (STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Data transfer rate	10000 Mbit/s
Networking standards	IEEE 802.3at
Jacket material	Polyvinyl chloride (PVC)
Conductor type	Stranded
Certification	REACH
Cable length	144.1" (3.66 m)
Harmonized System (HS) code	8544.42.2000
Connector 2 gender	Male
Connector 1 gender	Male
Operational conditions
Storage temperature (T-T)	-15 - 60 °C
Storage relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	0 - 90%
Weight & dimensions
Outer diameter	0.244" (6.2 mm)
Packaging data
Package width	7" (177.8 mm)
Package depth	0.5" (12.7 mm)
Package height	9" (228.6 mm)
Package weight	5.64 oz (160 g)
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case gross weight	3.51 lbs (1.59 kg)
Products per master (outer) case	10 pc(s)
Master (outer) case width	16" (406.4 mm)
Master (outer) case length	1" (25.4 mm)
Master (outer) case height	18" (457.2 mm)
Master (outer) case GTIN (EAN/UPC)	10037332256765
Harmonized System (HS) code	8544.42.2000
Other features
Master (outer) case GTIN (EAN/UPC)	10037332256765
