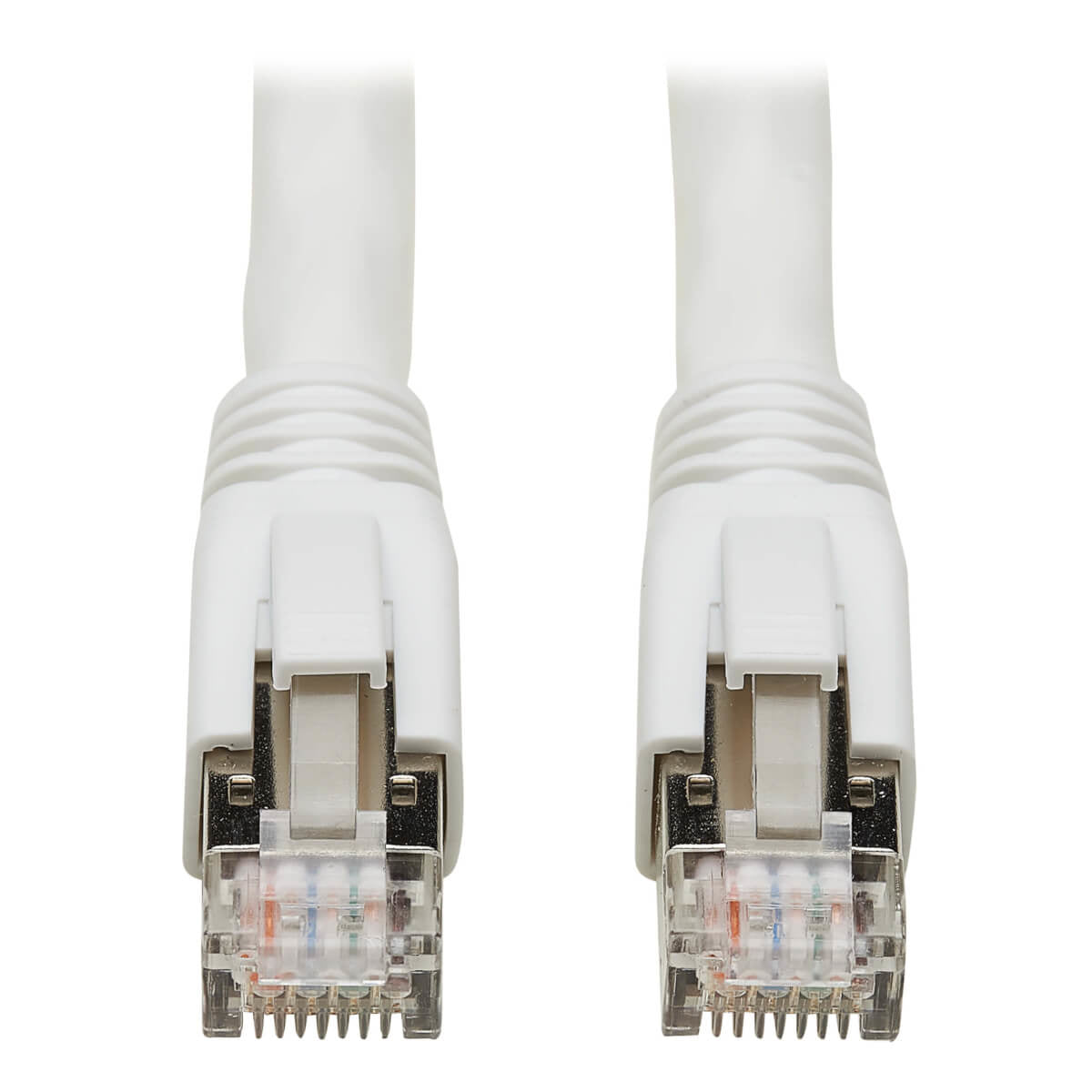

N272-025-WH - Tripp Lite CAT8 PATCH CABLE 25G/40G SNAGLESS 25FT

High-Speed Cat8 S/FTP Ethernet Cable Up to 4 Times Faster Than Cat6a This certified Cat8 cable transmits 40 Gbps data, voice and audio/video through high-speed 40G equipment, including network switches, modems, routers, adapters, hubs and patch panels. Not only is its 40 Gbps data transfer speed four times that of Cat6a cable, but this Cat8 cable also supports bandwidth up to 2 GHz (2000 MHz) for carrying information and streaming video with no lag. Supports Power over Ethernet (PoE) to Cut Down on Power Supplies Because this Cat8 shielded cable supports PoE, it can supply the power to operate compatible PoE devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices. This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. You can also install PoE devices in locations distant from power outlets, such as high on walls, ceilings or poles. Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better EMI (electromagnetic interference) and RFI (radio frequency interference) line noise is a common cause of performance problems. The 22 AWG S/FTP (shielded foiled twisted pair) cable’s foil shielding blocks disruptive line noise that can disturb your electronics and inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer. Near-end crosstalk (NEXT) levels are practically eliminated, so you don’t have to worry about keeping your cables separated in crowded pathways or spend valuable time on field testing. Snagless RJ45 Male Connectors Add Extra Protection During Installation The RJ45 connectors’ snagless design protects the locking tabs from being damaged or broken off during installation. Integral strain relief provides extra flexibility, reduces stress and helps the cable move freely without cracking or breaking loose from the connector. Color-Coded to Avoid Misidentification That Can Cause Costly Downtime This Cat8 patch cable features a durable white PVC jacket. The color-coding allows easy, fast identification in a crowded rack, patch panel or workstation, preventing the cable from becoming accidentally disconnected.



Specification:



Technical details
Product colour	White
Cable standard	Cat8
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Data transfer rate	40000 Mbit/s
Networking standards	IEEE 802.3bt
Jacket material	Polyvinyl chloride (PVC)
Conductor type	Solid
Cable length	359.8" (9.14 m)
Country of origin	Taiwan
Sustainability certificates	RoHS
Certificates
Certification	REACH
Features
Product colour	White
Snagless cable boot	Yes
Country of origin	Taiwan
AWG wire size	22
Cable standard	Cat8
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Data transfer rate	40000 Mbit/s
Networking standards	IEEE 802.3bt
Jacket material	Polyvinyl chloride (PVC)
Conductor type	Solid
Certification	REACH
Cable length	359.8" (9.14 m)
Harmonized System (HS) code	8544.42.2000
Connector 2 gender	Male
Connector 1 gender	Male
Operational conditions
Storage temperature (T-T)	-15 - 60 °C
Storage relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	0 - 90%
Weight & dimensions
Outer diameter	0.315" (8 mm)
Packaging data
Package width	10" (254 mm)
Package depth	0.5" (12.7 mm)
Package height	12" (304.8 mm)
Package weight	24 oz (680 g)
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case gross weight	12.9 lbs (5.86 kg)
Master (outer) case width	14" (355.6 mm)
Master (outer) case length	14" (355.6 mm)
Master (outer) case height	8" (203.2 mm)
Master (outer) case GTIN (EAN/UPC)	10037332256369
Other features
Master (outer) case GTIN (EAN/UPC)	10037332256369
