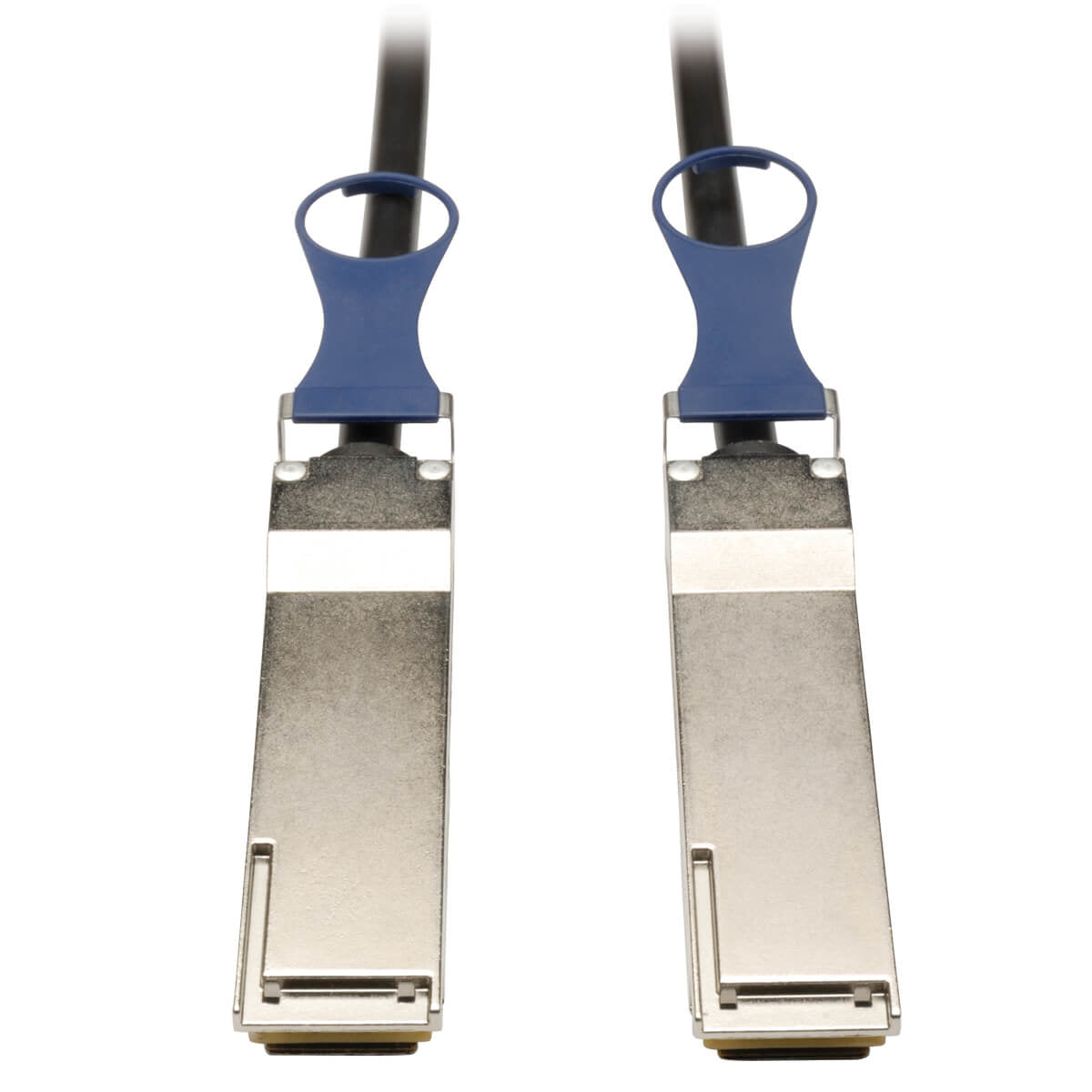

N282-02M-BK - Tripp Lite 2M QSFP+ TO QSFP+ 40GB PASSIVE DAC COPPER INFINIBAND CABLE 6FT

2 Meter QSFP+ tp QSFP+ 40Gb Passive DAC Copper Infiniband cable Meets or Exceeds strict 40-Gigabit Ethernet 40GBase-CR4 standards SDR, DDR, and QDR Compatible QSFP+ to QSFP+ 30AWG SFF-8436 compliant cable and connector Up to 10.3125 Gbps transfer rate per channel ( 40Gb aggregate ) Multi-platform support for 40Gb, SAS, Fibre Channel, and SONET Zinc die-cast QSFP+ connectors with "Pull-to-Release" latching Fully compliant to latest QSFP+ MSA ( Multi Source Agreement ) Lower port cost and reduced power budget vs Fiber Optics RoHS, SFF-8436, and IEEE 802.3ba Compliant BER better than 10¹²



Specification:



Technical details
Connector 1	QSFP+
Connector 2	QSFP+
Cable length	118.1" (3 m)
Sustainability certificates	REACH, RoHS
Master (outer) case GTIN (EAN/UPC)	10037332193169
Features
Connector 1	QSFP+
Connector 2	QSFP+
Cable length	118.1" (3 m)
Data transfer rate	100 Gbit/s
Certification	MSA SFF-8665, IEEE 802.3bj
Country of origin	China
Harmonized System (HS) code	85447000
Product colour	Black
Connector 2 gender	Male
Connector 1 gender	Male
Data transmission
Data transfer rate	100 Gbit/s
Certificates
Certification	MSA SFF-8665, IEEE 802.3bj
Weight & dimensions
Cable length	118.1" (3 m)
Package width	14" (355.6 mm)
Package depth	0.5" (12.7 mm)
Package height	17" (431.8 mm)
Package weight	13.8 oz (390 g)
Packaging data
Package width	14" (355.6 mm)
Package depth	0.5" (12.7 mm)
Package height	17" (431.8 mm)
Package weight	13.8 oz (390 g)
Logistics data
Master (outer) case width	18.1" (459.7 mm)
Master (outer) case length	13.8" (350.5 mm)
Master (outer) case height	9.1" (231.1 mm)
Master (outer) case gross weight	8.6 lbs (3.9 kg)
Products per master (outer) case	10 pc(s)
