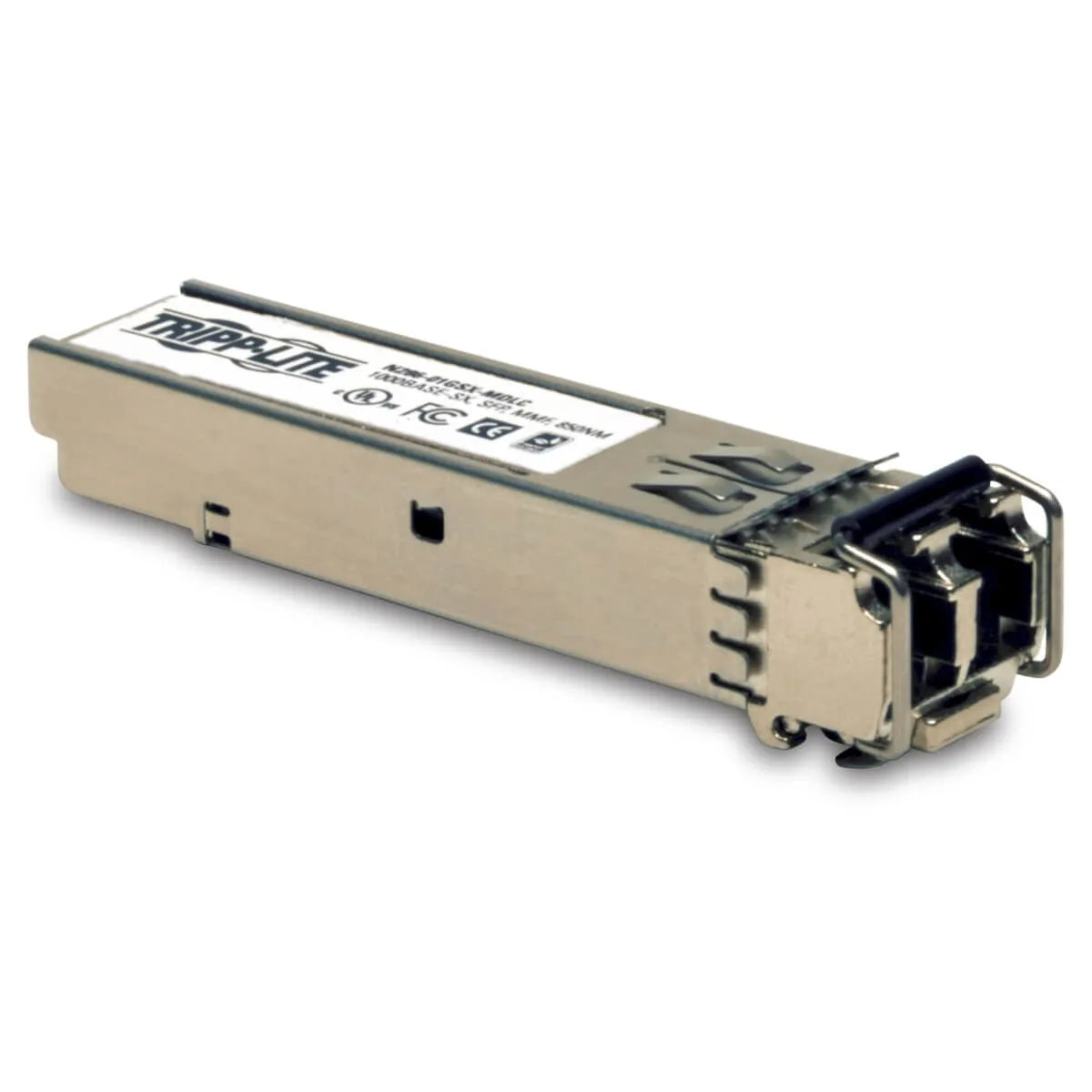

N286-01GSX-MDLC - Tripp Lite SFP TRANSCEIVER MM FIBER CISCO GLC-SX-MMD COMPATIBLE 1000BASE-SX 550M LC
N286-01GSX-MDLC - Tripp Lite SFP TRANSCEIVER MM FIBER CISCO GLC-SX-MMD COMPATIBLE 1000BASE-SX 550M LC
SKU:N286-01GSX-MDLC
Regular price
$144.40 USD
Regular price
Sale price
$144.40 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Tripp Lite N286-01GSX-MDLC, SFP+ (mini-GBIC) transceiver module, is designed for use with Cisco networking equipment, and is functionally equivalent to Cisco part number GLC-SX-MMD=. This transceiver is manufactured to meet or exceed the specifications of the original Cisco unit, and to comply with Multi Source Agreement (MSA) standards. Tripp Lite guarantees 100% compatibility with Cisco networking hardware, and will initialize and perform identically to an OEM transceiver. See "Features" tab for a list of most common Cisco devices used with this model transceiver. Cisco switch compatible...Comparable to GLC-SX-MMD= Compliant with SFP Multi-Source Agreement (MSA) standards 1000Base-SX transceiver supports data transfer rates up to 1.25Gbps 300 meter transmission distance using 62.5/125 Multimode cabling 500 meter transmission distance using 50/125 Multimode cabling 850nm wavelength VCSEL Laser Duplex LC Connector Electrical interface compliant with SFF-8431 Supports Digital Diagnostic Monitoring (DDM) Hot-pluggable
Specification:
| Network | |
|---|---|
| SFP transceiver type | Fiber optic |
| Interface type | SFP+ |
| Maximum data transfer rate | 1000 Mbit/s |
| Fiber optic connector | LC |
| Cabling technology | 1000Base |
| Performance | |
| Country of origin | China |
| Product colour | Metallic |
| SFP transceiver type | Fiber optic |
| Interface type | SFP+ |
| Maximum data transfer rate | 1000 Mbit/s |
| Fiber optic connector | LC |
| Maximum transfer distance | 21653.5" (550 m) |
| Wavelength | 850 nm |
| Fiber cable diameters supported (core/cladding) | 50/125 µm |
| Cabling technology | 1000Base |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | SX |
| Harmonized System (HS) code | 8517.62.0090 |
| Features | |
| Country of origin | China |
| Product colour | Metallic |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 0.52" (13.2 mm) |
| Depth | 2.24" (56.9 mm) |
| Height | 0.331" (8.4 mm) |
| Weight | 0.705 oz (20 g) |
| Package depth | 1.77" (45 mm) |
| Package width | 4.49" (114 mm) |
| Package height | 0.85" (21.6 mm) |
| Package weight | 1.06 oz (30 g) |
| Packaging data | |
| Package depth | 1.77" (45 mm) |
| Number of products included | 1 pc(s) |
| Package width | 4.49" (114 mm) |
| Package height | 0.85" (21.6 mm) |
| Package weight | 1.06 oz (30 g) |
| Manual | Yes |
| Technical details | |
| Sustainability certificates | RoHS |
| Master (outer) case GTIN (EAN/UPC) | 10037332197440 |
| Packaging content | |
| Number of products included | 1 pc(s) |
| Manual | Yes |
| Logistics data | |
| Master (outer) case width | 9.06" (230.1 mm) |
| Master (outer) case length | 5.12" (130 mm) |
| Master (outer) case height | 2.95" (74.9 mm) |
| Master (outer) case gross weight | 15.2 oz (430 g) |
| Products per master (outer) case | 10 pc(s) |
