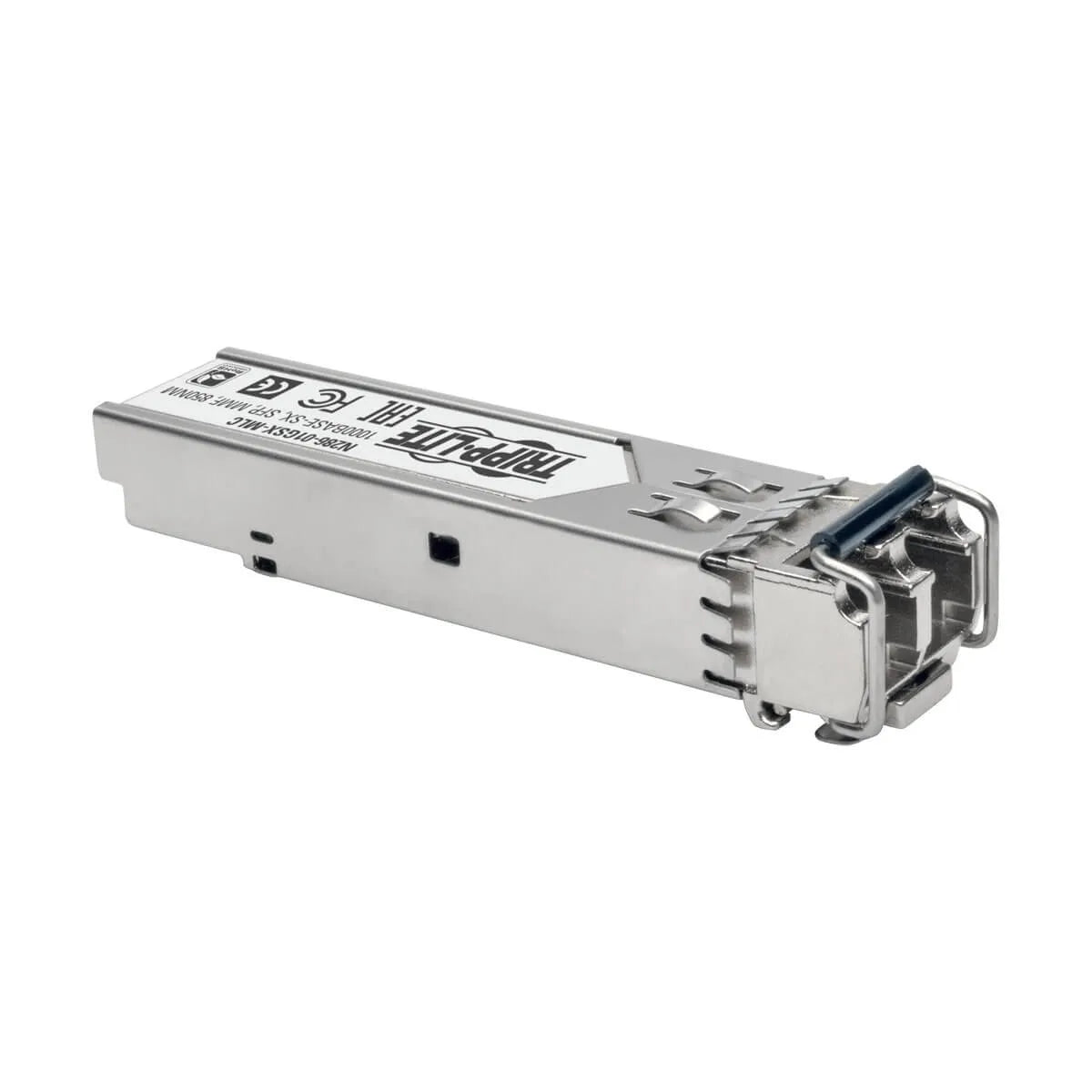

N286-01GSX-MLC - Tripp Lite HP J4858C COMPATIBLE SFP TRANSCEIVER 1000BASE-SX LC DDM MMF

The N286-01GSX-MLC HP J4858C Compatible 1000Base-SX LC SFP Transceiver with an LC female connector functions just like the HP J4858C transceiver module and is designed to operate with HP networking equipment. It also meets or exceeds the J4858C€™s original specifications and complies with MSA (Multi-Source Agreement) standards. This 1000Base-SX transceiver is fully hot-pluggable, so you can install it without shutting down the network or rebooting your device. It supports data transfer rates up to 1 Gbps with 850 nm wavelength signaling. It transmits across 1,804 feet (550 meters) of 50/125 MMF cabling or 722 feet (220 meters) of 62.5/125 MMF cabling. The N286-01GSX-MLC also supports digital diagnostics monitoring (DDM), so you can monitor optical output power, optical input power, temperature, laser bias current and transceiver supply voltage. 1000Base-SX Transceiver with LC Connector Hot-pluggable for installation without rebooting or shutting down Data transfer rates up to 1 Gbps Transmits up to 1,804 ft. (550 m) with 50/125 MMF cabling Transmits up to 722 ft. (220 m) with 62.5/125 MMF cabling 850 nm wavelength signaling Supports DDM Designed for Use with HP Networking Equipment Functionally equivalent to HP J4858C Meets or exceeds J4858C specs Complies with MSA standards



Specification:



Network
SFP transceiver type	Copper
Interface type	SFP+
Maximum data transfer rate	1000 Mbit/s
Performance
Country of origin	China
Product colour	Metallic
Hot-Plug support	Yes
Brand compatibility	Cisco
SFP transceiver type	Copper
Interface type	SFP+
Maximum data transfer rate	1000 Mbit/s
Maximum transfer distance	3937" (100 m)
Single-mode fiber (SMF) supported	No
Multi-mode fiber (MMF) supported	No
Harmonized System (HS) code	85369010
Features
Country of origin	China
Product colour	Metallic
Hot-Plug support	Yes
Brand compatibility	Cisco
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 85%
Weight & dimensions
Width	5.2" (132 mm)
Depth	22.4" (569 mm)
Height	3.31" (84 mm)
Weight	0.705 oz (20 g)
Package depth	2.2" (55.9 mm)
Package width	4.6" (116.8 mm)
Package height	1.1" (27.9 mm)
Package weight	1.76 oz (50 g)
Packaging data
Package depth	2.2" (55.9 mm)
Number of products included	1 pc(s)
Package width	4.6" (116.8 mm)
Package height	1.1" (27.9 mm)
Package weight	1.76 oz (50 g)
Technical details
Sustainability certificates	RoHS
Master (outer) case GTIN (EAN/UPC)	10037332197419
Packaging content
Number of products included	1 pc(s)
Logistics data
Master (outer) case width	10.8" (274.3 mm)
Master (outer) case length	6.5" (165.1 mm)
Master (outer) case height	2.4" (61 mm)
Master (outer) case gross weight	19.4 oz (550 g)
Products per master (outer) case	10 pc(s)
