N286-25G-LR-S - Tripp Lite CISCO-COMPATIBLE SFP-25G-LR-S SFP28 TRANSCEIVER - 25GBASE-SR, SINGLEMODE LC, 131

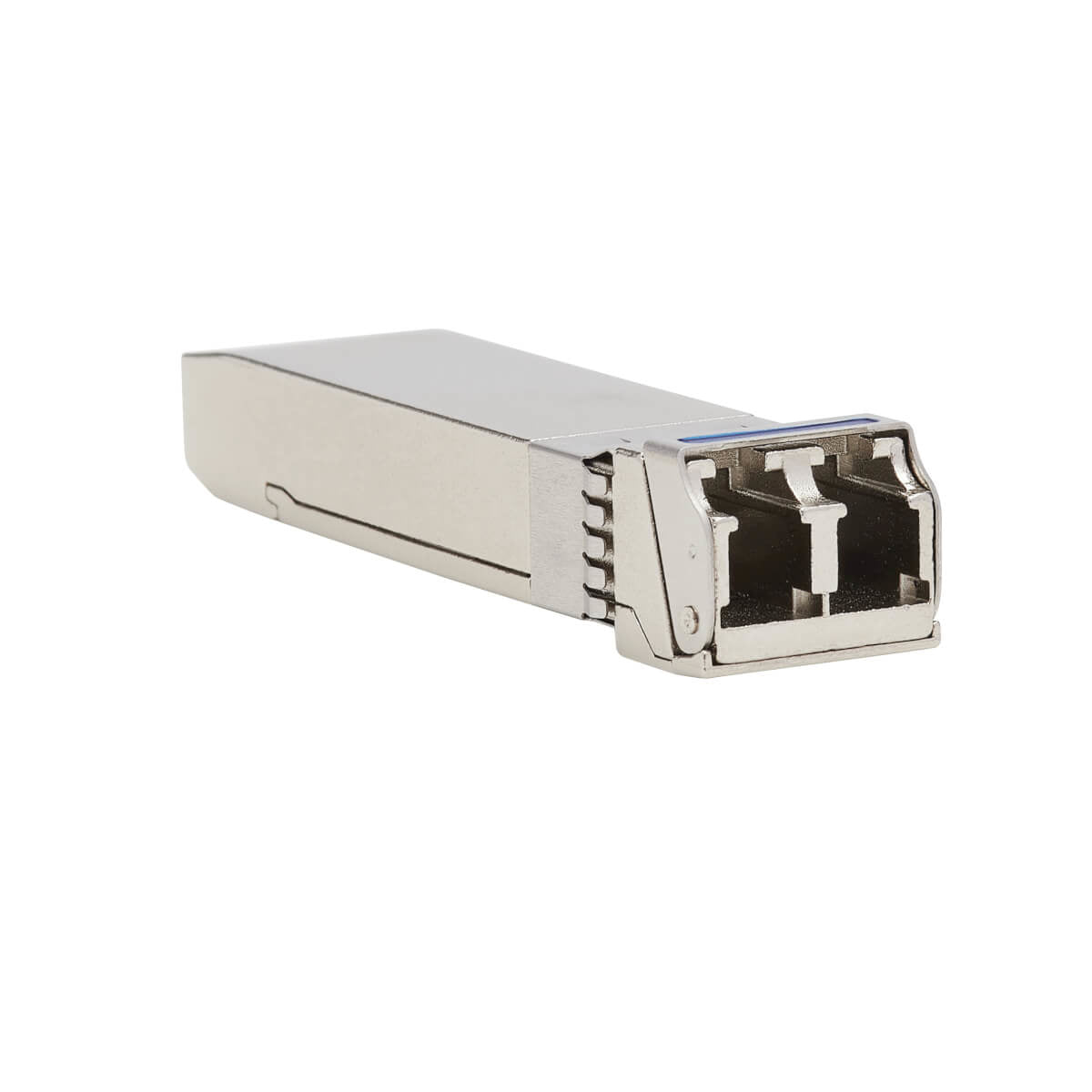

SFP28 Transceiver Designed for Connection to Your Cisco Network Switch or Server This SFP28 transceiver allows you to connect a singlemode fiber optic cable to a 25 Gbps network router, server or switch. It transmits data up to 10 kilometers (6.2 miles) using a 1310 nm wavelength. The zinc housing protects against electromagnetic interference (EMI) and excessive power dissipation. Functionally Equivalent to Cisco SFP-25G-LR-S Transceiver Module The MSA-compliant N286-25G-LR-S functions just like the equivalent Cisco SFP-25G-LR-S transceiver module and is manufactured to meet or exceed Cisco specifications. You can use this transceiver with any compatible Cisco router, server or switch and receive the same performance as the SFP-25G-LR-S. Hot-Swappable for Installation Without Network Interruption This input/output device is fully hot-swappable, so you can install it without a potentially costly 25 Gbps network shutdown or device reboot. Just plug the SFP28 end of the transceiver into your Cisco network device. The other end has an LC duplex connector to link with singlemode fiber optic cable (sold separately). A push/pull tab connector is easily accessible in high-density data center applications and makes the plug-and-play transceiver easy to install and remove with one hand.



Specification:



Network
SFP transceiver type	Fiber optic
Interface type	SFP28
Maximum data transfer rate	25000 Mbit/s
Fiber optic connector	LC
Performance
Country of origin	China
Easy to install	Yes
Product colour	Silver
Hot-swap	Yes
Brand compatibility	Cisco
SFP transceiver type	Fiber optic
Interface type	SFP28
Maximum data transfer rate	25000 Mbit/s
Fiber optic connector	LC
Maximum transfer distance	3937" (100 m)
Wavelength	850 nm
Single-mode fiber (SMF) supported	No
Multi-mode fiber (MMF) supported	Yes
SFP transceiver standard	SR
Harmonized System (HS) code	8517.62.0090
Features
Country of origin	China
Easy to install	Yes
Product colour	Silver
Hot-swap	Yes
Brand compatibility	Cisco
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 85%
Storage relative humidity (H-H)	5 - 85%
Maximum operating temperature	70 °C
Weight & dimensions
Width	0.531" (13.5 mm)
Depth	2.23" (56.6 mm)
Height	0.331" (8.4 mm)
Weight	1.76 oz (50 g)
Package depth	3.1" (78.7 mm)
Package width	5.7" (144.8 mm)
Package height	0.701" (17.8 mm)
Package weight	1.76 oz (50 g)
Packaging data
Package depth	3.1" (78.7 mm)
Number of products included	1 pc(s)
Package width	5.7" (144.8 mm)
Package height	0.701" (17.8 mm)
Package weight	1.76 oz (50 g)
Technical details
Sustainability certificates	RoHS
Master (outer) case GTIN (EAN/UPC)	10037332248463
Packaging content
Number of products included	1 pc(s)
Logistics data
Master (outer) case width	7.3" (185.4 mm)
Master (outer) case length	5.9" (149.9 mm)
Master (outer) case height	4" (101.6 mm)
Master (outer) case gross weight	20.5 oz (580 g)
Products per master (outer) case	10 pc(s)
