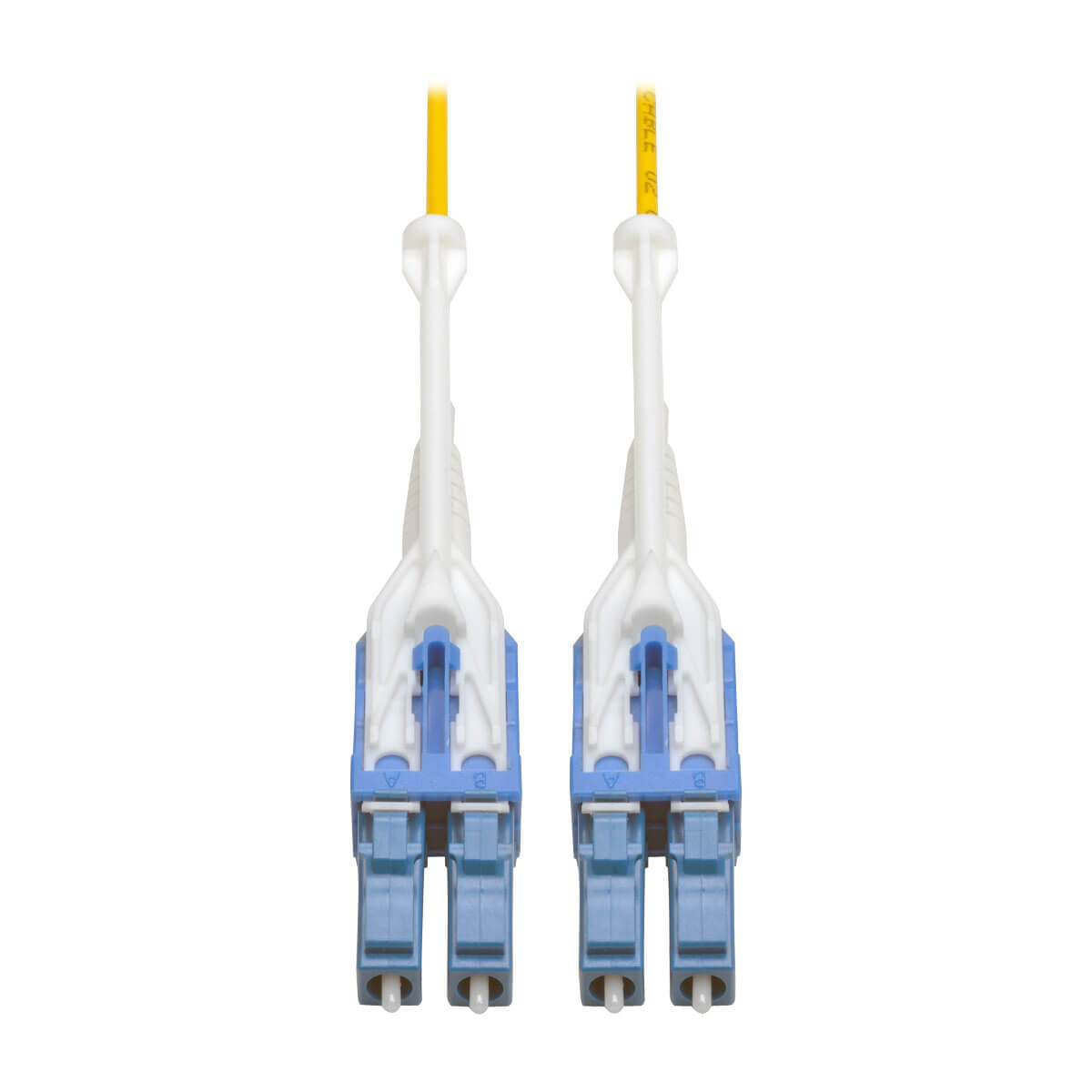

N370-02M-T - Tripp Lite DUPLEX SINGLEMODE 8.3/125 FIBER PATCH CABLE (LC/LC), PUSH/PULL TABS, 2 M (6 FT.)

Fast, Clear Data Transmission Through Your LAN Data transfer speeds up to 10 Gbps Ideal for network equipment that requires singlemode fiber optic patch cables Attenuation loss meets or exceeds latest industry standards LC Connectors with Push/Pull Tabs Push/pull tab connectors easy to install and remove with one hand Sturdy dual LC connectors tested to meet stringent insertion loss standards Superior Construction for Error-Free Signal Transfer 9/125 duplex (zipcord) fiber made from glass Beveled edge on glass ends for easy plug insertion Yellow-colored for identification as singlemode FDDI- and OFNR-rated



Specification:



Technical details
Jacket material	Polyvinyl chloride (PVC)
Fiber mode structure	Single-mode
Connector 1	LC
Connector 2	LC
Cable type	OFNR
Cable length	118.1" (3 m)
Core diameter	8.3 µm
Cladding diameter	125 µm
Number of optical fibres	4
Master (outer) case GTIN (EAN/UPC)	10037332099591
Features
Jacket material	Polyvinyl chloride (PVC)
Fiber mode structure	Single-mode
Connector 1	LC
Connector 2	LC
Cable type	OFNR
Cable length	118.1" (3 m)
Core diameter	8.3 µm
Cladding diameter	125 µm
Country of origin	China
Harmonized System (HS) code	85447000
Product colour	Yellow
Connector 2 gender	Male
Connector 1 gender	Male
Weight & dimensions
Cable length	118.1" (3 m)
Package width	7" (177.8 mm)
Package depth	0.5" (12.7 mm)
Package height	9" (228.6 mm)
Package weight	1.41 oz (40 g)
Packaging data
Package width	7" (177.8 mm)
Package depth	0.5" (12.7 mm)
Package height	9" (228.6 mm)
Package weight	1.41 oz (40 g)
Logistics data
Master (outer) case width	5.9" (149.9 mm)
Master (outer) case length	4" (101.6 mm)
Master (outer) case height	7.3" (185.4 mm)
Master (outer) case gross weight	14.5 oz (410 g)
Products per master (outer) case	10 pc(s)
Other features
Number of optical fibres	4
