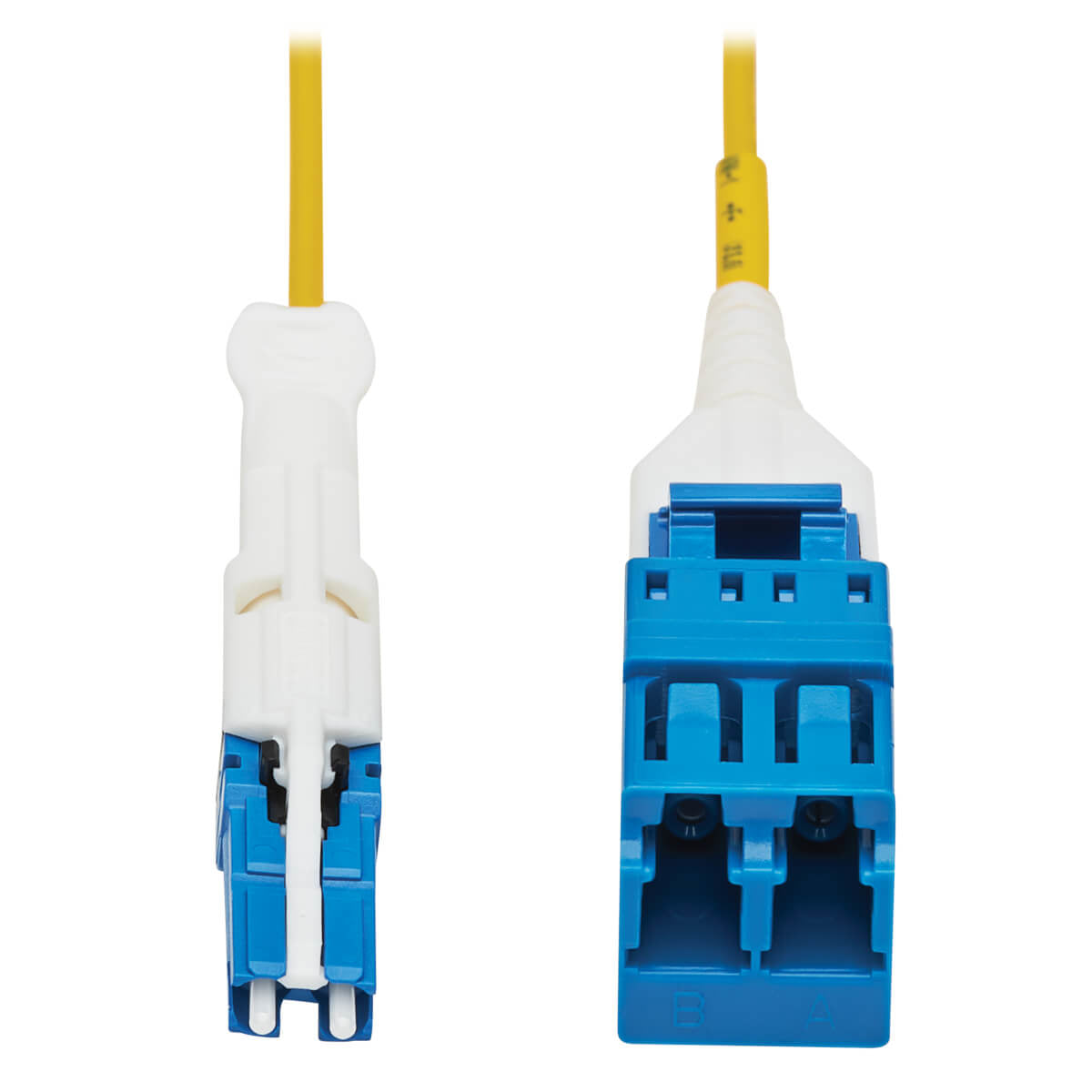

N381L-001-MF - Tripp Lite SMF FIBER CABLE ADAPTER M/F CSUPC LC-UPC

400 GbE Cable Supports Higher Bandwidths Needed for Next-Gen Data Networking As the amount of traffic in data networks grows, so does the need for next-generation devices and fiber cables to support much higher bandwidths in cloud services, hyperscale data centers, telecom applications and equipment OEM companies. This duplex singlemode 9/125 OS2 adapter is an ideal choice for converting LC cabling to CS cabling in 400G Ethernet applications up to two kilometers (at 1310 nm). It is also backward compatible with 40 Gb and 100 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb. Compact CS Connector Designed for the Latest QSFP-DD Transceivers The CS end is 40 percent smaller than a standard LC connector, making it compatible with the latest 400G QSFP-DD transceivers and an excellent solution for high-density network applications. A push/pull tab allows dense vertical stacking in switches or patch panels where space is at a premium and makes the cable easy to install or remove with one hand. Yellow Jacket Helps Avoid Misidentification That Can Cause Costly Downtime The OS2-rated adapter has a yellow jacket, which is easy to identify quickly in a crowded patch panel or switch and helps prevent the cable from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas. It also complies with G657A2 bend-insensitive fiber standards, which allows for easy installation without excessive care when storing the fiber due to the increased bend radius.



Specification:



Technical details
Jacket material	Low smoke zero halogen (LSZH)
Fiber mode structure	Single-mode
Connector 1	CS/UPC
Connector 2	LC/UPC
Cable length	39.4" (1 m)
Full duplex	Yes
Core diameter	8.3 µm
Cladding diameter	125 µm
Insertion loss	0.3 dB
Sustainability certificates	REACH, RoHS
Doesn't contain	Halogen
Master (outer) case GTIN (EAN/UPC)	10037332258042
Features
Bending radius	0.787" (2 cm)
Fibre optic type	OS2
Jacket material	Low smoke zero halogen (LSZH)
Fiber mode structure	Single-mode
Connector 1	CS/UPC
Connector 2	LC/UPC
Cable length	39.4" (1 m)
Full duplex	Yes
Core diameter	8.3 µm
Cladding diameter	125 µm
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Insertion loss	0.3 dB
Data transfer rate	400000 Gbit/s
Country of origin	China
Harmonized System (HS) code	8544.70.0000
Product colour	Yellow
Connector 2 gender	Male
Connector 1 gender	Male
Data transmission
Data transfer rate	400000 Gbit/s
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Weight & dimensions
Bending radius	0.787" (2 cm)
Cable length	39.4" (1 m)
Package width	7" (177.8 mm)
Package depth	0.5" (12.7 mm)
Package height	9" (228.6 mm)
Package weight	0.705 oz (20 g)
Packaging data
Package width	7" (177.8 mm)
Package depth	0.5" (12.7 mm)
Package height	9" (228.6 mm)
Package weight	0.705 oz (20 g)
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case width	5.91" (15 cm)
Master (outer) case length	4.02" (10.2 cm)
Master (outer) case height	7.28" (18.5 cm)
Master (outer) case gross weight	8.11 oz (230 g)
Products per master (outer) case	10 pc(s)
Quantity per pack	1 pc(s)
